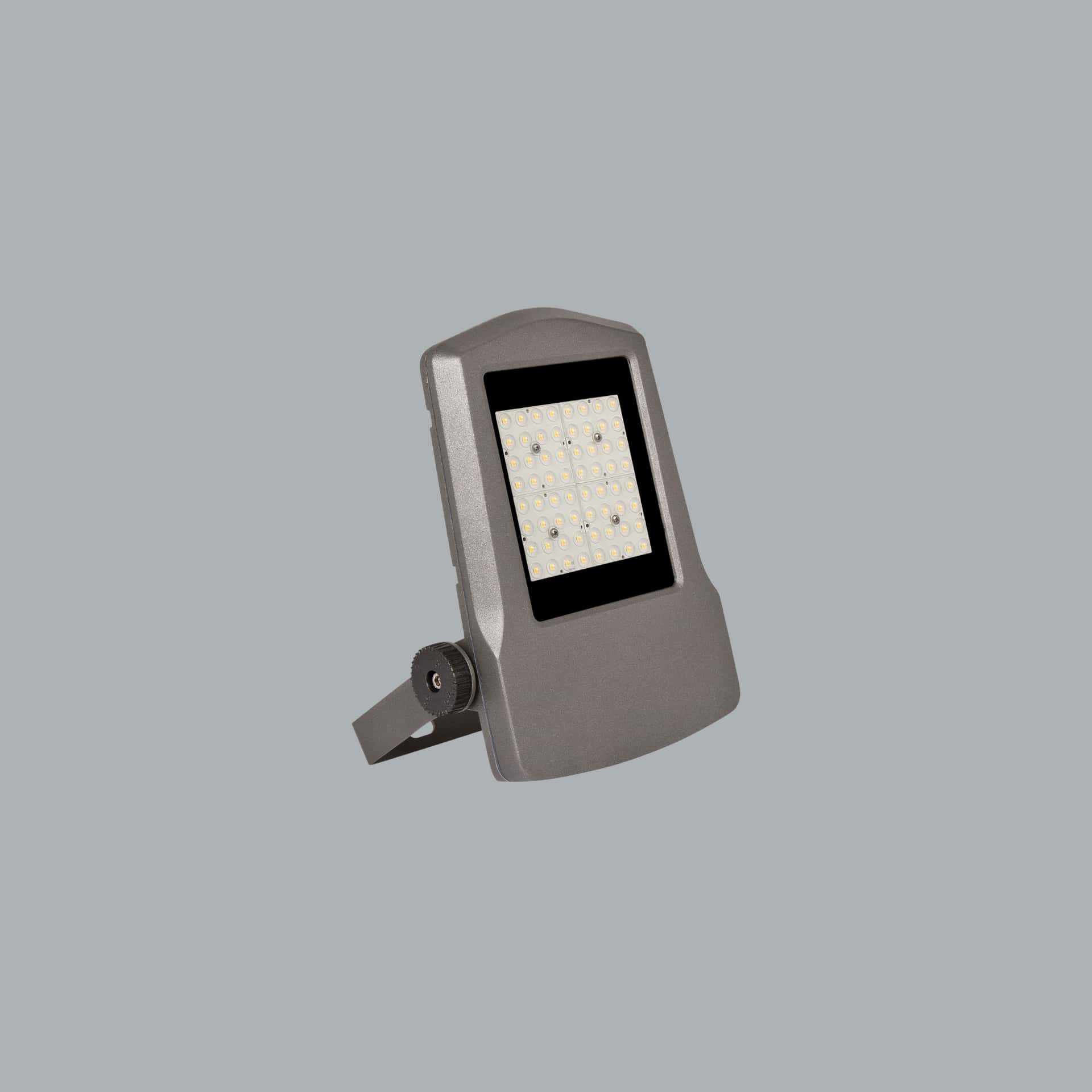

Falcon Mini PR
Falcon Mini PR is an AVOLUX LED lighting fixture in the Floodlight Series category with a power of 20-40W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20-40W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | Lens |
-- LED projector fixture with symmetrical light output.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 40W | CRI>70 | O07.WL.16415. (..) . (...) . (..) . (..) | 2700K | 5260 |
| 3000K | 5377 | |||
| 3500K | 5431 | |||
| 4000K | 5590 | |||
| 5000K | 5645 | |||
| 6500K | 5537 | |||
| CRI>80 | O07.WL.16415. (..) . (...) . (..) . (..) | 2700K | 4738 | |
| 3000K | 5058 | |||
| 3500K | 5111 | |||
| 4000K | 5325 | |||
| 5000K | 5329 | |||
| 6500K | 5217 | |||
| Dynamic White | O07.WL.16415. (..) . (...) . (..) . (..) | 2700K - 6000K | - | |
| RGBW | O07.WL.16415. (..) . (...) . (..) . (..) | RGBW | - |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 40W - 1500mA | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | SP | 20° - Spot |  | 01 | white |
| 20 | 20W - 875mA | 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | M.E. | 25° - Medium |  | 02 | ral 9010 |
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | FL | 49° - Flood |  | 03 | black | ||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | W.F. | 90° - Wide Flood |  | 04 | gray | ||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | T.W. | 2700K - 6000K |  | 06 | special color | |||||
| RGBW | RGBW |

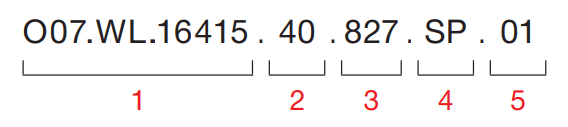

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
Frequently Asked Questions
What is the wattage of Falcon Mini PR?
Falcon Mini PR has a power of 20-40W.
What is the protection class of Falcon Mini PR?
The protection class of Falcon Mini PR is IP66.
Which certifications and standards does Falcon Mini PR have?
Falcon Mini PR carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Falcon Mini PR?
The product (stock) code of Falcon Mini PR is O07.WL.16415.
Where can I download the catalog or PDF of Falcon Mini PR?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/281.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Projekt%C3%B6r/Falcon%20PR.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/Falcon%20Mini%20PR.zip) buttons on this page.
