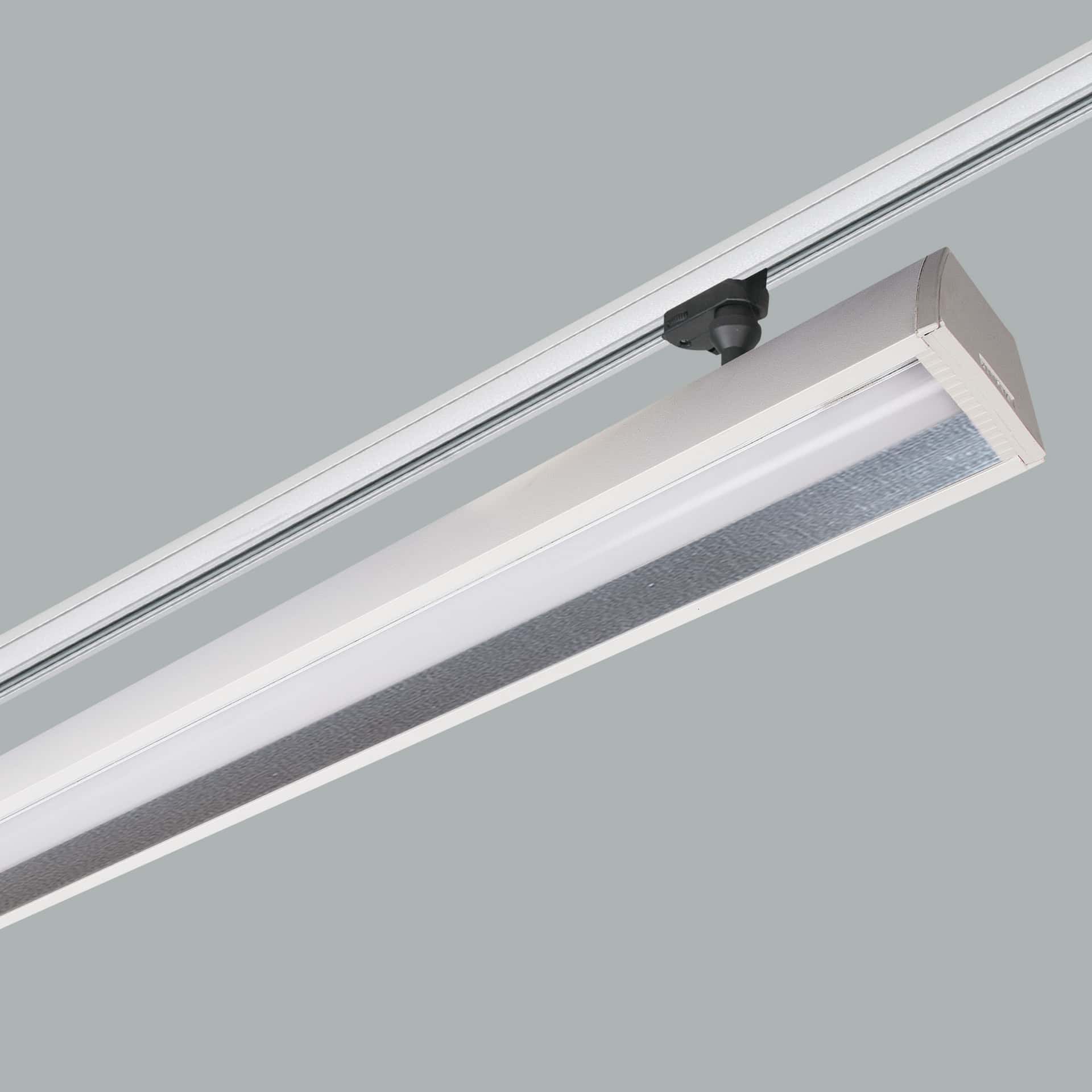

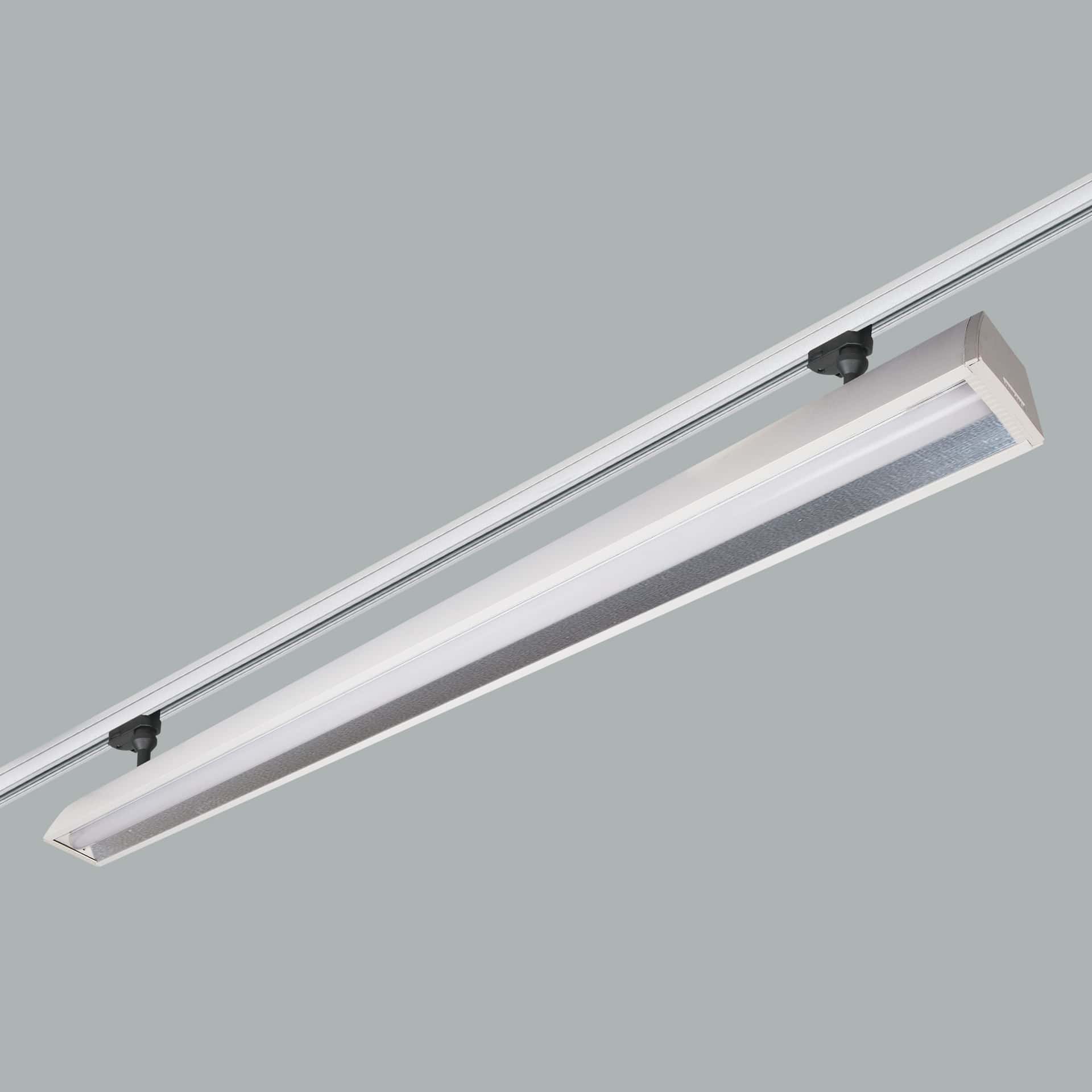

Extrude Track Mounted
Extrude Track Mounted is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 34-51W and IP40 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 34-51W |
| Protection Class | IP40 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 80-60mm |
| Mounting Type | Rail Mounted |
| Armature Data | |
|---|---|
| Product Code | I02.LL.19035 |
| Family Name | extruded |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 80mm |
| Profile Height | 60mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >112lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Length (A) | CRI | Order Code | Kelvin | 1150mm 34W 350mA lm | 1430mm 43W 350mA lm | 1710mm 51W 350mA lm |
|---|---|---|---|---|---|---|
| 1150mm - 34W | CRI>80 | I02.LL.19035 . (...) . (...) . (...) | 2700K | 3505 | 4434 | 5409 |
| 1430mm - 43W | 3000K | 3617 | 4575 | 5582 | ||
| 1710mm - 51W | 3500K | 3674 | 4647 | 5670 | ||
| 4000K | 3814 | 4825 | 5886 | |||
| 5000K | 3870 | 4895 | 5973 | |||
| CRI>90 | I02.LL.19035 . (...) . (...) . (...) | 2700K | 2944 | 3724 | 4544 | |
| 3000K | 3029 | 3831 | 4675 | |||
| 3500K | 3085 | 3902 | 4761 | |||
| 4000K | 3197 | 4044 | 4934 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1150mm | 34W | 34W (Direct) - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 1430mm | 43W | 43W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 1710mm | 51W | 51W (Direct) - 350mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

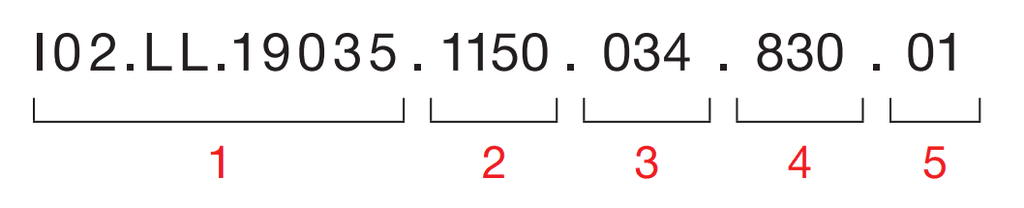

1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Extrude Track Mounted?
Extrude Track Mounted has a power of 34-51W.
What is the protection class of Extrude Track Mounted?
The protection class of Extrude Track Mounted is IP40.
Which certifications and standards does Extrude Track Mounted have?
Extrude Track Mounted carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Extrude Track Mounted?
The product (stock) code of Extrude Track Mounted is I02.LL.19035.
Where can I download the catalog or PDF of Extrude Track Mounted?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/180-181.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/EXTRUDE%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19035.rar) buttons on this page.
