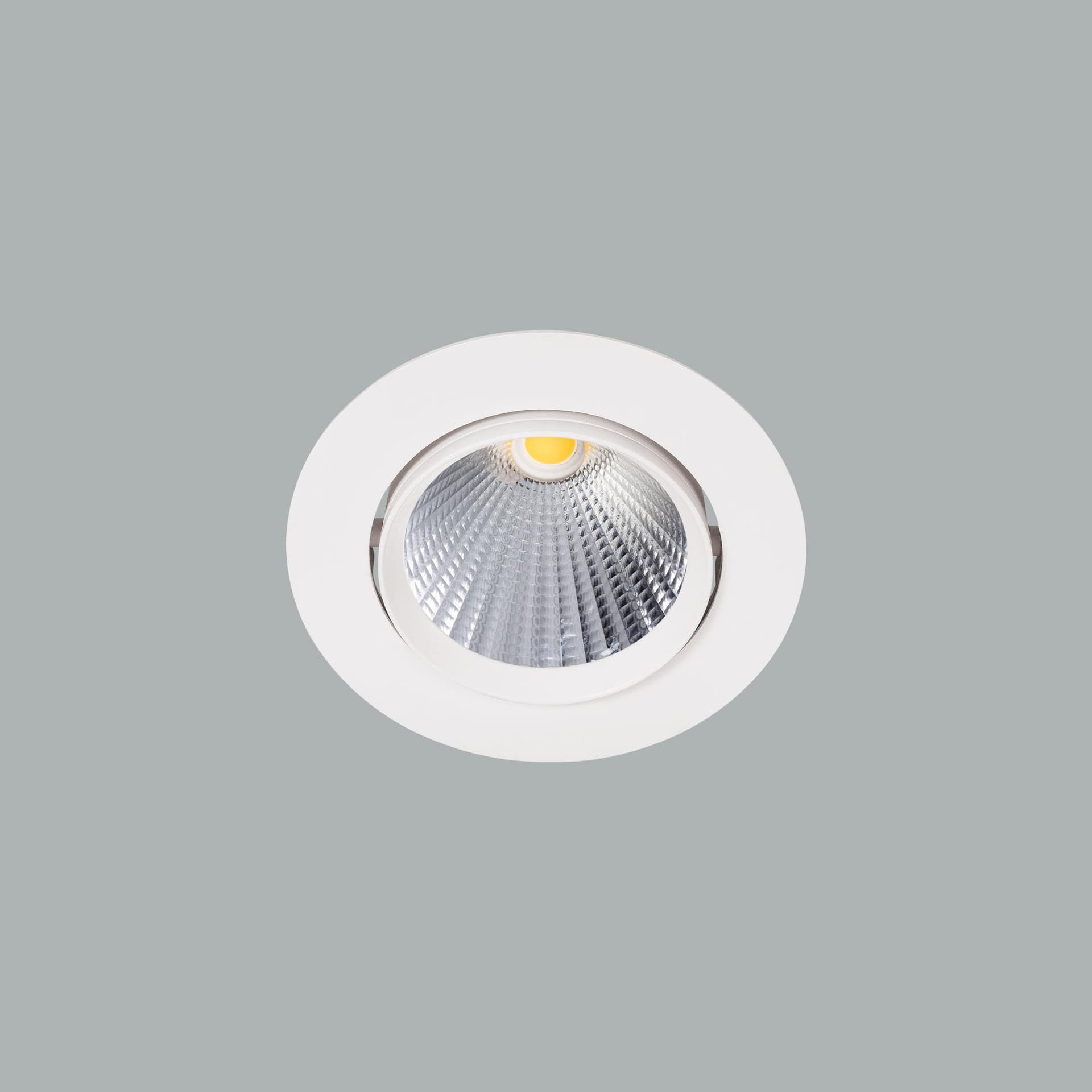

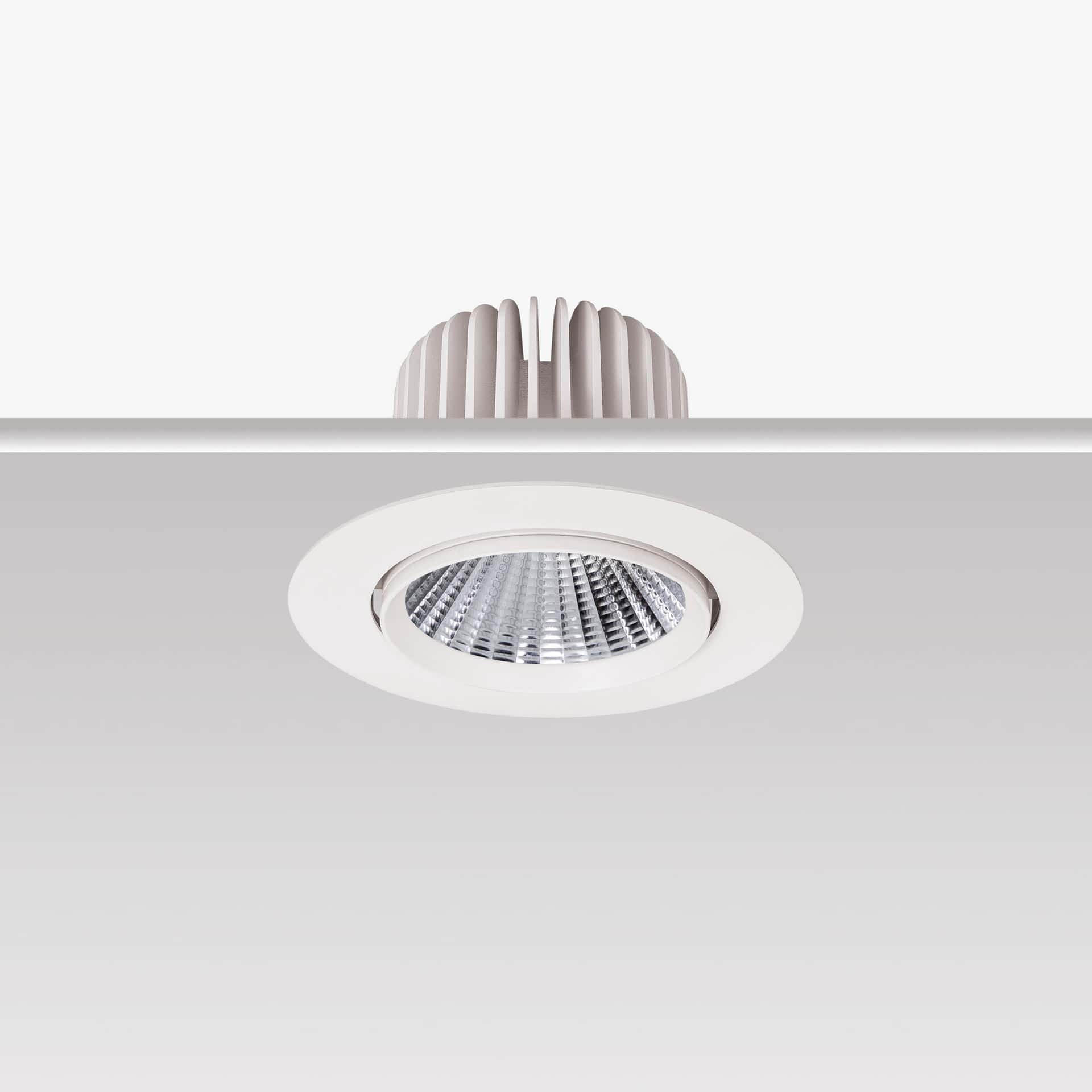

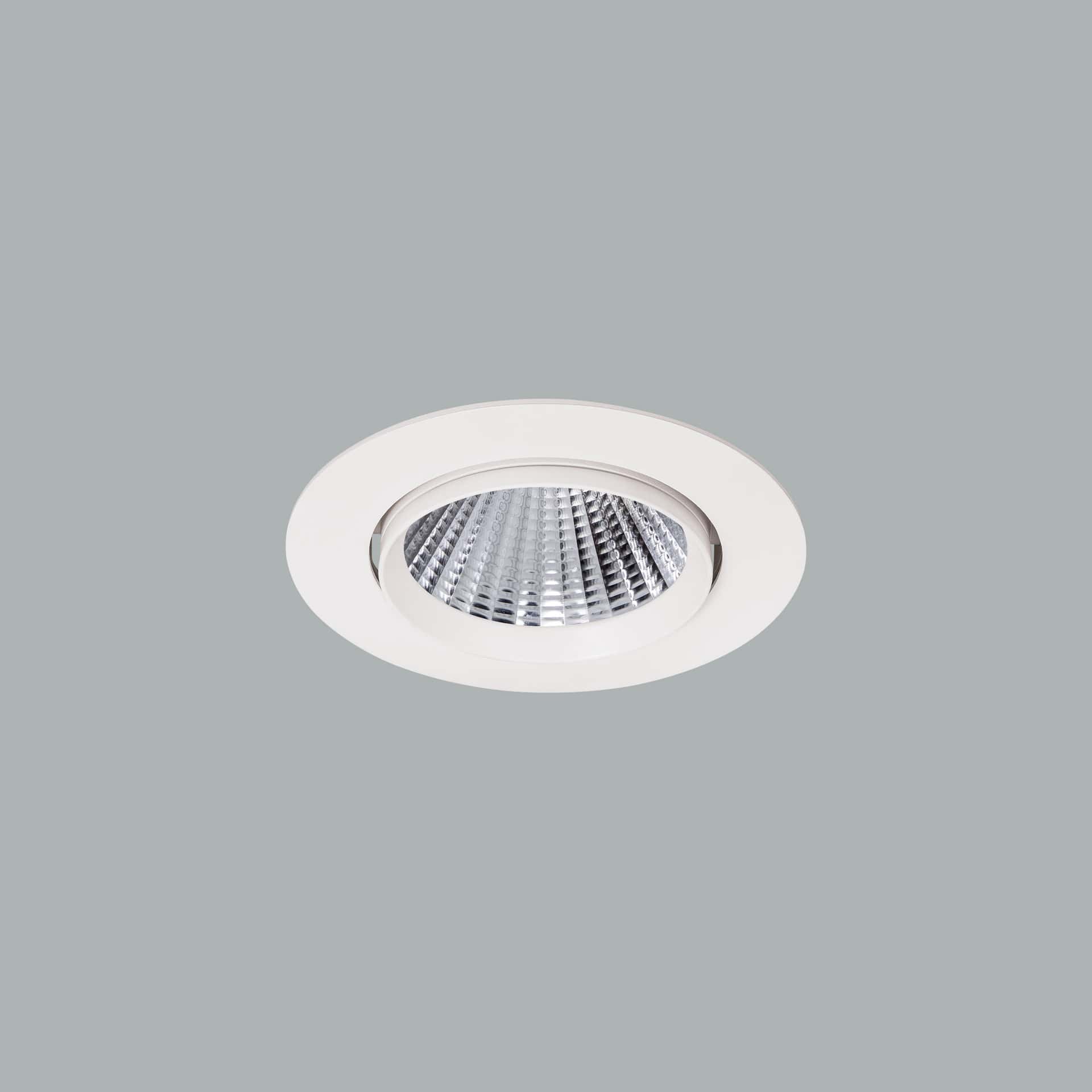

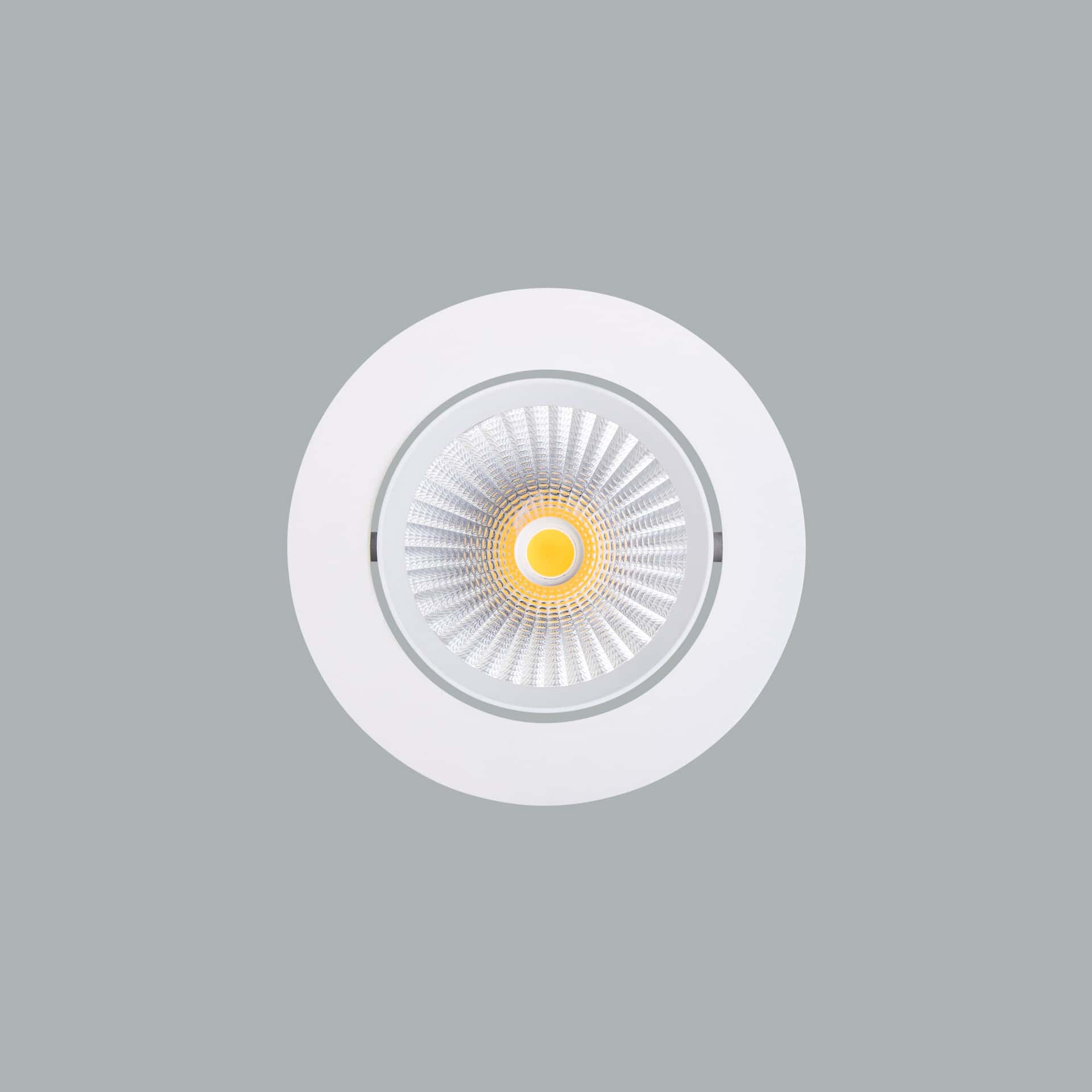

Delta Midi
Delta Midi is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 31W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 31W |
| Protection Class | IP20 |

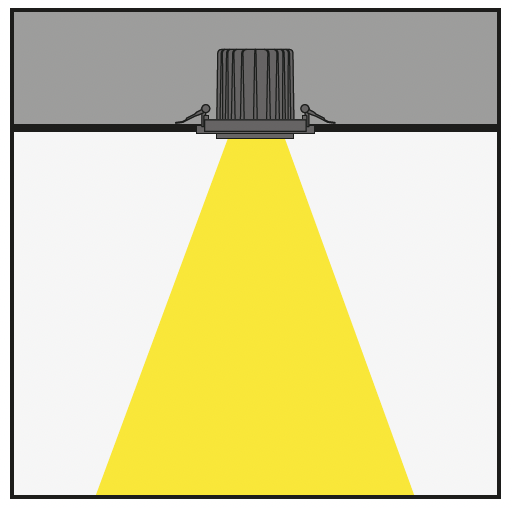

| Shape | built-in |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.

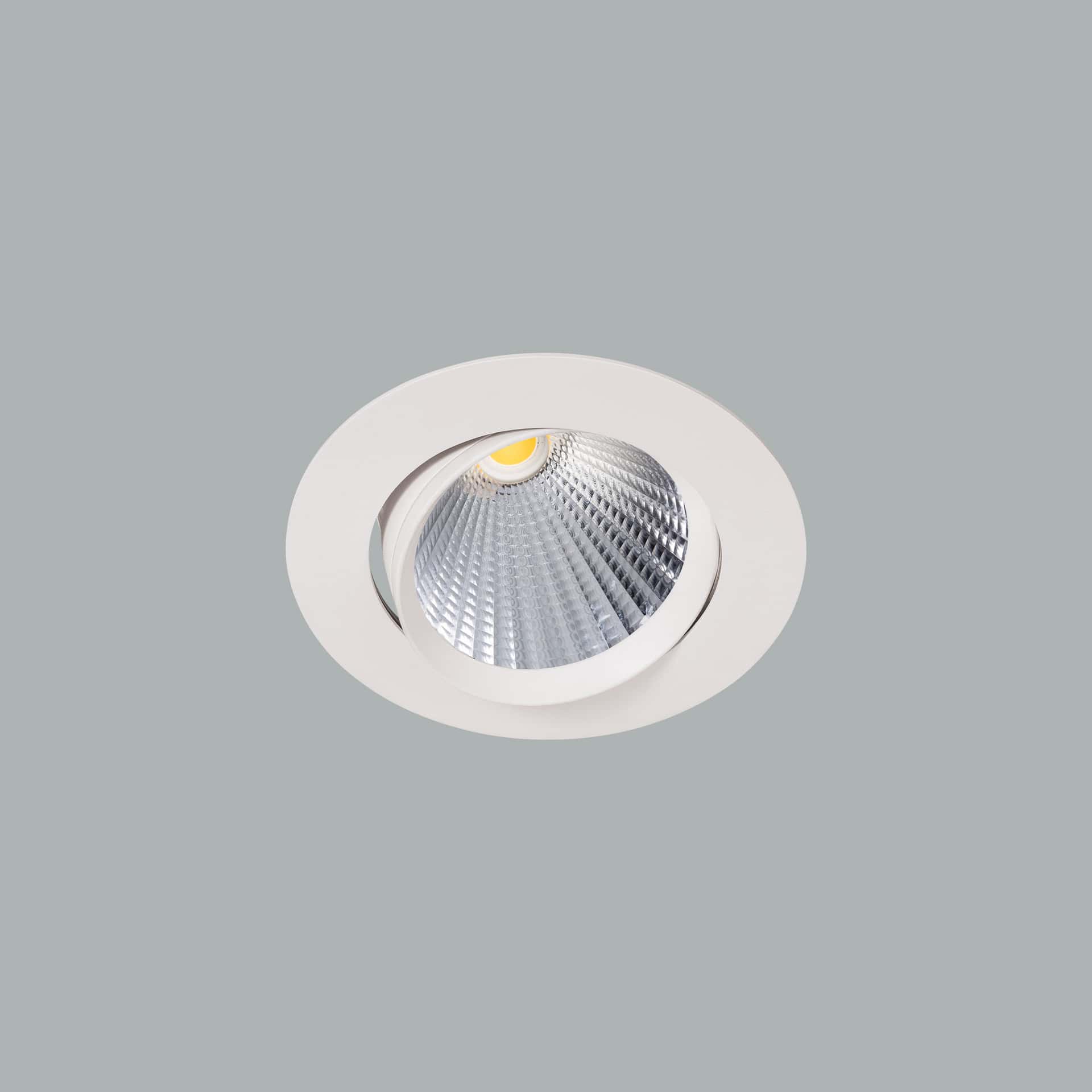

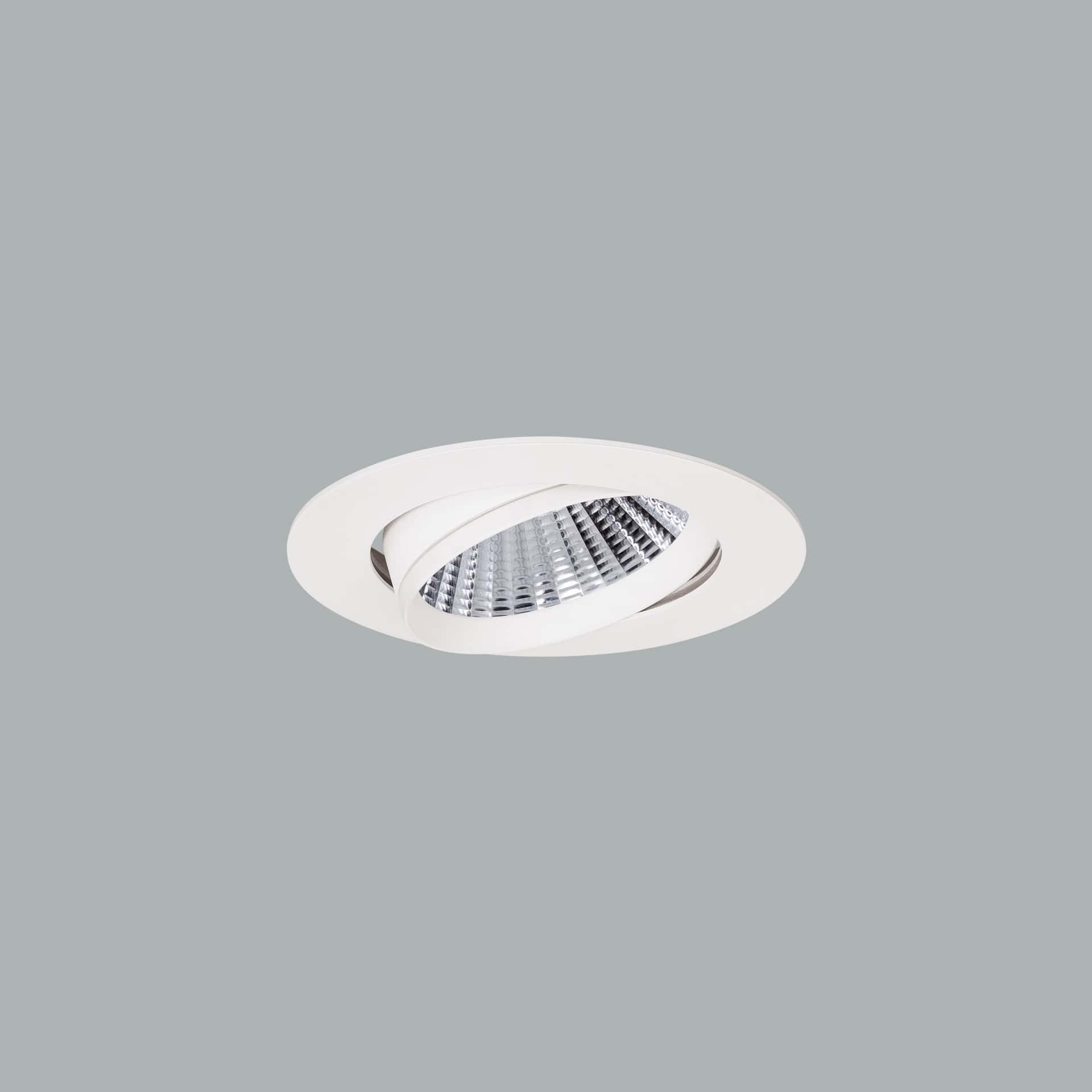

-- Mechanical locking joint system with 30° vertical and 30° horizontal movement capability.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM, Hot DIM and Dynamic White applications, which are high-tech control systems, can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.

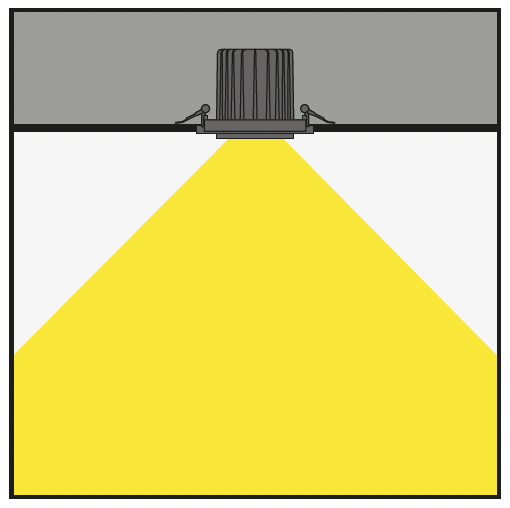

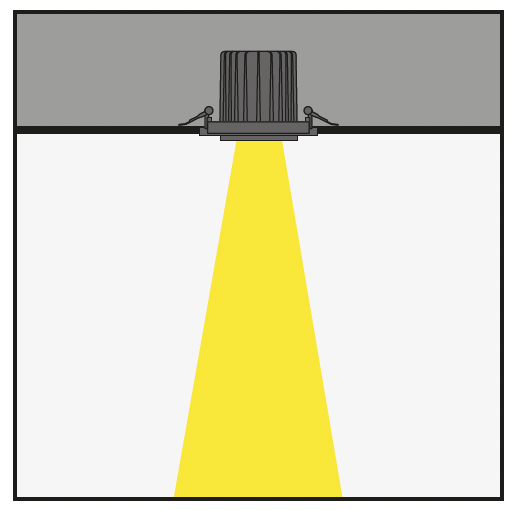

-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 144lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 31W | CRI>80 | I01.MLR.16018 . (..) . (...) . (..) . (..) | 2700K | 3759 |
| 3000K | 3911 | |||
| 3500K | 4048 | |||
| 4000K | 4190 | |||
| 5000K | 4483 | |||
| CRI>90 | I01.MLR.16018 . (..) . (...) . (..) . (..) | 2700K | 3383 | |
| 3000K | 3467 | |||
| 3500K | 3589 | |||
| 4000K | 3715 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.16018 . (..) . (...) . (..) . (..) | 2700K | 2680 | |
| 3000K | 2795 | |||
| 4000K | 2990 | |||
| Meat COB | I01.MLR.16018 . (..) . (...) . (..) . (..) | 1800K | 2164 | |
| Food COB | I01.MLR.16018 . (..) . (...) . (..) . (..) | 2400K | 2227 | |
| Pisces COB | I01.MLR.16018 . (..) . (...) . (..) . (..) | 6600K | 2945 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 31 | 31W - 800mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 20° - Spot |  | 01 | white |
| 28 | 28W - 700mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 35° - Medium |  | 02 | ral 9010 |
| 24 | 24W - 600mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | W.F. | 50° - Wide Flood |  | 03 | black |
| 20 | 20W - 500mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

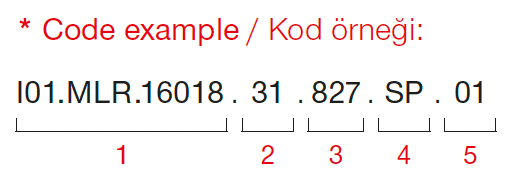

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Delta Midi?
Delta Midi has a power of 31W.
What is the protection class of Delta Midi?
The protection class of Delta Midi is IP20.
Which certifications and standards does Delta Midi have?
Delta Midi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Delta Midi?
The product (stock) code of Delta Midi is I01.MLR.16018.
Where can I download the catalog or PDF of Delta Midi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/394.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/DELTA%20%26%20MINI%20TORRES%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Delta%20Midi%20%20I01.MLR.16018.rar) buttons on this page.
