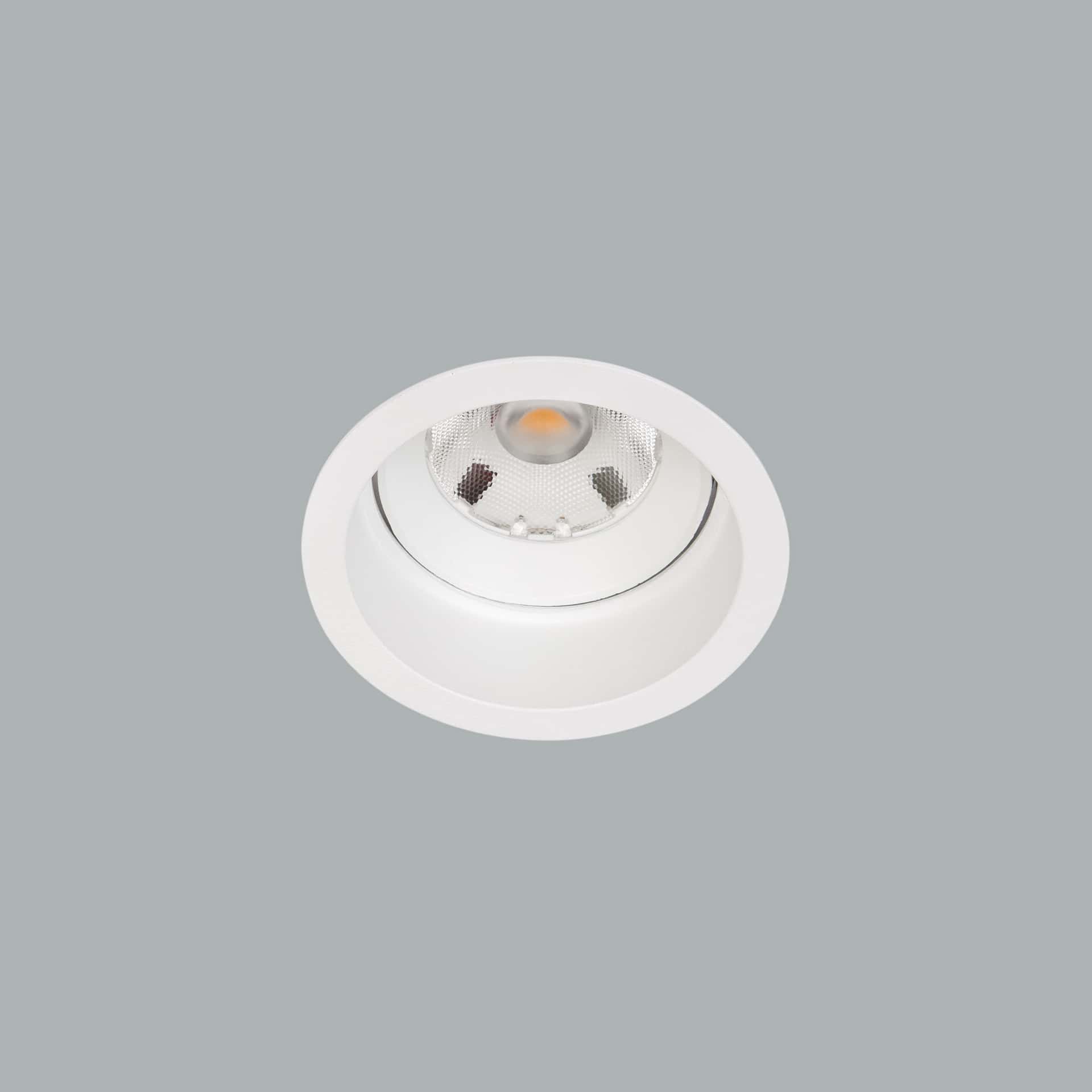

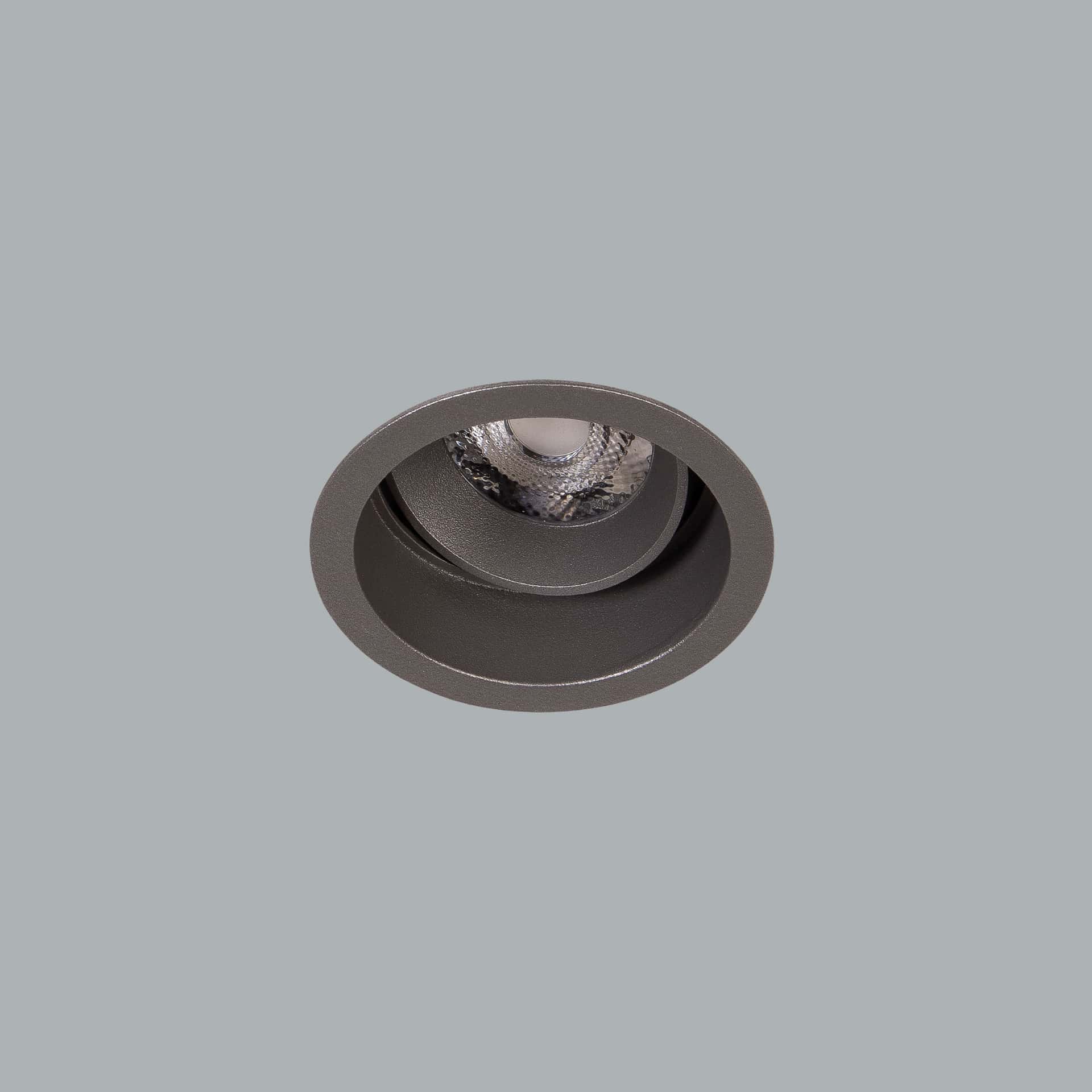

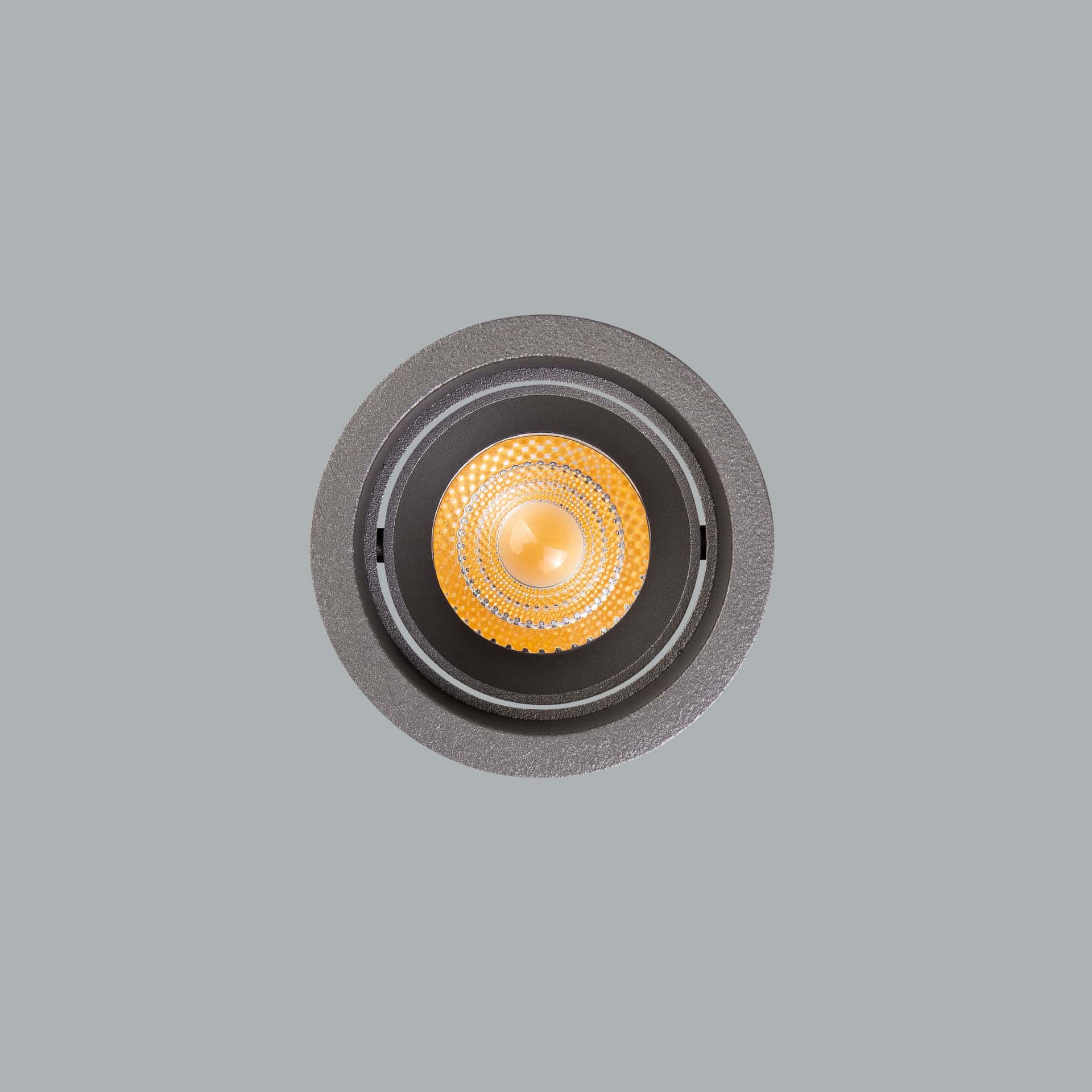

Deepress IP
Deepress IP is an AVOLUX LED lighting fixture in the Recessed Series category with a power of 8-15W and IP65 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 8-15W |
| Protection Class | IP65 |
| Shape | built-in |
| Optical | Lens |

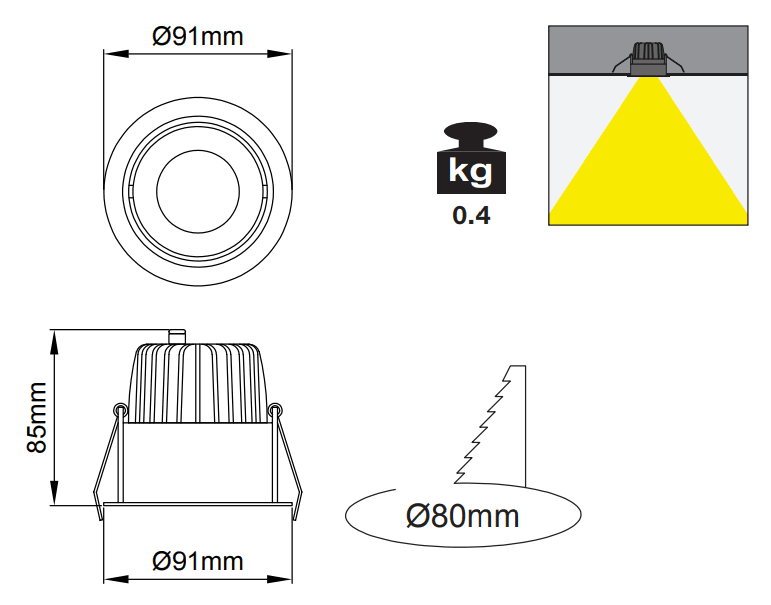

| Diameter | Ø91mm |

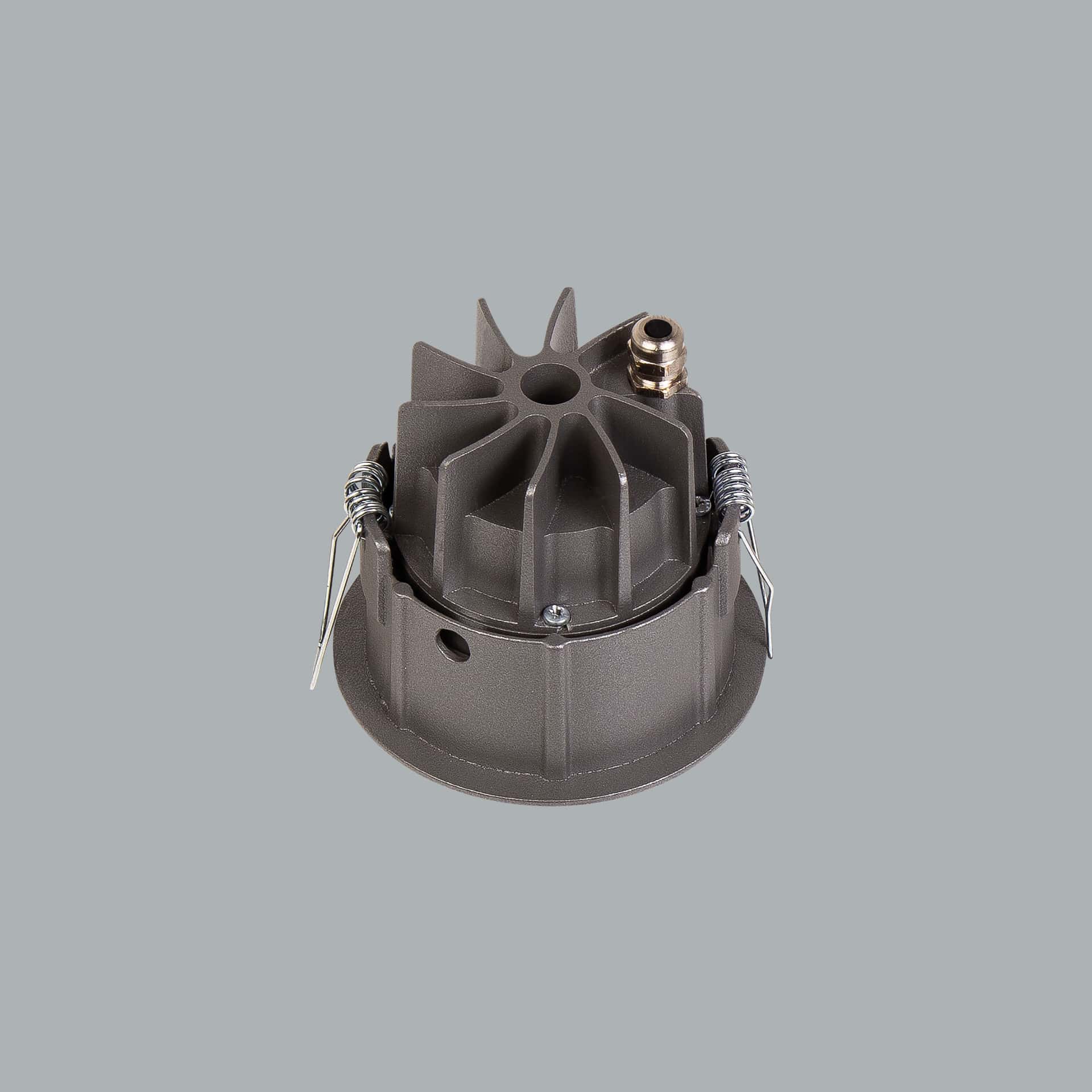

-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 15W | CRI>80 | O07.MLR.34030 . (..) . (...) . (..) . (..) | 2700K | 1653 |
| 3000K | 1819 | |||
| 3500K | 1872 | |||
| 4000K | 1881 | |||
| 5000K | 1889 | |||
| 6500K | X |

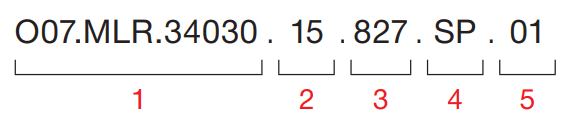

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 15W - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SP | 17° - Spot |  | 01 | white |
| 10 | 10W - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | M.E. | 23° - Medium |  | 02 | ral 9010 |
| 8 | 8W - 180mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | FL | 34° - Flood |  | 03 | black |
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | W.F. | 55° - Wide Flood |  | 04 | gray | ||
 | 05 | dark gray | |||||||||
 | 06 | special color |
1- Product code / Armature code
Frequently Asked Questions
What is the wattage of Deepress IP?
Deepress IP has a power of 8-15W.
What is the protection class of Deepress IP?
The protection class of Deepress IP is IP65.
Which certifications and standards does Deepress IP have?
Deepress IP carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class II, IK08, IP65.
What is the product code of Deepress IP?
The product (stock) code of Deepress IP is O07.MLR.34030.
Where can I download the catalog or PDF of Deepress IP?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/630-631.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Ankastre/Deepress%20IP%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/Deepress%20IP%20-%20O07.MLR.34030.zip) buttons on this page.
