Deepress
Deepress is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 2x15W and IP44 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 2x15W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | Lens |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Mechanical locking with 30° vertical and 0° horizontal movement capability
joint system.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.
-- Narrow, Medium, Wide, Very Wide and Oval Lens angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 121lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 2x15W | CRI>80 | I01.MLR.14036 . (..) . (...) . (..) . (..) | 2700K | 3302 |
| 3000K | 3404 | |||
| 3500K | 3524 | |||
| 4000K | 3642 | |||
| 5000K | 3896 | |||
| CRI>90 | I01.MLR.14036 . (..) . (...) . (..) . (..) | 2700K | 2972 | |
| 3000K | 3064 | |||
| 3500K | 3200 | |||
| 4000K | 3336 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.14036 . (..) . (...) . (..) . (..) | 2700K | 2170 | |
| 3000K | 2250 | |||
| 4000K | 2410 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 2x15W - 350mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SP | 2x20° - Spot |  | 01 | white |
| 10 | 2x10W - 250mA | 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | M.E. | 2x35° - Medium |  | 02 | ral 9010 |
| 7 | 2x7W - 180mA | 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | FL | 2x50° - Flood |  | 03 | black |
| 4 | 2x4W - 100mA | 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | W.F. | 2x70° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | OV | 2x20° x 60° - Oval |  | 05 | dark gray | ||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |

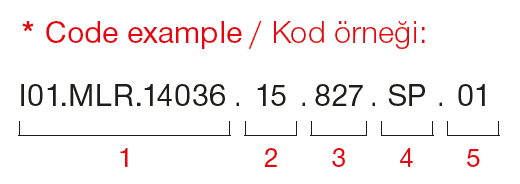

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Deepress?
Deepress has a power of 2x15W.
What is the protection class of Deepress?
The protection class of Deepress is IP44.
Which certifications and standards does Deepress have?
Deepress carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Deepress?
The product (stock) code of Deepress is I01.MLR.14036.
Where can I download the catalog or PDF of Deepress?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/481.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/DEEPRESS%20%26%20DEEPRESS%20SLIM%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/I01.MLR.14036.rar) buttons on this page.
