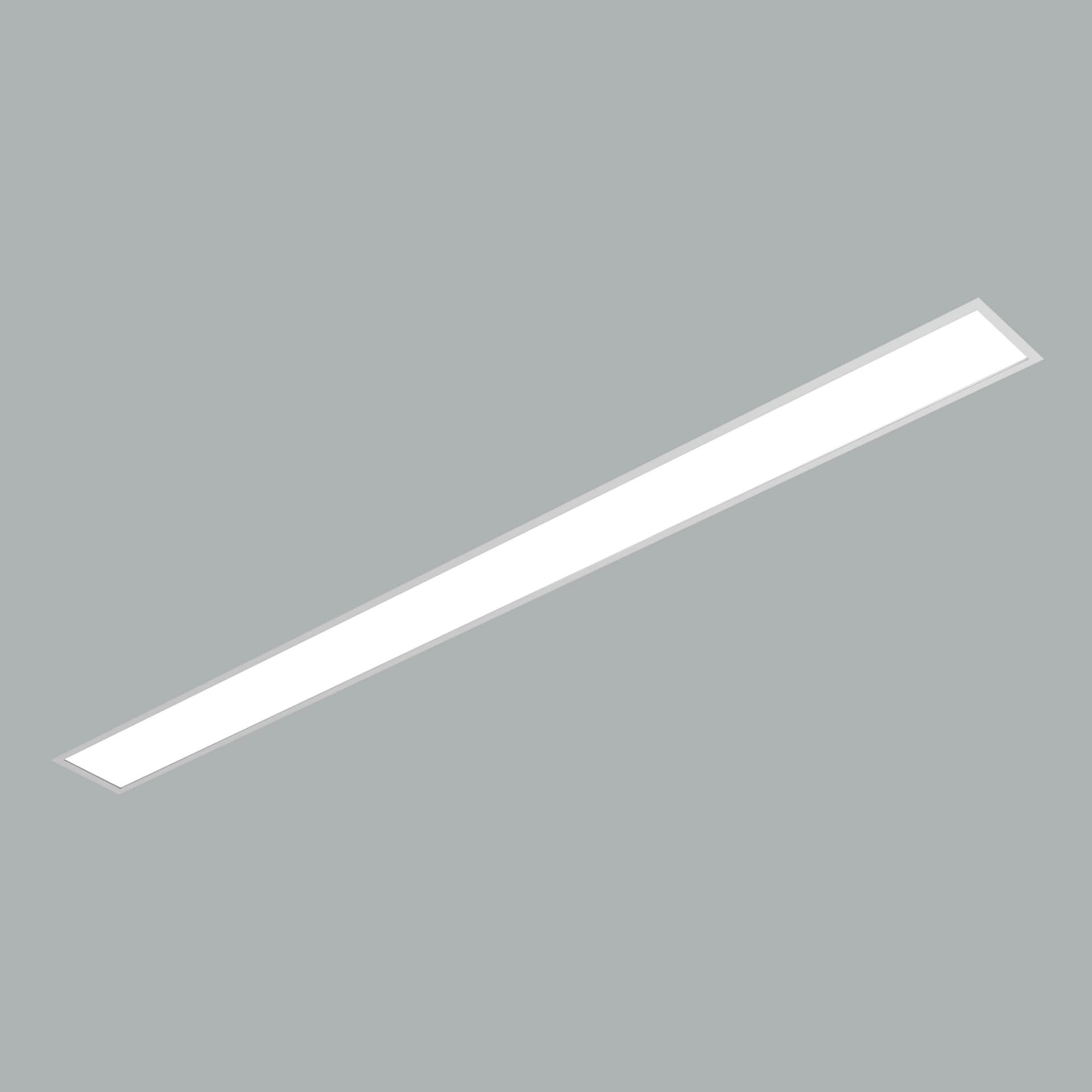

Cubus Recessed
Cubus Recessed is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 20-59W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20-59W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |

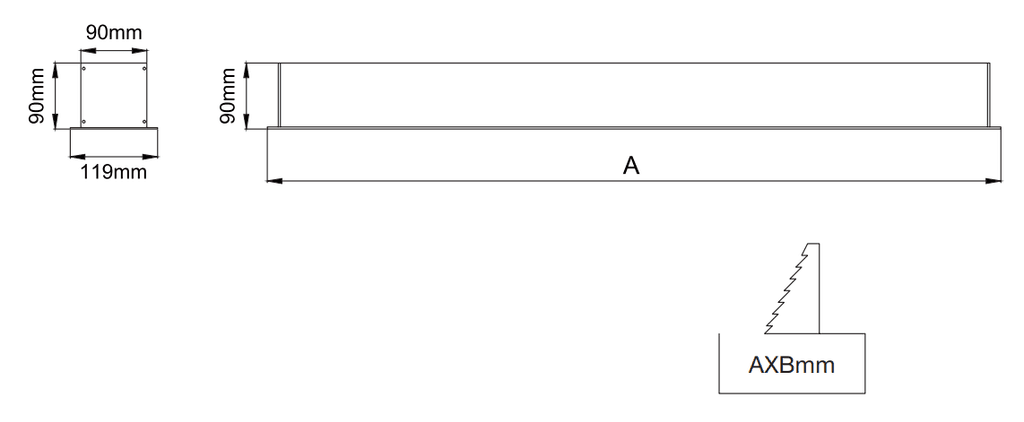

| width, height | 119-90mm |
| Mounting Type | built-in |
| Armature Data | |
|---|---|
| Product Code | I02.LL.19170.1164.034.830.01 |
| Family Name | cubus |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 119mm |
| Profile Height | 90mm |
| Installation Type | built-in |
| Productivity | >82lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Alternative Diffuser UGR<19 | microprismatic |
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 27W 350mA lm |
|---|---|---|---|---|---|
| 884mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1495 | 2008 |
| 3000K | 1543 | 2072 | |||
| 3500K | 1567 | 2104 | |||
| 4000K | 1627 | 2185 | |||
| 5000K | 1651 | 2217 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1256 | 1686 | |
| 3000K | 1292 | 1734 | |||
| 3500K | 1316 | 1766 | |||
| 4000K | 1363 | 1831 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1164mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1818 | 2555 |
| 3000K | 1876 | 2637 | |||
| 3500K | 1905 | 2677 | |||
| 4000K | 1978 | 2780 | |||
| 5000K | 2007 | 2801 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1547 | 2146 | |
| 3000K | 1570 | 2207 | |||
| 3500K | 1600 | 2248 | |||
| 4000K | 1658 | 1831 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1444mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2321 | 3293 |
| 3000K | 2396 | 3398 | |||
| 3500K | 2433 | 3450 | |||
| 4000K | 2526 | 3583 | |||
| 5000K | 2563 | 3635 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1950 | 2765 | |
| 3000K | 2006 | 2844 | |||
| 3500K | 2043 | 2897 | |||
| 4000K | 2117 | 2330 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1724mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2845 | 4018 |
| 3000K | 2936 | 4147 | |||
| 3500K | 2982 | 4210 | |||
| 4000K | 3096 | 4372 | |||
| 5000K | 3141 | 4436 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2390 | 3375 | |
| 3000K | 2458 | 3471 | |||
| 3500K | 2504 | 3535 | |||
| 4000K | 2595 | 3664 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 2004mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 3390 | 4756 |
| 3000K | 3498 | 4909 | |||
| 3500K | 3552 | 4983 | |||
| 4000K | 3688 | 5175 | |||
| 5000K | 3742 | 5251 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2847 | 3994 | |
| 3000K | 2929 | 4108 | |||
| 3500K | 2983 | 4184 | |||
| 4000K | 3091 | 4337 |
| 2 | Length (A) | Cutting Size | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 884mm |  | 100x864mm | 20W | 20W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 27W | 27W (Direct) - 350mA | |||||||||||
| 1164mm |  | 100x1144mm | 24W | 24W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34W (Direct) - 350mA | |||||||||||
| 1444mm |  | 100x1424mm | 30W | 30W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 43W | 43W (Direct) - 350mA | |||||||||||
| 1724mm |  | 100x1704mm | 36W | 26W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 51W | 51W (Direct) - 350mA | |||||||||||
| 2004mm |  | 100x1984mm | 42W | 42W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 59W | 59W (Direct) - 350mA | |||||||||||
 | 06 | special color |

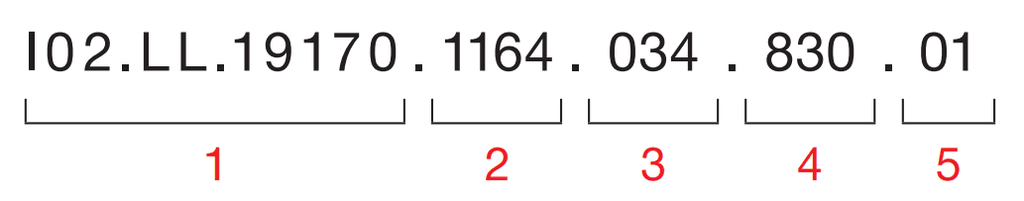

1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Cubus Recessed?
Cubus Recessed has a power of 20-59W.
What is the protection class of Cubus Recessed?
The protection class of Cubus Recessed is IP20.
Which certifications and standards does Cubus Recessed have?
Cubus Recessed carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Cubus Recessed?
The product (stock) code of Cubus Recessed is I02.LL.19170.
Where can I download the catalog or PDF of Cubus Recessed?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/94-95.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/NARROW%20RECESSED%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19190.rar) buttons on this page.
