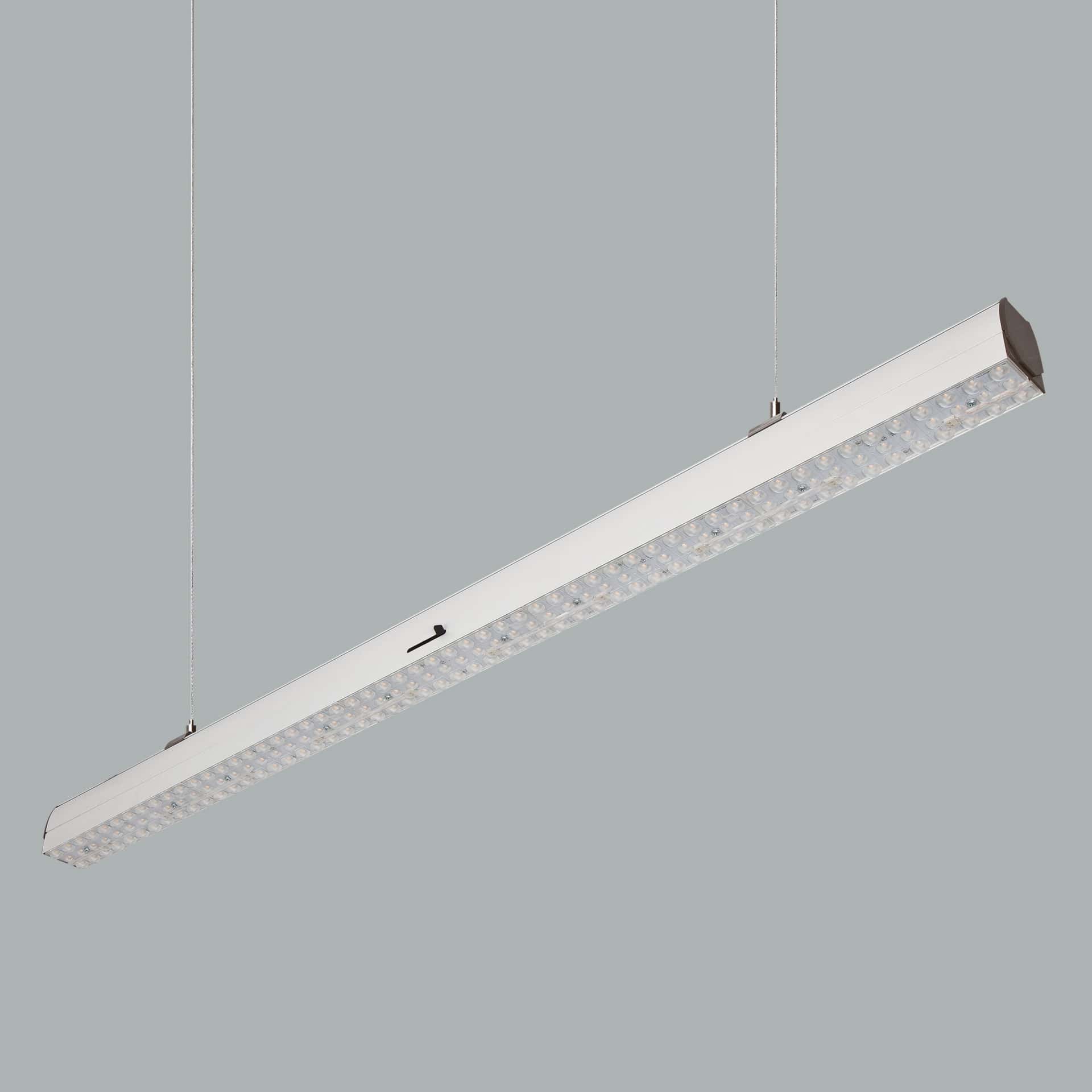

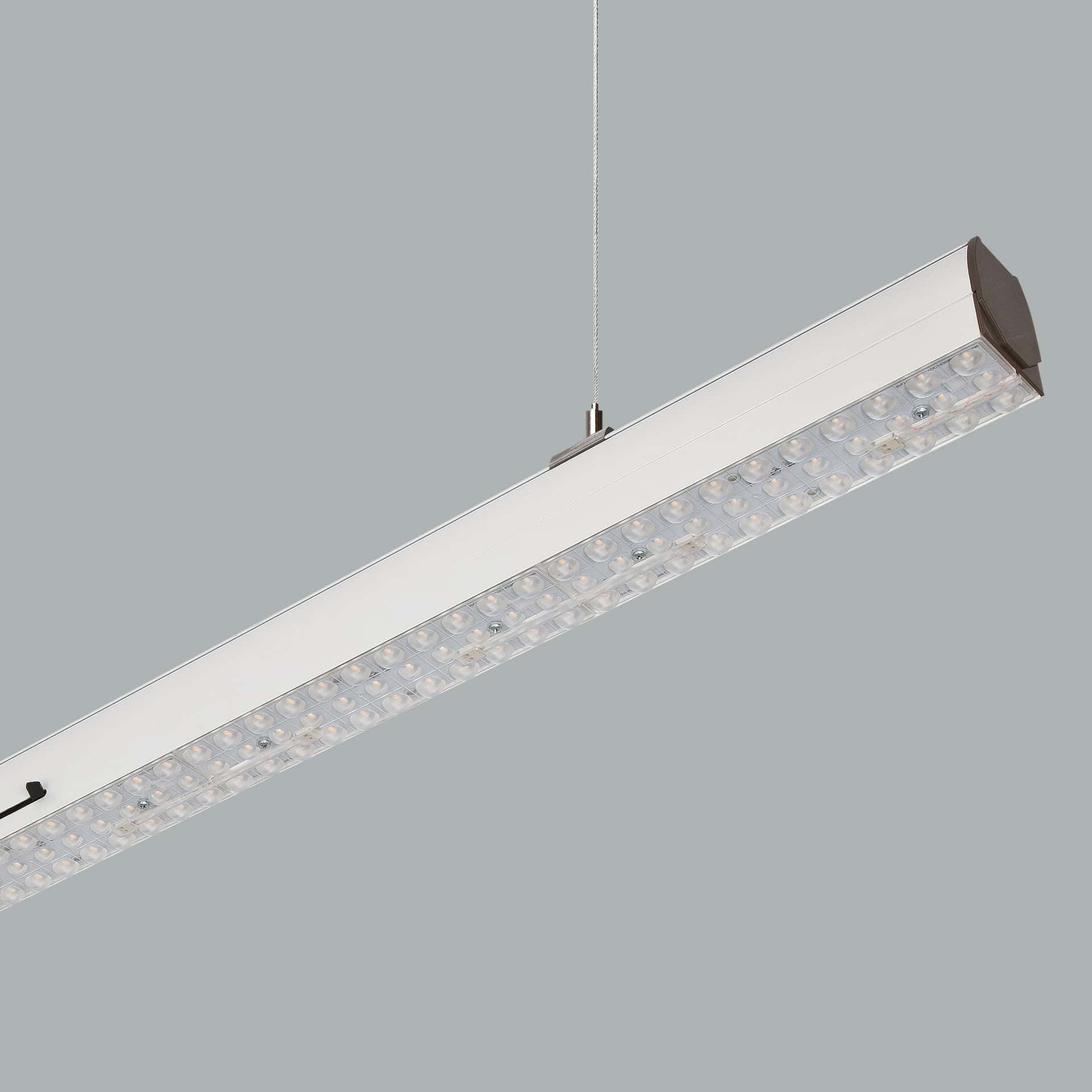

Axis Suspendant
Axis Suspendant is an AVOLUX LED lighting fixture in the Linear Profile Led Series category with a power of 42W and IP40 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 42W |
| Protection Class | IP40 |
| Shape | Linear |
| Optical | Lens |
| width, height | 66-80mm |
| Mounting Type | Stalactite |
DESCRIPTION
| Armature Data | |
|---|---|
| Product Code | I02.LL.19430.1440.042.063.830.01 |
| Family Name | axis |
| Material | Aluminum Profile |
| Format | linear |

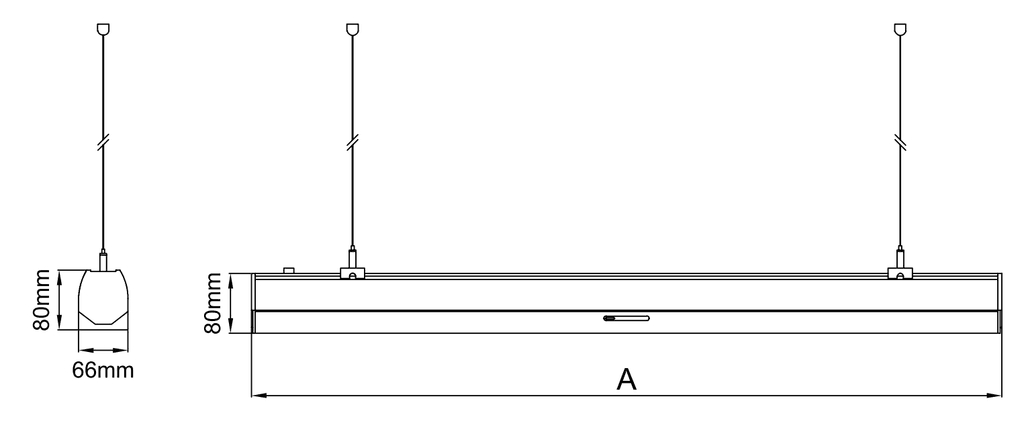

| Profile Width | 66mm |
| Profile Height | 80mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >128lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Medium, Wide, Extra Wide and Asymmetrical Angled |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | High efficiency Lens Optics |
| Length (A) | CRI | Order Code | Kelvin | 42W 300mA lm |
|---|---|---|---|---|
| 1440mm | CRI>80 | I02.LL.19430 . (...) . (...) . (...) . (...) | 2700K | 4921 |
| 3000K | 5077 | |||
| 3500K | 5156 | |||
| 4000K | 5355 | |||
| 5000K | 5431 | |||
| CRI>90 | I02.LL.19430 . (...) . (...) . (...) . (...) | 2700K | 4132 | |
| 3000K | 4250 | |||
| 3500K | 4330 | |||
| 4000K | 4487 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1440mm | 42W | 42W (Direct) - 300mA |  | M.E. | 35° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
 | FL | 63° - Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||||
 | W.F. | 94° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
 | B.F. | 2x25° - Batwing | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||||
 | 06 | special color |

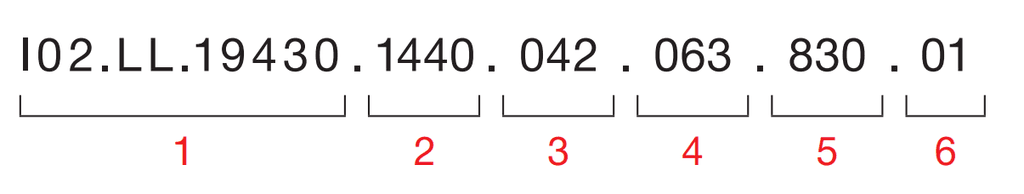

1- Product code / Armature code
2- Length
3- Power
4- Beam Angle
5- CRI / Kelvin
6- Color / Product color
7- Control type
Frequently Asked Questions
What is the wattage of Axis Suspendant?
Axis Suspendant has a power of 42W.
What is the protection class of Axis Suspendant?
The protection class of Axis Suspendant is IP40.
Which certifications and standards does Axis Suspendant have?
Axis Suspendant carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Axis Suspendant?
The product (stock) code of Axis Suspendant is I02.LL.19430.
Where can I download the catalog or PDF of Axis Suspendant?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linealed/124-125.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linealedpanel/AXIS%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.19430.rar) buttons on this page.
