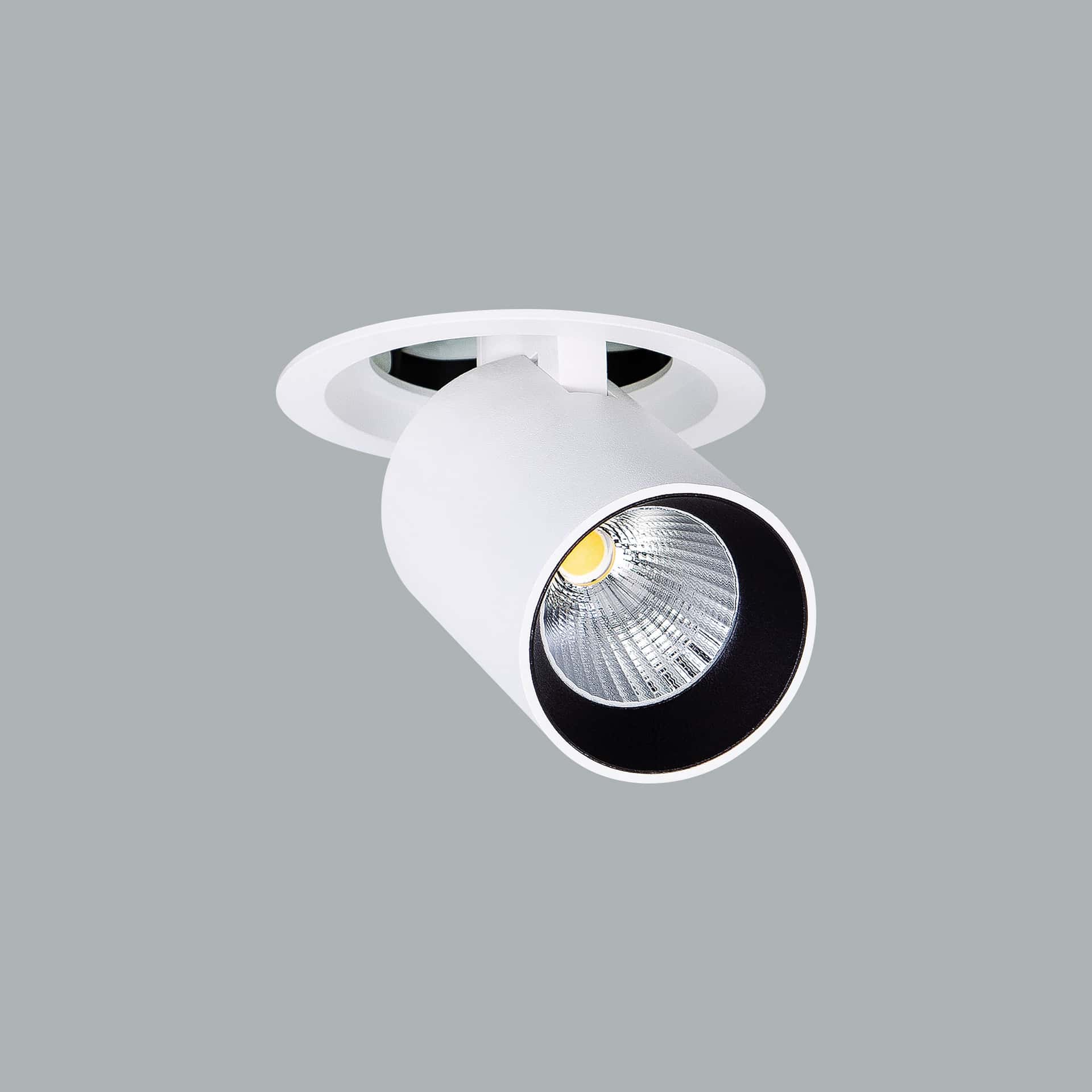

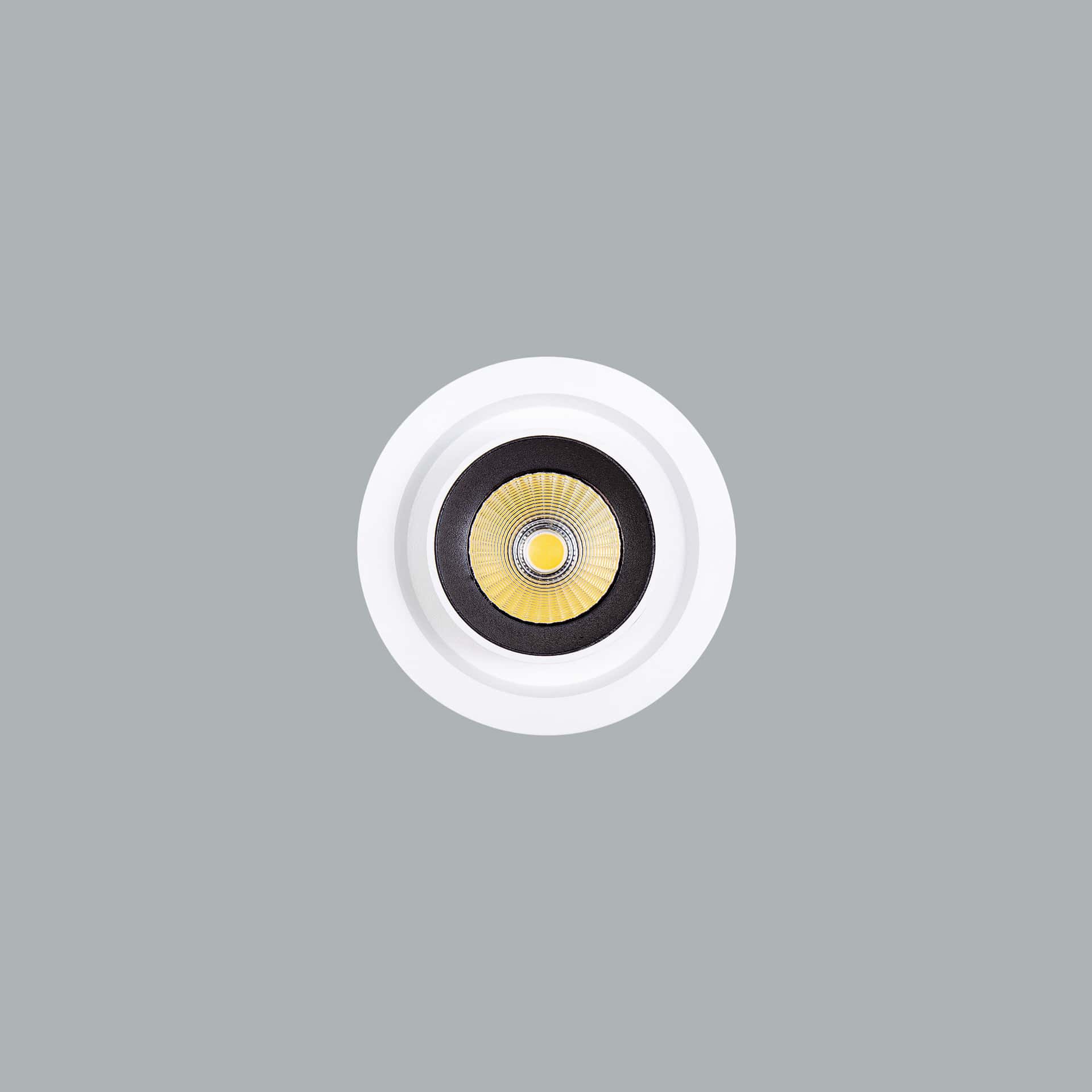

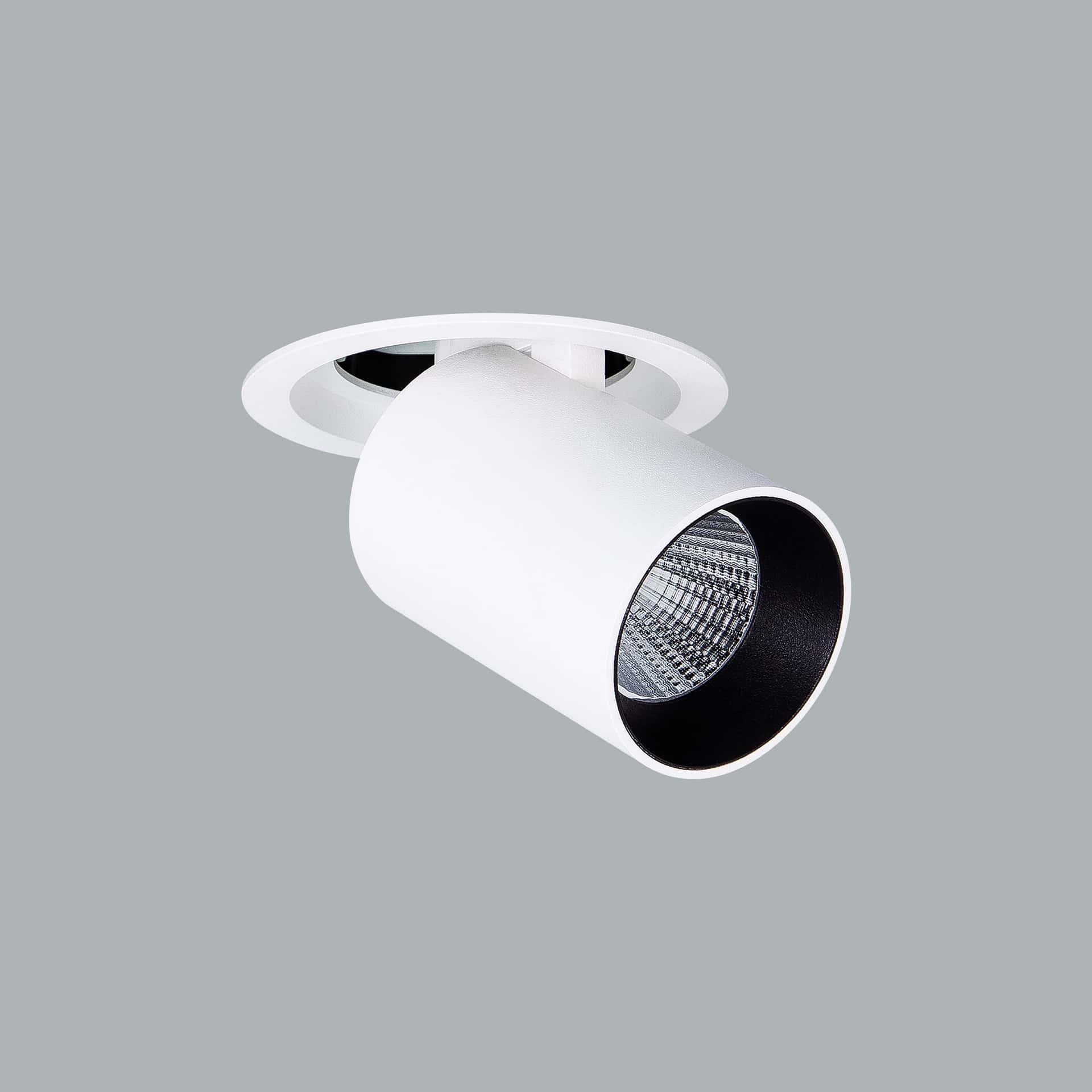

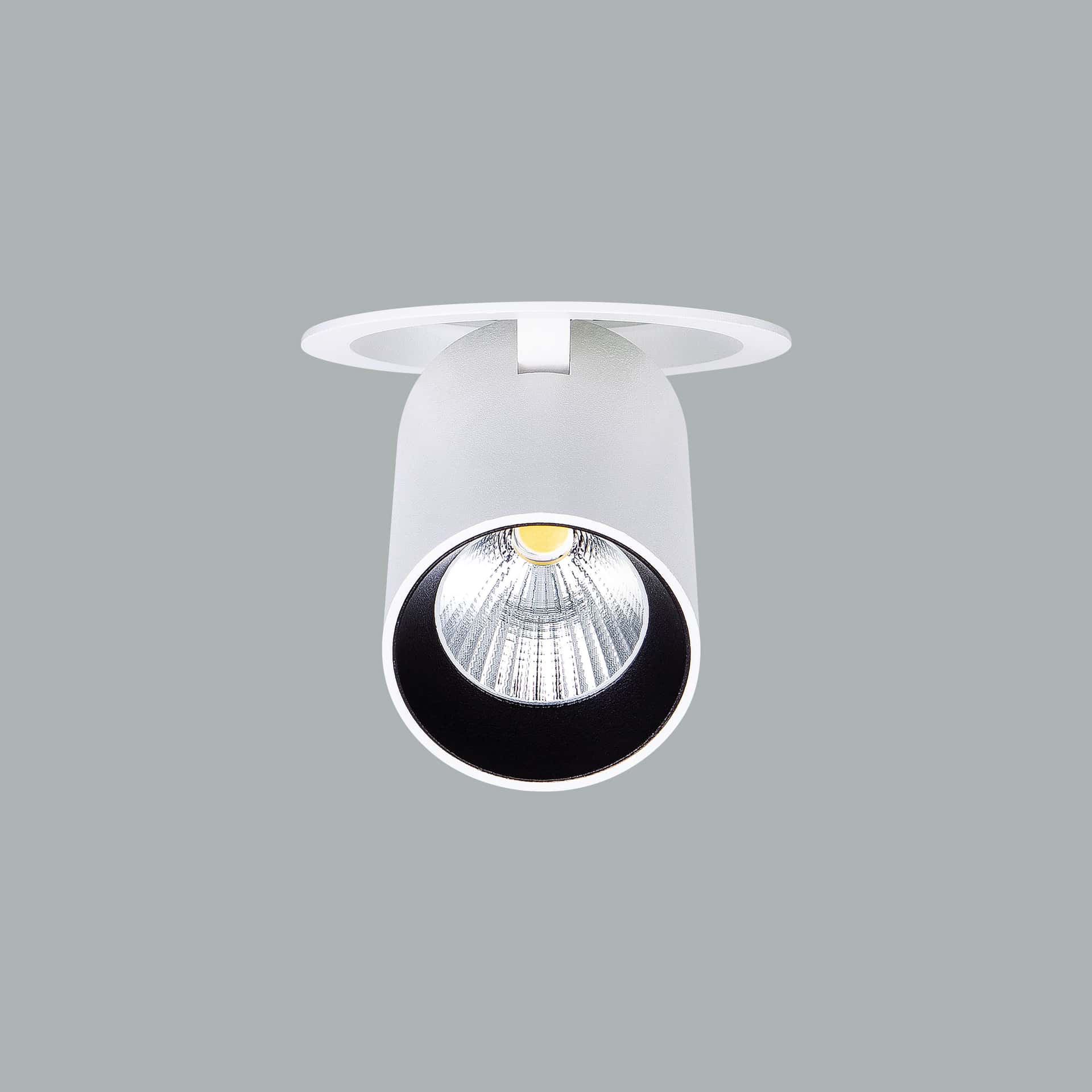

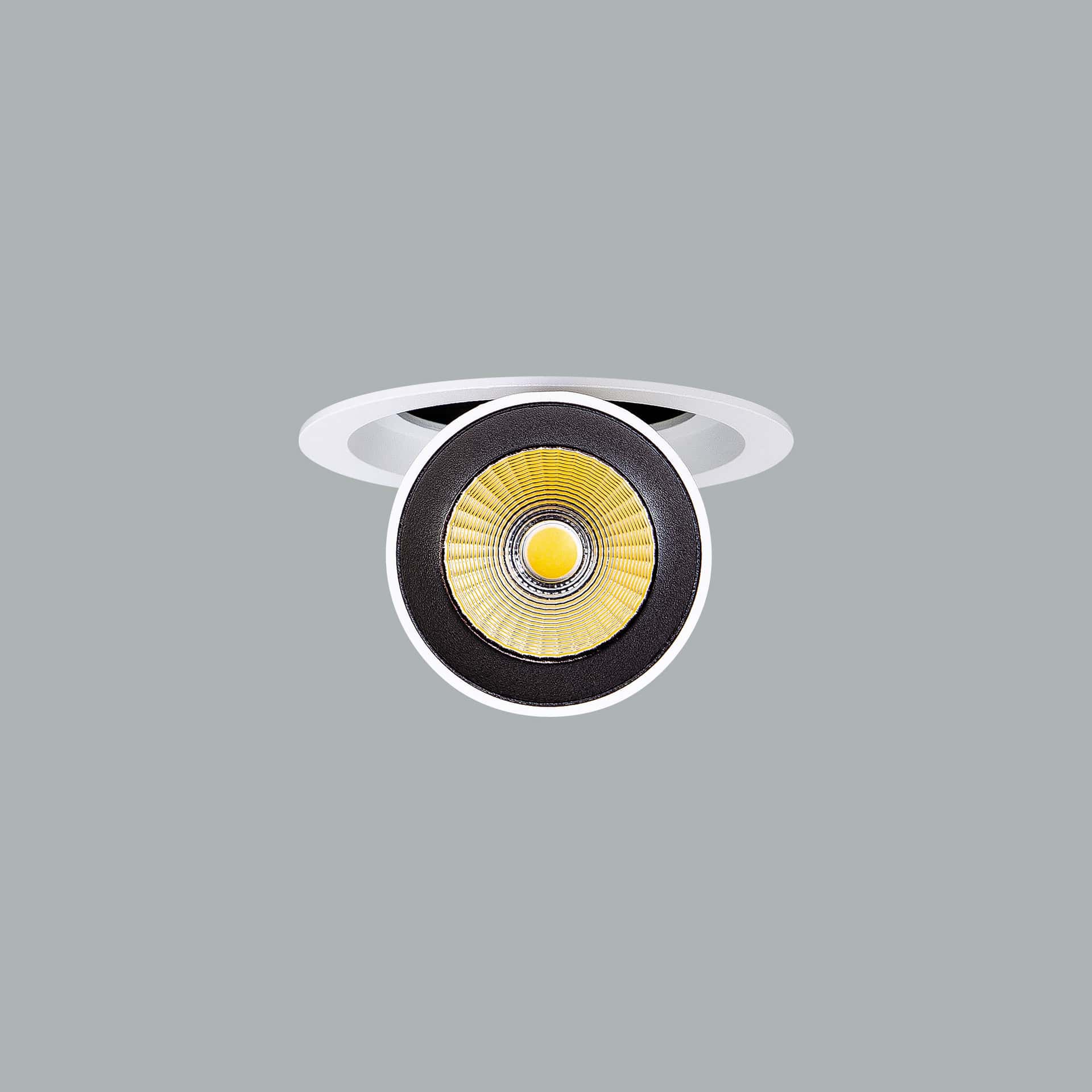

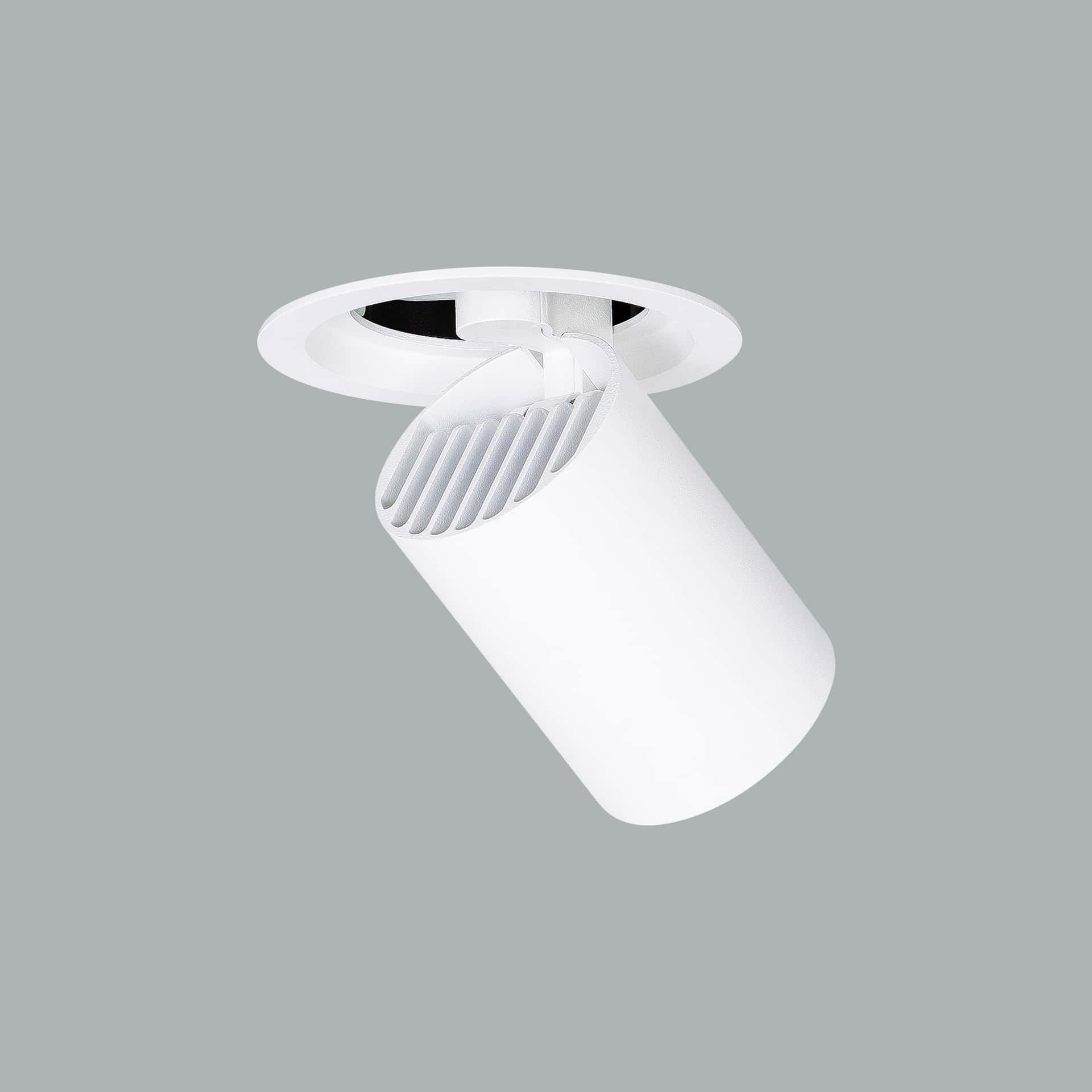

Aram Mini
Aram Mini is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 15W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 15W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.
-- Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 130lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 15W | CRI>80 | I01.MLR.20830 . (..) . (...) . (..) . (..) | 2700K | 1408 |
| 3000K | 1451 | |||
| 3500K | 1480 | |||
| 4000K | 1510 | |||
| 5000K | 1540 | |||
| CRI>90 | I01.MLR.20830 . (..) . (...) . (..) . (..) | 2700K | 1310 | |
| 3000K | 1350 | |||
| 3500K | 1376 | |||
| 4000K | 1404 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.20830 . (..) . (...) . (..) . (..) | 2700K | 1009 | |
| 3000K | 1040 | |||
| 4000K | 1081 |

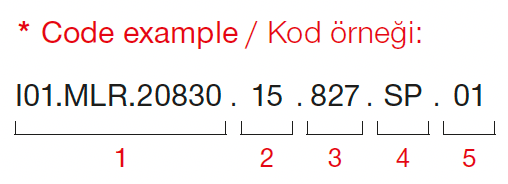

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 15W - 350mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SP | 20° - Spot |  | 01 | white |
| 10 | 10W - 250mA | 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | FL | 40° - Flood |  | 02 | ral 9010 |
| 7 | 7W - 180mA | 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | W.F. | 60° - Wide Flood |  | 03 | black |
| 4 | 4W - 100mA | 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Aram Mini?
Aram Mini has a power of 15W.
What is the protection class of Aram Mini?
The protection class of Aram Mini is IP20.
Which certifications and standards does Aram Mini have?
Aram Mini carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Aram Mini?
The product (stock) code of Aram Mini is I01.MLR.20830.
Where can I download the catalog or PDF of Aram Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/281.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/recessed/ARAM%20Recessed.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Aram%20Mini%20I01.MLR.20830.rar) buttons on this page.
