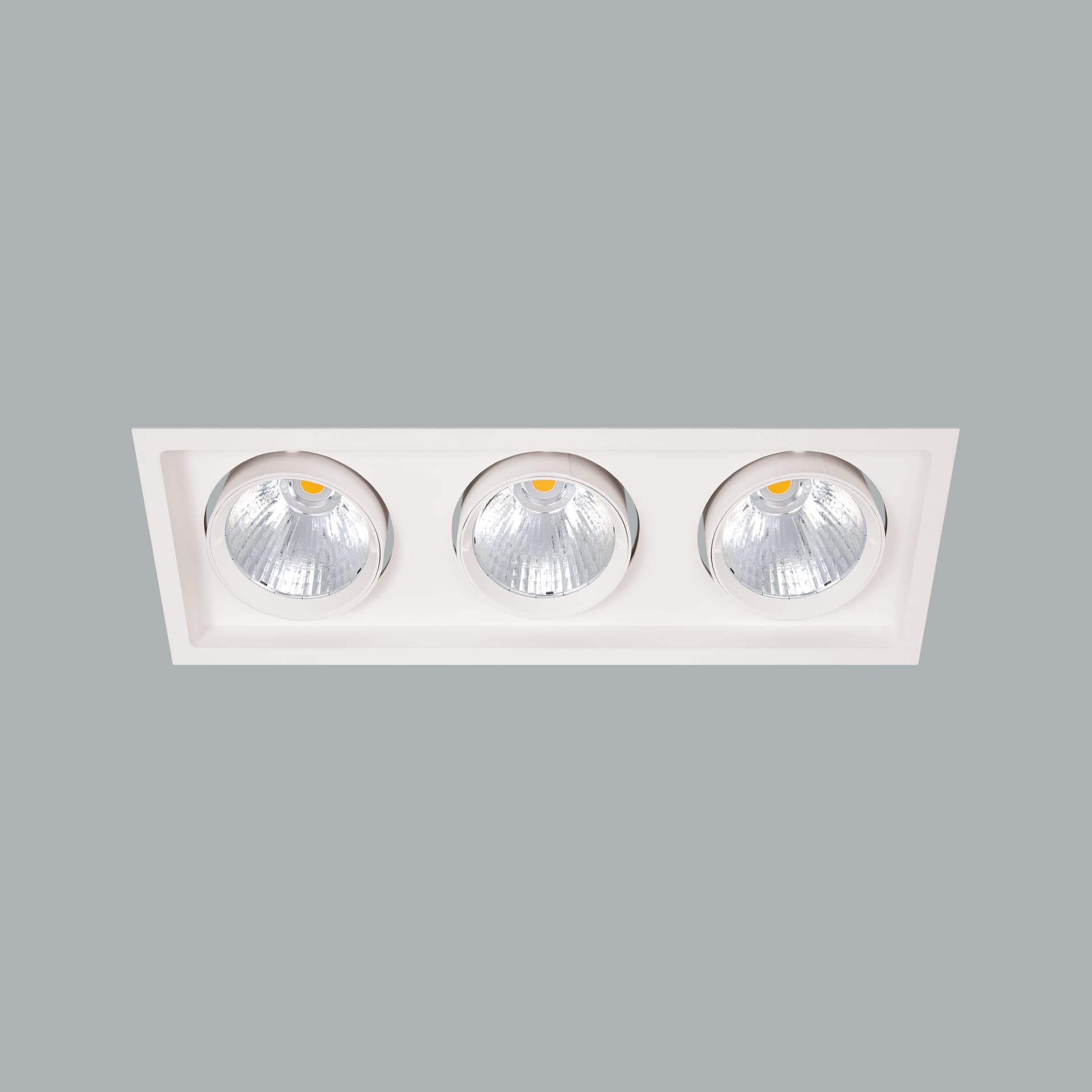

Akro Trimless
Akro Trimless is an AVOLUX LED lighting fixture in the COB Led Recessed Series category with a power of 24W and IP20 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 24W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Lens |
DESCRIPTION
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Deep recessed light source for low glare and visual comfort.
-- Precise optical control.
-- Vertical: 37° tilt adjustment and Horizontal: 350° orientation adjustment.
-- CRI90/98 options with 2700K - 5000K CCT range.
-- DALI, 1-10V and Phase DIM options are applicable.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb accessory options can be applied.
-- Very Narrow, Narrow, Medium, Wide and Very Wide lens angle options are available. 9° / 18° / 24° / 36° / 50°.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LEDs.
-- High efficiency LED module up to 2100 lumens.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 24W | CRI>90 | I01.MLR.60831 . (..) . (...) . (..) . (..) | 2700K | 2058 |
| 3000K | 2100 | |||
| 3500K | 2142 | |||
| 4000K | 2185 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.60831 . (..) . (...) . (..) . (..) | 2700K | 1545 | |
| 3000K | 1575 | |||
| 3500K | 1610 | |||
| 4000K | 1640 | |||
| 5000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 24W - 600mA | 927 | CRI>90 - 2700K | 9835 | CRI>98 -3500K |  | SS | 9° - Super Spot |  | 01 | white |
| 21 | 21W - 500mA | 930 | CRI>90 - 3000K | 9840 | CRI>98 -4000K |  | SP | 18° - Spot |  | 02 | ral 9010 |
| 935 | CRI>90 - 3500K |  | M.E. | 24° - Medium |  | 03 | black | ||||
| 940 | CRI>90 - 4000K |  | FL | 36° - Flood |  | 04 | gray | ||||
| 9827 | CRI>98 - 2700K |  | W.F. | 50° - Wide Flood |  | 05 | dark gray | ||||
| 9830 | CRI>98 - 3000K |  | 06 | special color |
Luminaire codePowerKelvinReflector angleProduct color
Frequently Asked Questions
What is the wattage of Akro Trimless?
Akro Trimless has a power of 24W.
What is the protection class of Akro Trimless?
The protection class of Akro Trimless is IP20.
Which certifications and standards does Akro Trimless have?
Akro Trimless carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP20.
What is the product code of Akro Trimless?
The product (stock) code of Akro Trimless is I01.MLR.60831.
Where can I download the catalog or PDF of Akro Trimless?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/downloads/Akro%20Trimless%20I01.MLR.60831.pdf) buttons on this page.
