Sword Track 48V

Name: Sword Track 48V
Brand: AVOLUX
SKU: I02.LL.15115

Ürün ikonları

Stok kodu: I02.LL.15115

Kategoriler: 48V Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum profile body.

-- With 48V DC input.

-- Intelligent cooling design with passive cooling technology.

-- With DC/DC transformer adapter suitable for Stucchi 48V rail system.

-- Lens optics with narrow, medium and oval angle light distributions.

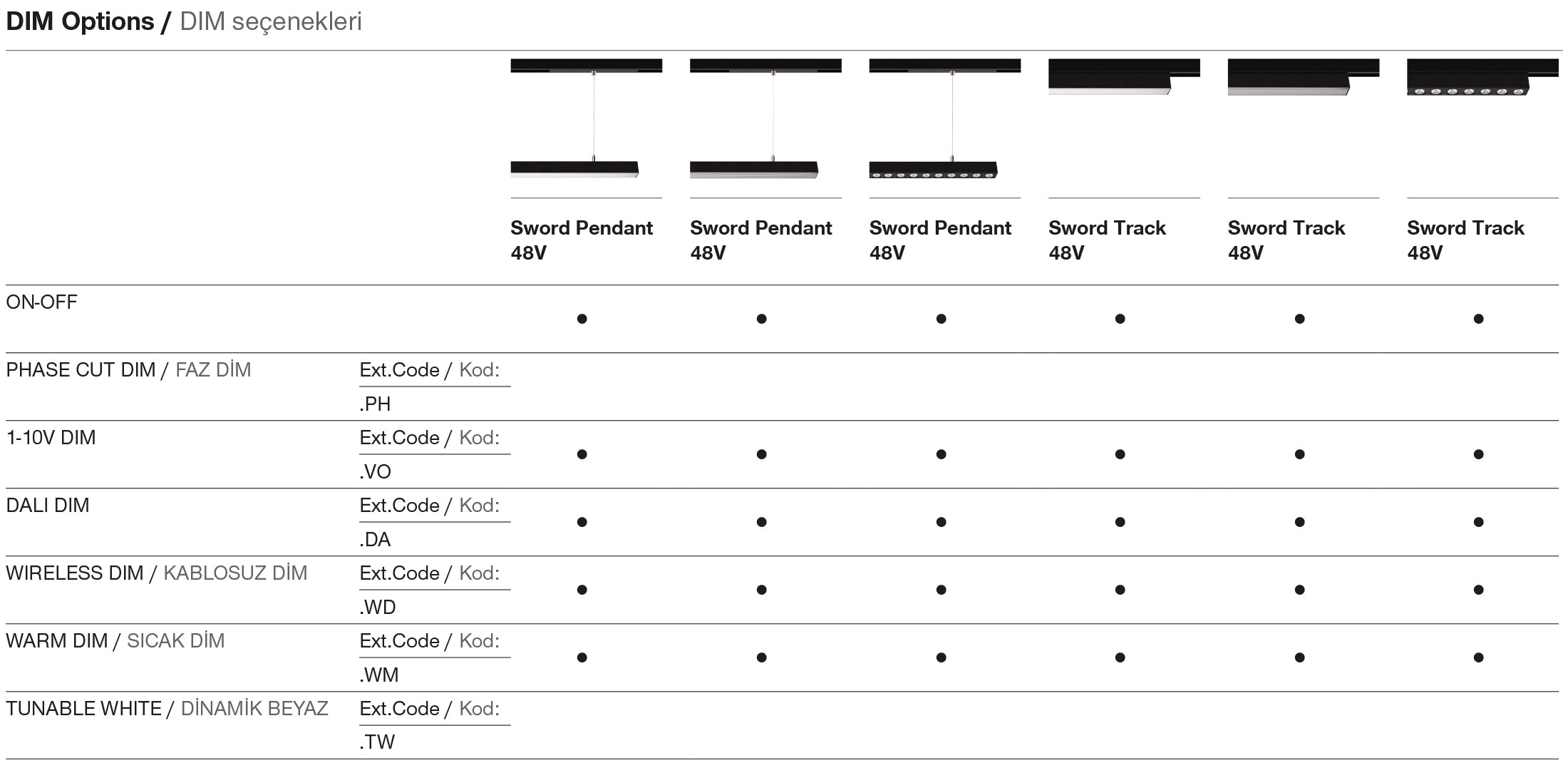

-- DALI and 1-10V DIM options available.

-- Wireless DIM and Hot DIM, which are high-tech control systems applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- High CRI>90 and standard CRI>80 LED options are available.

-- High color compatibility: <3 SDCM.

Strength	CRI	Order Code	Kelvin	Lumen
15W	CRI>80	I02. LL.15115 . (..) . (...) . (..) . (..) . (....)	2700K	1215
			3000K	1253
			4000K	1290
			5000K	1328
	CRI>90	I02. LL.15115 . (..) . (...) . (..) . (..) . (....)	2700K	1130
			3000K	1163
			4000K	1200
			5000K	1234

Strength	CRI	Order Code	Kelvin	Lumen
10W	CRI>80	I02. LL.15115 . (..) . (...) . (..) . (..) . (....)	2700K	810
			3000K	835
			4000K	860
			5000K	885
	CRI>90	I02. LL.15115 . (..) . (...) . (..) . (..) . (....)	2700K	753
			3000K	775
			4000K	800
			5000K	823

Strength	CRI	Order Code	Kelvin	Lumen
5W	CRI>80	I02. LL.15115 . (..) . (...) . (..) . (..) . (....)	2700K	405
			3000K	417
			4000K	430
			5000K	442
	CRI>90	I02. LL.15115 . (..) . (...) . (..) . (..) . (....)	2700K	376
			3000K	387
			4000K	400
			5000K	411

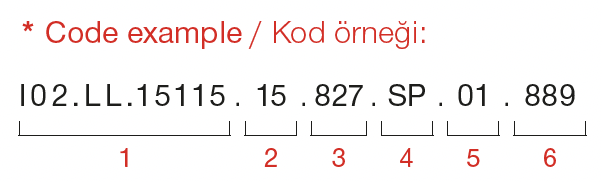

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color	Length
15	15W - 350mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	SP	20° - Spot	01	white	889mm
10	10W - 350mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	M.E.	38° - Medium	02	ral 9010	594mm
5	5W - 350mA	840	CRI>80 - 4000K	940	CRI>90 - 4000K	OV	21° x 43° - Oval	03	black	299mm
		850	CRI>80 - 5000K	950	CRI>90 - 5000K			04	gray
								05	dark gray
								06	special color
