Sword Pendant 48V

Name: Sword Pendant 48V
Brand: AVOLUX
SKU: I02.LL.15010

Ürün ikonları

Stok kodu: I02.LL.15010

Kategoriler: 48V Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum profile body.

-- With 48V DC input.

-- Intelligent cooling design with passive cooling technology.

-- With DC/DC transformer adapter suitable for Stucchi 48V rail system

-- With microprismatic diffuser with low glare values

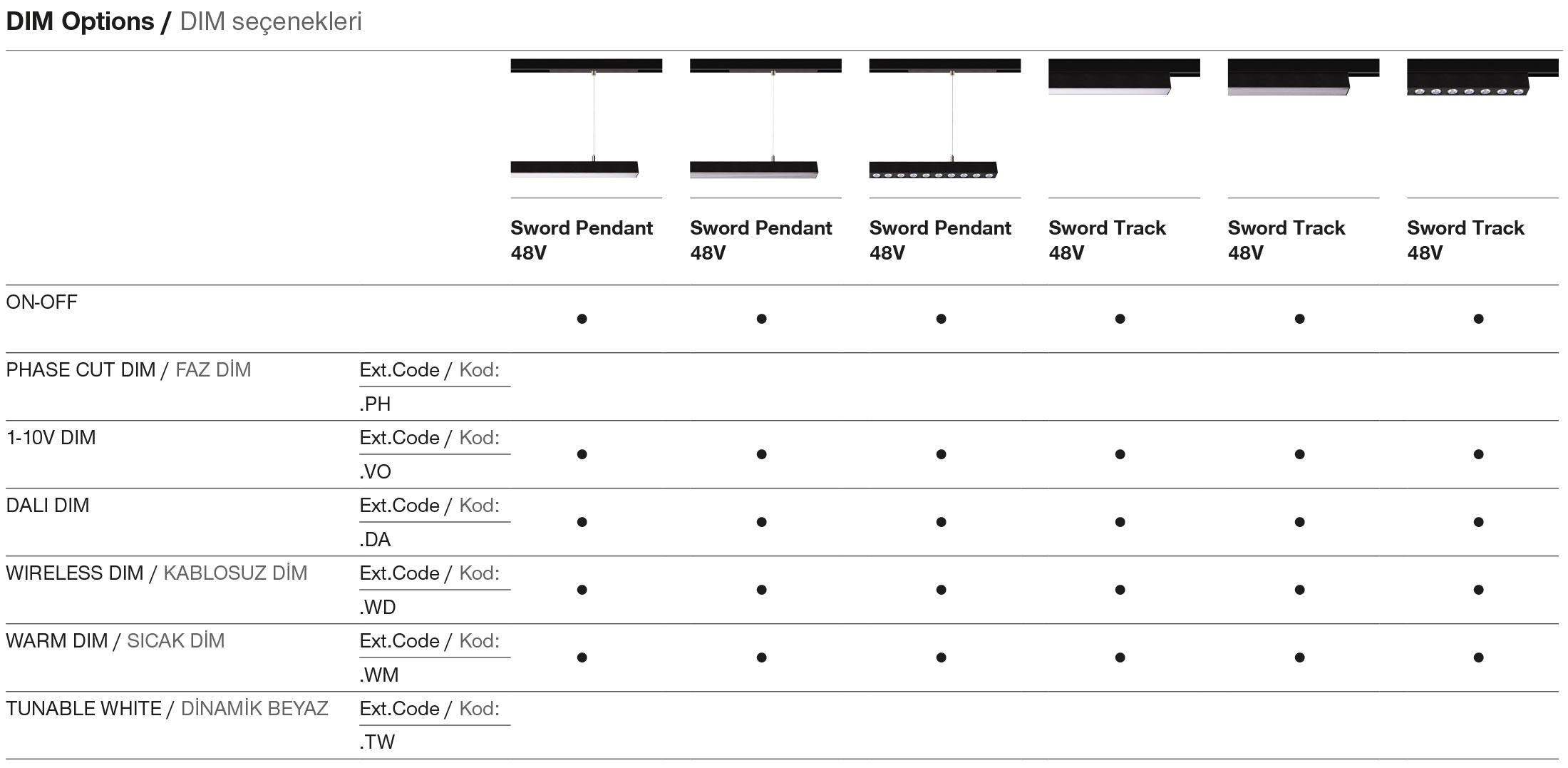

-- DALI and 1-10V DIM options available.

-- Wireless DIM and Hot DIM, which are high-tech control systems applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- High CRI>90 and standard CRI>80 LED options are available.

-- High color compatibility: <3 SDCM

-- Steel pendant wire up to 5.00m long.

Strength	CRI	Order Code	Kelvin	Lumen
15W	CRI>80	I02.LL.15010 . (..) . (...) . (..) . (..) . (....)	2700K	1113
			3000K	1189
			4000K	1225
			5000K	1262
	CRI>90	I02.LL.15010 . (..) . (...) . (..) . (..) . (....)	2700K	1072
			3000K	1105
			4000K	1138
			5000K	1173

Strength	CRI	Order Code	Kelvin	Lumen
10W	CRI>80	I02.LL.15010 . (..) . (...) . (..) . (..) . (....)	2700K	769
			3000K	793
			4000K	817
			5000K	841
	CRI>90	I02.LL.15010 . (..) . (...) . (..) . (..) . (....)	2700K	715
			3000K	737
			4000K	759
			5000K	782

Strength	CRI	Order Code	Kelvin	Lumen
5W	CRI>80	I02.LL.15010 . (..) . (...) . (..) . (..) . (....)	2700K	267
			3000K	275
			4000K	283
			5000K	292
	CRI>90	I02.LL.15010 . (..) . (...) . (..) . (..) . (....)	2700K	249
			3000K	255
			4000K	262
			5000K	271
