Sivo Full Ring Recessed
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 70W |
| Protection Class | IP20 |
| Shape | Full Ring Recessed |
| Optical | diffuser |
| Diameter | Ø765mm |
| Profile Height | h:75mm |
AÇIKLAMA
Açıklama
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
CASAMBI options are available. Efficiency over 100lm/W. Emergency kit system can be integrated. Basic colors: white, black, silver, anthracite dark gray and special color on request
options are available. Steel hanging wire with length option up to 5m with standard or central baldachine.
Ürün Kodu Tablosu
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.13407.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 76.5cm |
| Height | 75mm |
| Mounting method | built-in |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 6949lm | 7171lm | 7282lm | 7560lm | 7671lm |
| System efficiency | 99lm/W | 102lm/W | 104lm/W | 108lm/W | 110lm/W |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 116° | 116° | 116° | 116° | 116° |
| Light Angle | Only Direct |
| Working technology of fixtures | |
|---|---|
| System Output | 70W |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP20 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |
Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Daimeter / Diameter
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type

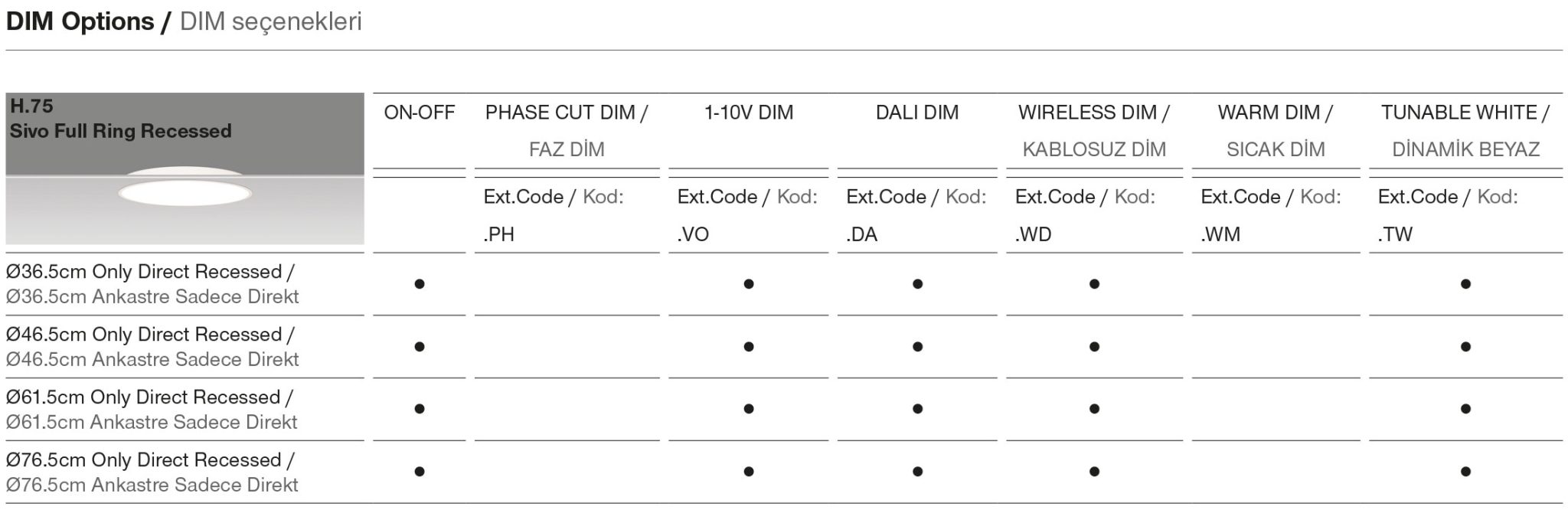

DIM Seçenekleri
