Silindir Mini Surface

Name: Silindir Mini Surface
Brand: AVOLUX
SKU: I01.MLS.20830

Ürün ikonları

Stok kodu: I01.MLS.20830

Kategoriler: COB Led Surface Mounted Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Tempered glass.

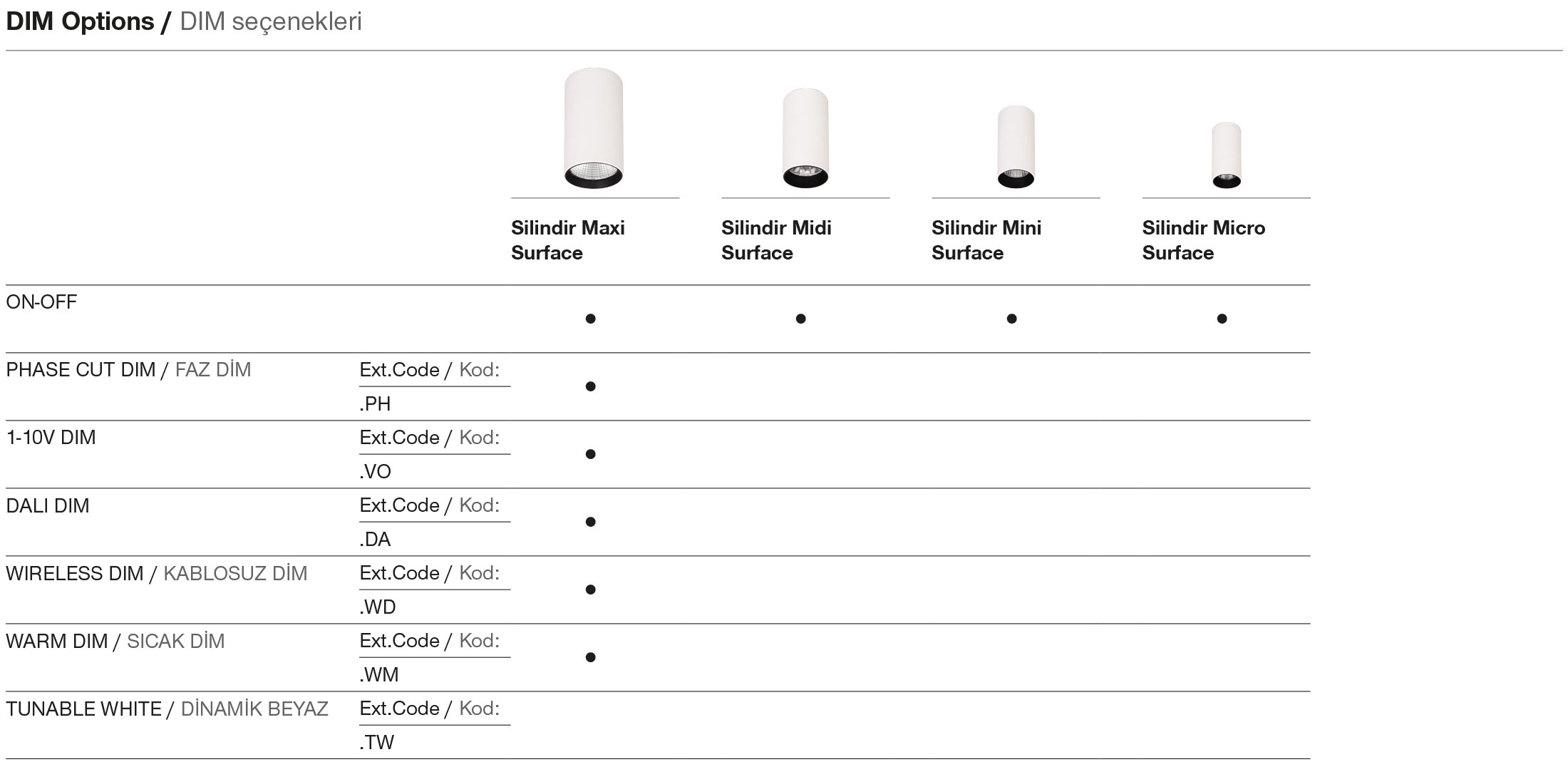

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- Wireless DIM and Hot DIM, which are high-tech control systems applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

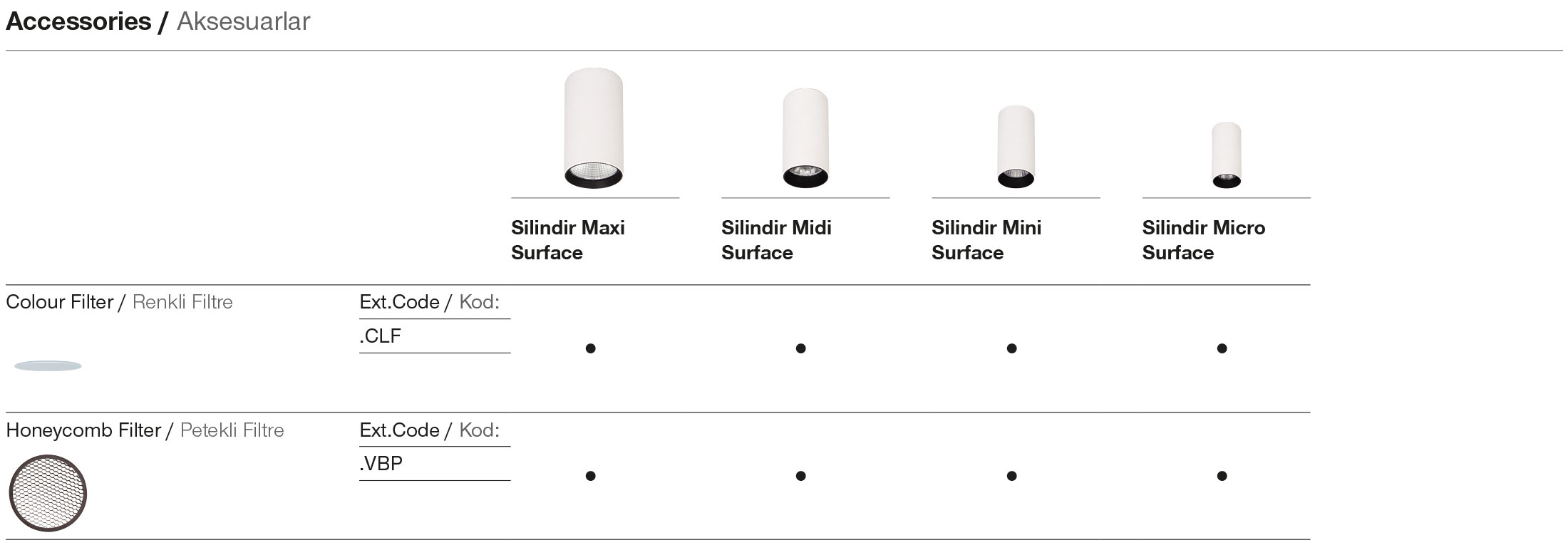

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Narrow, Medium and Wide reflector angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 113lm/W.

-- High color compatibility: <3 SDCM.

Strength	CRI	Order Code	Kelvin	Lumen
15W	CRI>80	I01.MLS.20830 . (..) . (...) . (..) . (..)	2700K	1517
			3000K	1563
			3500K	1594
			4000K	1627
			5000K	1659
	CRI>90	I01.MLS.20830 . (..) . (...) . (..) . (..)	2700K	1411
			3000K	1454
			3500K	1482
			4000K	1513
			5000K	X
	CRI>98	I01.MLS.20830 . (..) . (...) . (..) . (..)	2700K	1087
			3000K	1020
			4000K	1064

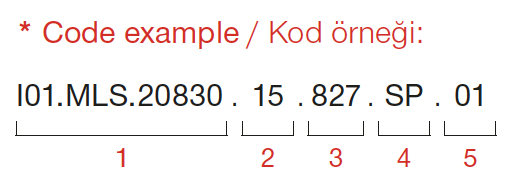

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
15	15W - 350mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	SP	20° - Spot	01	white
10	10W - 250mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K	FL	40° - Flood	02	ral 9010
7	7W - 180mA	835	CRI>80 - 3500K	940	CRI>90 - 4000K	W.F.	60° - Wide Flood	03	black
4	4W - 100mA	840	CRI>80 - 4000K	9827	CRI>98 - 2700K			04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K			05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
