Rainbow

Ürün ikonları

Input Voltage	220-240V / 50-60Hz
Wattage	11-44W
Protection Class	IP66
Shape	surface mounted
Optical	Lens

Stok kodu: O07.WL.16020

Kategoriler: Facade Lighting Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

Açıklama

-- LED facade lighting fixture with symmetrical light output.

-- Corrosion resistant aluminum profile body and aluminum injection

end cap.

-- Thanks to the bracketed mounting system, it can be mounted on floor, wall and ceiling surfaces.

It can be easily installed.

-- 220-240V / 50-60Hz energy input.

-- Very narrow, narrow, medium, wide and oval angle options are available.

-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature

options are available.

-- Green, red, blue and amber color options are available.

-- Optionally, jumper between luminaires with 2 cable entry terminals

can be done.

-- IP protection is provided without any problems with silicone gaskets.

-- All external screws are stainless.

-- Corrosion and salt resistant thanks to double-layer polyester powder paint.

-- Efficiency up to 110lm/W.

-- High color compatibility: <3 SDCM

-- RGB and RGBW options are available.

-- Stainless cable gland is used in the luminaire and 220V main

The mains cable has an IP68 protected connector.

-- Mechanical locking system.

-- Thanks to flexible mounting legs, 180° movement is provided in a single plane.

-- Safe system with L80 B10 50000 hour life parameters.

-- Five-year warranty.

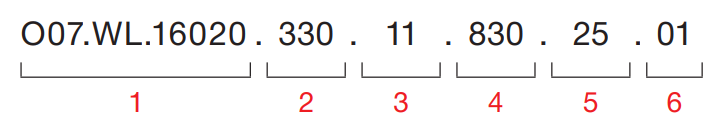

Ürün Kodu Tablosu

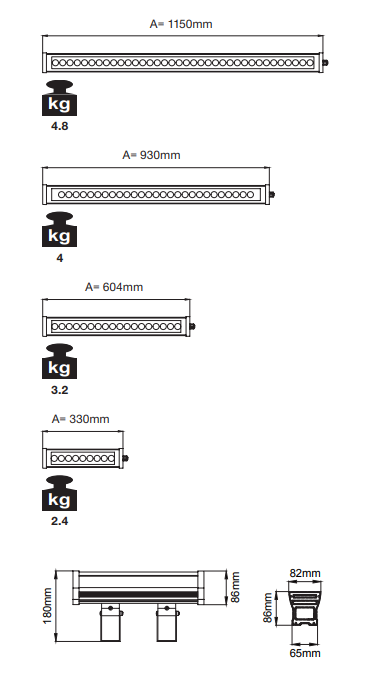

Length (A)	Strength	CRI	Order Code	Kelvin	Lumen
330mm	11W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K	1115
				3000K	1128
				3500K	1179
				4000K	1205
				5000K	1218
				6500K	1231
	7.3W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Red	544
	10W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Green	924
	10W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Blue	460
	10W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Amber	1002
	11W	Dynamic White	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K - 6000K	716 - 926
	10W	RGBW	O07.WL.16020 . (..) . (...) . (..) . (..)	RGBW	572
604mm	22W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K	2230
				3000K	2256
				3500K	2359
				4000K	2411
				5000K	2437
				6500K	2463
	14.5W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Red	1089
	19.8W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Green	1848
	20W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Blue	920
	20W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Amber	2004
	22W	Dynamic White	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K - 6000K	1432 - 1852
	20W	RGBW	O07.WL.16020 . (..) . (...) . (..) . (..)	RGBW	1144
930mm	33W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K	3345
				3000K	3384
				3500K	3539
				4000K	3617
				5000K	3656
				6500K	3695
	22W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Red	1632
	29.7W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Green	2772
	30W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Blue	1380
	30W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Amber	3006
	33W	Dynamic White	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K - 6000K	2148 - 2778
	30W	RGBW	O07.WL.16020 . (..) . (...) . (..) . (..)	RGBW	1716
1150mm	44W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K	4460
				3000K	4512
				3500K	4719
				4000K	4823
				5000K	4875
				6500K	4927
	29W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Red	2176
	39.5W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Green	3696
	40W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Blue	1840
	40W	CRI>80	O07.WL.16020 . (..) . (...) . (..) . (..)	Amber	4008
	44W	Dynamic White	O07.WL.16020 . (..) . (...) . (..) . (..)	2700K - 6000K	2864 - 3702
	40W	RGBW	O07.WL.16020 . (..) . (...) . (..) . (..)	RGBW	2288

Length (A)		Watts - Driving Current	CRI/Kelvin	CRI/Kelvin	CRI/Kelvin			Light Angle	5	Product Color
1150mm	44W	44W - 1400mA	827	CRI>80 - 2700K	625	Red	SS	14° - Super Spot	01	white
930mm	33W	33W - 1050mA	830	CRI>80 - 3000K	525	Green	SP	25° - Spot	02	ral 9010
604mm	22W	22W - 700mA	835	CRI>80 - 3500K	470	Blue	M.E.	30° - Medium	03	black
330mm	11W	10W - 350mA	840	CRI>80 - 4000K	590	Amber	FL	45° - Flood	04	gray
			850	CRI>80 - 5000K	T.W.	2700K - 6000K	OV	40° x 18° - Oval	05	dark gray
			865	CRI>80 - 6500K	RGBW	RGBW			06	special color
