Pars Line Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 17-54W |
| Protection Class | IP44 |
| Shape | Linear |
| Optical | Lens |
| width, height | 45-66mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19900.0626.032.030.830.01 |
| Family Name | Pars Line |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 45mm |
| Profile Height | 66mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >109lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Medium and Wide Angle |
| Protection Class | 44 |
| Luminaire Life | L70/B50 50000h |
| Optical | Lens Optical |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 17W 250mA lm | 23W 350mA lm | 32W 500mA lm |
|---|---|---|---|---|---|---|
| 626mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 1729 | 2390 | 3257 |
| 3000K | 1784 | 2466 | 3362 | |||
| 3500K | 1819 | 2515 | 3428 | |||
| 4000K | 1856 | 2566 | 3497 | |||
| 5000K | 1912 | 2644 | 3603 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 1607 | 2222 | 3029 | |
| 3000K | 1658 | 2292 | 3124 | |||
| 3500K | 1691 | 2338 | 3187 | |||
| 4000K | 1726 | 2387 | 3253 |
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 28W 350mA lm | 39.5W 500mA lm |
|---|---|---|---|---|---|---|
| 781mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2161 | 2988 | 4072 |
| 3000K | 2230 | 3084 | 4203 | |||
| 3500K | 2274 | 3145 | 4286 | |||
| 4000K | 2320 | 3208 | 4372 | |||
| 5000K | 2390 | 3305 | 4504 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2009 | 2778 | 3787 | |
| 3000K | 2073 | 2866 | 3906 | |||
| 3500K | 2114 | 2923 | 3984 | |||
| 4000K | 2158 | 2984 | 4067 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 33.5W 350mA lm | 47W 500mA lm |
|---|---|---|---|---|---|---|
| 936mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2593 | 3585 | 4887 |
| 3000K | 2676 | 3700 | 5043 | |||
| 3500K | 2729 | 3773 | 5143 | |||
| 4000K | 2784 | 3849 | 5246 | |||
| 5000K | 2868 | 3966 | 5405 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2411 | 3334 | 4544 | |
| 3000K | 2487 | 3439 | 4687 | |||
| 3500K | 2537 | 3507 | 4781 | |||
| 4000K | 2590 | 3581 | 4880 |
| Length (A) | CRI | Order Code | Kelvin | 28W 250mA lm | 39W 350mA lm | 54W 500mA lm |
|---|---|---|---|---|---|---|
| 1091mm | CRI>80 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 3111 | 4300 | 5865 |
| 3000K | 3211 | 4440 | 6050 | |||
| 3500K | 3275 | 4530 | 6170 | |||
| 4000K | 3340 | 4620 | 6295 | |||
| 5000K | 3440 | 4760 | 6485 | |||
| CRI>90 | I02.LL.19900 . (...) . (...) . (...) . (...) | 2700K | 2895 | 4000 | 5450 | |
| 3000K | 2985 | 4125 | 5625 | |||
| 3500K | 3045 | 4200 | 5735 | |||
| 4000K | 3108 | 4300 | 5855 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 626mm | 17W | 17W (Direct) - 250mA |  | M.E. | 30° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 23W | 23W (Direct) - 350mA |  | W.F. | 60° - Wide Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 32W | 32W (Direct) - 500mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 781mm | 20W | 20W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 28W | 28W (Direct) - 350mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 39.5W | 39.5W (Direct) - 500mA |  | 06 | special color | |||||||||
| 936mm | 24W | 24W (Direct) - 250mA | |||||||||||
| 33.5W | 33.5W (Direct) - 350mA | ||||||||||||
| 47W | 47W (Direct) - 500mA | ||||||||||||
| 1091mm | 28W | 28W (Direct) - 250mA | |||||||||||
| 39W | 39W (Direct) - 350mA | ||||||||||||
| 54W | 54W (Direct) - 500mA |

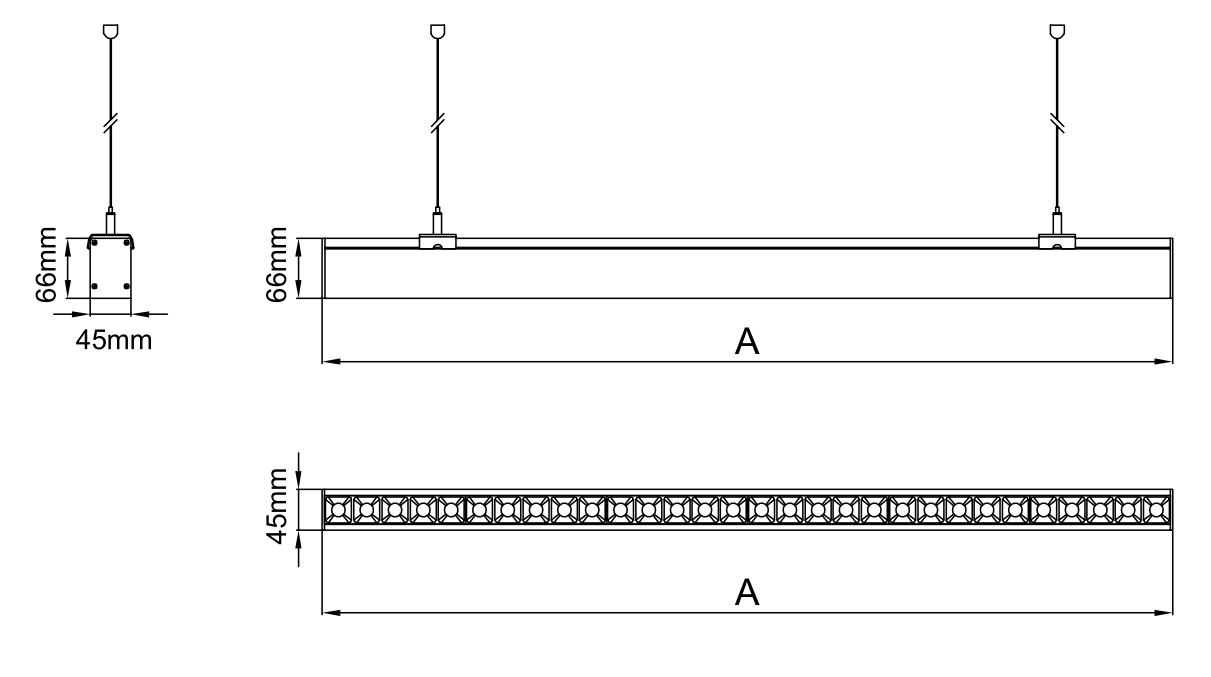

Teknik Çizimler

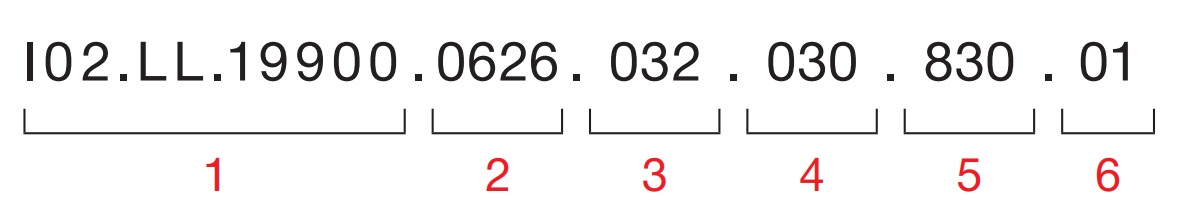

Kod Örneği
