Neptun Midi Surface

Name: Neptun Midi Surface
Brand: AVOLUX
SKU: I02.PSM.15079

Ürün ikonları

Stok kodu: I02.PSM.15079

Kategoriler: COB Led Surface Mounted Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- With PMMA opal diffuser.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

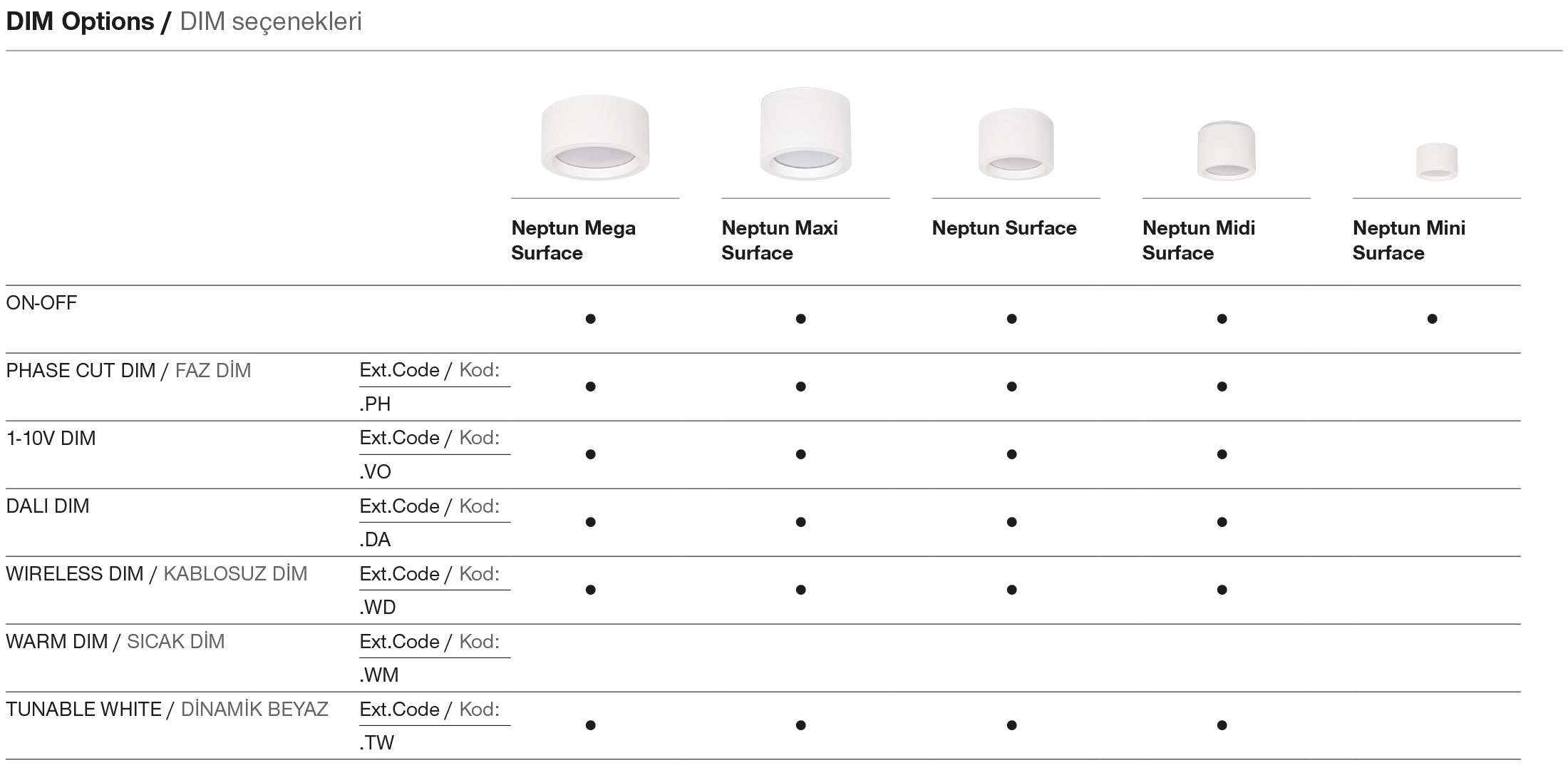

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- Wireless DIM and Dynamic White with high-tech control systems applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- Standard CRI>80 option is available.

-- Efficiency up to 106lm/W.

-- High color compatibility: <3 SDCM.

-- Thanks to the rear mounting plate, it can be easily mounted on the ceiling.

Strength	CRI	Order Code	Kelvin	Lumen
15W	CRI>80	I02.PSM.15079 . (..) . (...) . (..) . (..)	2700K	1202
			3000K	1239
			3500K	1264
			4000K	1290
			5000K	1329
	CRI>90	I02.PSM.15079 . (..) . (...) . (..) . (..)	2700K	1118
			3000K	1152
			3500K	1176
			4000K	1200
			5000K	X
	CRI>98	I02.PSM.15079 . (..) . (...) . (..) . (..)	2700K	X
			3000K	X
			4000K	X

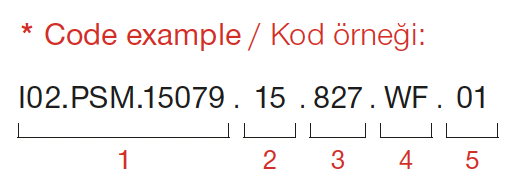

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
15	15W - 350mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	W.F.	110° - Wide Flood	01	white
11	11W - 250mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K			02	ral 9010
		835	CRI>80 - 3500K	935	CRI>90 - 3500K			03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
