Neptun Maxi Surface
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 24W |
| Protection Class | IP44 |
| Shape | surface mounted |
| Optical | Opal Diffuser |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- With PMMA opal diffuser.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM and Dynamic White with high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Standard CRI>80 option is available.
-- Efficiency up to 106lm/W.
-- High color compatibility: <3 SDCM.
-- Thanks to the rear mounting plate, it can be easily mounted on the ceiling.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 24W | CRI>80 | I02.PSM.15077 . (..) . (...) . (..) . (..) | 2700K | 1568 |
| 3000K | 1616 | |||
| 3500K | 1649 | |||
| 4000K | 1683 | |||
| 5000K | 1733 | |||
| CRI>90 | I02.PSM.15077 . (..) . (...) . (..) . (..) | 2700K | 1458 | |
| 3000K | 1503 | |||
| 3500K | 1534 | |||
| 4000K | 1565 | |||
| 5000K | X | |||
| CRI>98 | I02.PSM.15077 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 24W - 600mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 107° - Wide Flood |  | 01 | white |
| 21 | 21W - 500mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

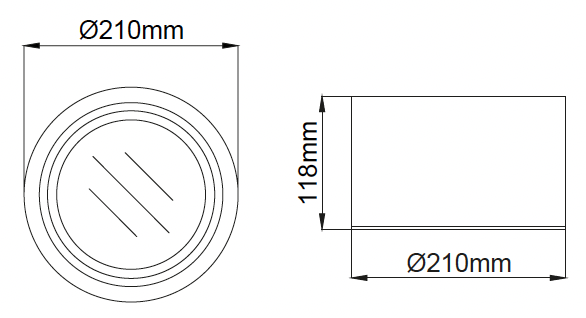

Teknik Çizimler

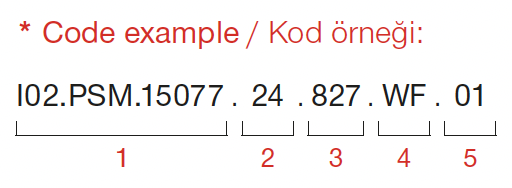

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

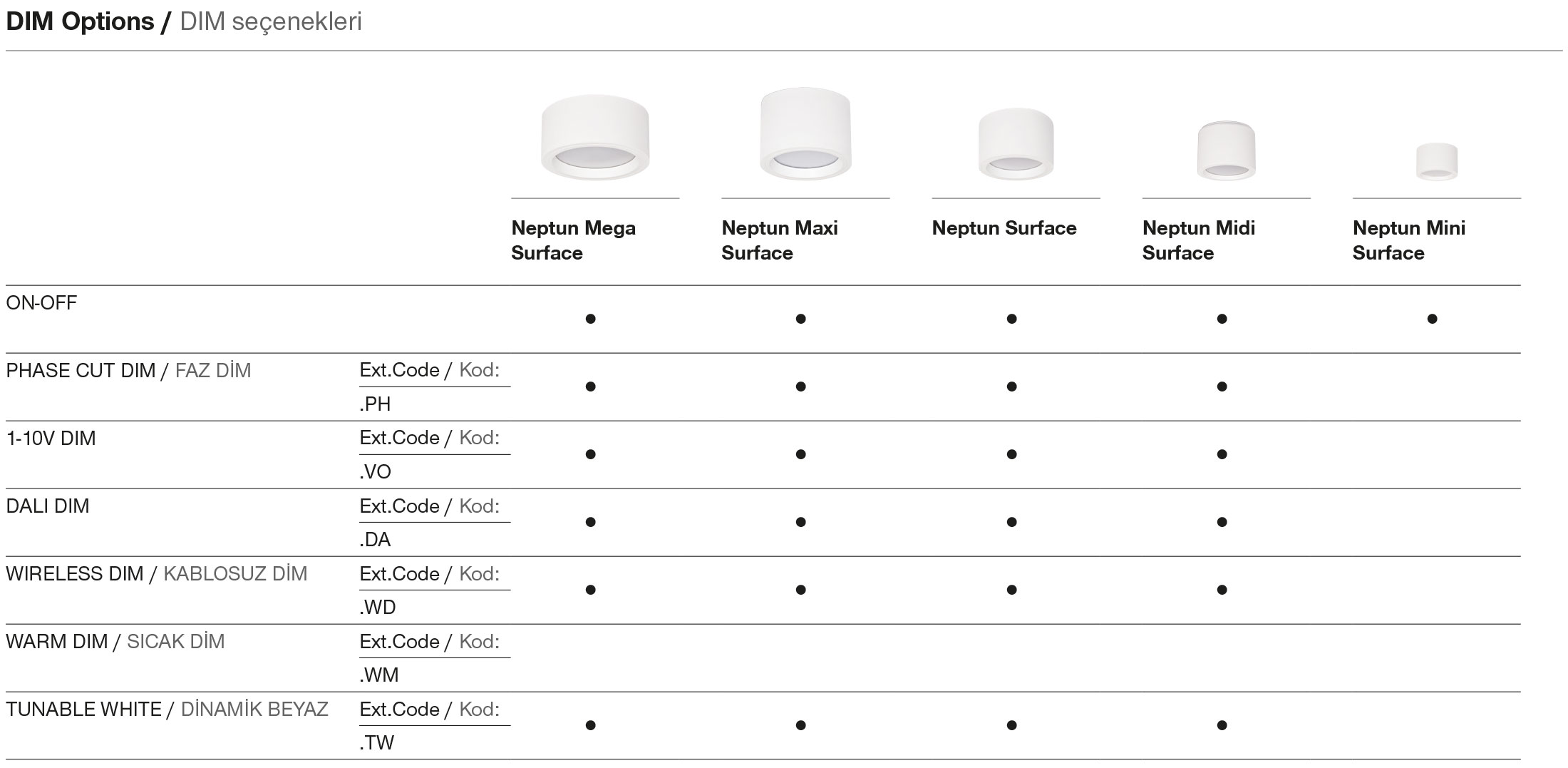

DIM Seçenekleri
