Narrow Suspendant
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 20-59W |
| Schutzklasse | IP20 |
| Form | Linear |
| Optisch | Reflektor |
| Breite, Länge | 55x81mm |
| Montageart | Stalaktit |
AÇIKLAMA
Açıklama
| Ankerdaten | |
|---|---|
| Produktcode | I02.LL.18180.1130.034.830.01 |
| Nachname | Eng |
| Material | Aluminiumprofil |
| Format | linear |
| Profilbreite | 55mm |
| Profilhöhe | 81mm |
| Installationstyp | Pendelleuchte, Aufputzmontage und Schienenmontage |
| Produktivität | >109lm/W |
| CRI | 80 |
| Lichtverteilung | Symmetrischer Weitwinkel |
| Schutzklasse | 20 |
| Leuchtenleben | L70/B50 50000h |
| Optisch | Weiß lackiertes Wabenblech |
Ürün Kodu Tablosu
| Länge (A) | CRI | Bestellcode | Kelvin | 20W 250mA lm | 24W 350mA lm |
|---|---|---|---|---|---|
| 850mm | CRI>80 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 2118 | 2668 |
| 3000K | 2186 | 2753 | |||
| 3500K | 2220 | 2796 | |||
| 4000K | 2305 | 2903 | |||
| 5000K | 2339 | 2945 | |||
| CRI>90 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 1779 | 2241 | |
| 3000K | 1830 | 2305 | |||
| 3500K | 1864 | 2348 | |||
| 4000K | 1932 | 2433 |
| Länge (A) | CRI | Bestellcode | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1130 mm | CRI>80 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 2578 | 3397 |
| 3000K | 2660 | 3506 | |||
| 3500K | 2702 | 3560 | |||
| 4000K | 2805 | 3696 | |||
| 5000K | 2846 | 3750 | |||
| CRI>90 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 2165 | 2853 | |
| 3000K | 2227 | 2935 | |||
| 3500K | 2268 | 2989 | |||
| 4000K | 2351 | 3098 |
| Länge (A) | CRI | Bestellcode | Kelvin | 30W 250mA lm | 42W 350mA lm |
|---|---|---|---|---|---|
| 1410 mm | CRI>80 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 3292 | 4376 |
| 3000K | 3397 | 4516 | |||
| 3500K | 3450 | 4586 | |||
| 4000K | 3582 | 4761 | |||
| 5000K | 3635 | 4831 | |||
| CRI>90 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 2765 | 3675 | |
| 3000K | 2844 | 3781 | |||
| 3500K | 2897 | 3851 | |||
| 4000K | 3002 | 3991 |
| Länge (A) | CRI | Bestellcode | Kelvin | 36W 250mA lm | 50W 350mA lm |
|---|---|---|---|---|---|
| 1695 mm | CRI>80 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 4035 | 5340 |
| 3000K | 4164 | 5511 | |||
| 3500K | 4228 | 5596 | |||
| 4000K | 4390 | 5810 | |||
| 5000K | 4454 | 5895 | |||
| CRI>90 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 3389 | 4485 | |
| 3000K | 3486 | 4614 | |||
| 3500K | 3551 | 4699 | |||
| 4000K | 3680 | 4870 |
| Länge (A) | CRI | Bestellcode | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 1975 mm | CRI>80 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 4804 | 6322 |
| 3000K | 4958 | 6524 | |||
| 3500K | 5035 | 6625 | |||
| 4000K | 5227 | 6878 | |||
| 5000K | 5304 | 6979 | |||
| CRI>90 | I02.LL.18180 . (...) . (...) . (...) . (...) | 2700K | 4035 | 5310 | |
| 3000K | 4151 | 5462 | |||
| 3500K | 4228 | 5563 | |||
| 4000K | 4138 | 5765 |
| 2 | Länge (A) | 3 | Watt – Antriebsstrom | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Produktfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| 850mm | 20W | 20 W (direkt) – 250 mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | Weiß | |
| 24W | 24 W (direkt) – 350 mA | |||||||||
| 1130 mm | 24W | 24 W (direkt) – 250 mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34 W (direkt) – 350 mA | |||||||||
| 1410 mm | 30W | 30 W (direkt) – 250 mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | Schwarz | |
| 42W | 42 W (direkt) – 350 mA | |||||||||
| 1695 mm | 36W | 36 W (direkt) – 250 mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | grau | |
| 50W | 50 W (direkt) – 350 mA | |||||||||
| 1975 mm | 42W | 42 W (direkt) – 250 mA | 850 | CRI>80 - 5000K |  | 05 | dunkelgrau | |||
| 59W | 59 W (direkt) – 350 mA | |||||||||
 | 06 | Sonderfarbe |

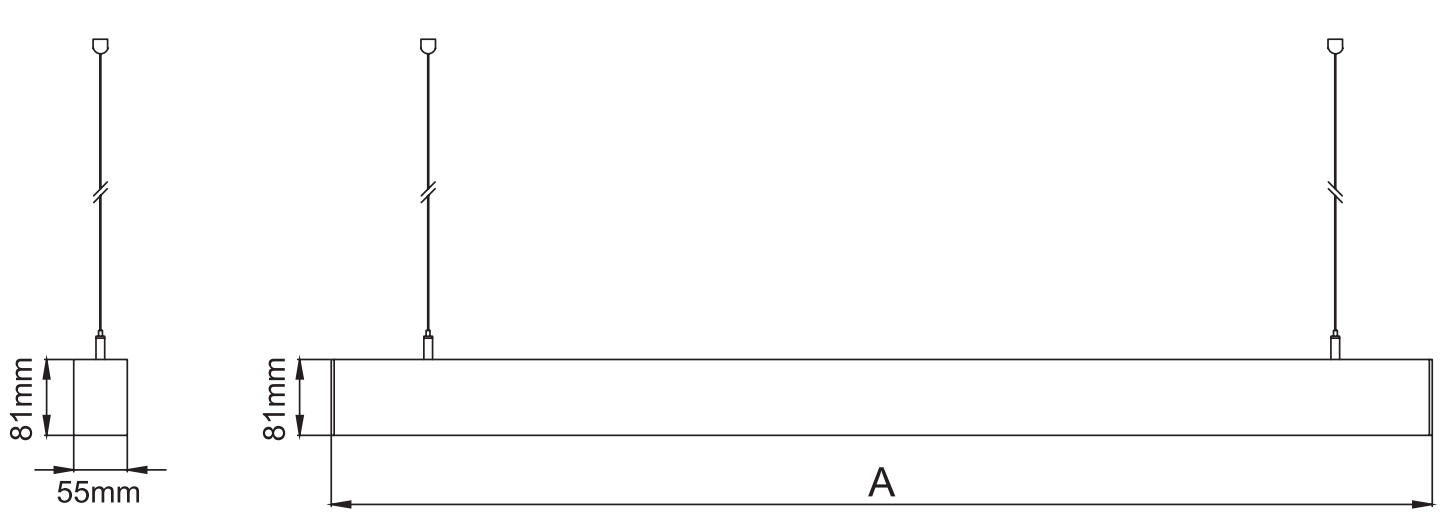

Teknik Çizimler

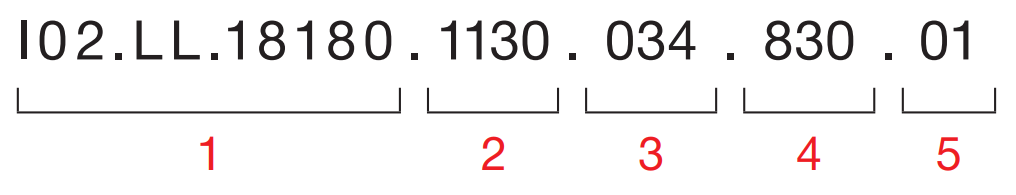

Kod Örneği
1- Produktcode / Armaturencode
2- Länge
3- Macht
4- CRI / Kelvin
5- Farbe / Produktfarbe
6- Steuerungstyp
