Narrow Suspendant
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 20-59W |
| Schutzklasse | IP20 |
| Form | Linear |
| Optisch | Diffusor |
| Breite, Höhe | 55x81mm |
| Montageart | Stalaktit |
AÇIKLAMA
Açıklama
| Ankerdaten | |
|---|---|
| Produktcode | I02.LL.19180.1135.034.830.01 |
| Nachname | Eng |
| Material | Aluminiumprofil |
| Format | linear |
| Profilbreite | 55mm |
| Profilhöhe | 81mm |
| Installationstyp | Pendelleuchte, Aufputzmontage und Schienenmontage |
| Produktivität | >92lm/W |
| CRI | 80 |
| Lichtverteilung | Symmetrischer Weitwinkel |
| Schutzklasse | 20 |
| Leuchtenleben | L70/B50 50000h |
| Optisch | Opal-Plexi |
| Alternativer Diffusor UGR<19 | mikroprismatisch |
Ürün Kodu Tablosu
| Länge (A) | CRI | Bestellcode | Kelvin | 20W 250mA lm | 27W 350mA lm |
|---|---|---|---|---|---|
| 855mm | CRI>80 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 1669 | 2252 |
| 3000K | 1722 | 2324 | |||
| 3500K | 1749 | 2360 | |||
| 4000K | 1816 | 2450 | |||
| 5000K | 1842 | 2486 | |||
| CRI>90 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 1402 | 1891 | |
| 3000K | 1442 | 1945 | |||
| 3500K | 1468 | 1981 | |||
| 4000K | 1522 | 2053 |
| Länge (A) | CRI | Bestellcode | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1135 mm | CRI>80 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 2029 | 2866 |
| 3000K | 2094 | 2957 | |||
| 3500K | 2127 | 3003 | |||
| 4000K | 2208 | 3118 | |||
| 5000K | 2240 | 3163 | |||
| CRI>90 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 1705 | 2406 | |
| 3000K | 1753 | 2475 | |||
| 3500K | 1785 | 2521 | |||
| 4000K | 1851 | 2612 |
| Länge (A) | CRI | Bestellcode | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1415 mm | CRI>80 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 2592 | 3693 |
| 3000K | 2674 | 3811 | |||
| 3500K | 2716 | 3870 | |||
| 4000K | 2820 | 4018 | |||
| 5000K | 2860 | 4077 | |||
| CRI>90 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 2177 | 3101 | |
| 3000K | 2239 | 3189 | |||
| 3500K | 2280 | 3248 | |||
| 4000K | 2364 | 3367 |
| Länge (A) | CRI | Bestellcode | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1695 mm | CRI>80 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 3176 | 4506 |
| 3000K | 3277 | 4651 | |||
| 3500K | 3329 | 4723 | |||
| 4000K | 3456 | 4903 | |||
| 5000K | 3506 | 4975 | |||
| CRI>90 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 2668 | 3784 | |
| 3000K | 2744 | 3892 | |||
| 3500K | 2794 | 3964 | |||
| 4000K | 2897 | 4108 |
| Länge (A) | CRI | Bestellcode | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 1975 mm | CRI>80 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 3783 | 5333 |
| 3000K | 3903 | 5504 | |||
| 3500K | 3964 | 5589 | |||
| 4000K | 4116 | 5802 | |||
| 5000K | 4175 | 5888 | |||
| CRI>90 | I02.LL.19180 . (...) . (...) . (...) . (...) | 2700K | 3178 | 4478 | |
| 3000K | 3268 | 4606 | |||
| 3500K | 3327 | 4692 | |||
| 4000K | 3456 | 4862 |
| 2 | Länge (A) | 3 | Watt – Antriebsstrom | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Produktfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| 855mm | 20W | 20 W (direkt) – 250 mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | Weiß | |
| 27W | 27 W (direkt) – 350 mA | |||||||||
| 1135 mm | 24W | 24 W (direkt) – 250 mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34 W (direkt) – 350 mA | |||||||||
| 1415 mm | 30W | 30 W (direkt) – 250 mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | Schwarz | |
| 43W | 43 W (direkt) – 350 mA | |||||||||
| 1695 mm | 36W | 36 W (direkt) – 250 mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | grau | |
| 51W | 51 W (direkt) – 350 mA | |||||||||
| 1975 mm | 42W | 42 W (direkt) – 250 mA | 850 | CRI>80 - 5000K |  | 05 | dunkelgrau | |||
| 59W | 59 W (direkt) – 350 mA | |||||||||
 | 06 | Sonderfarbe |

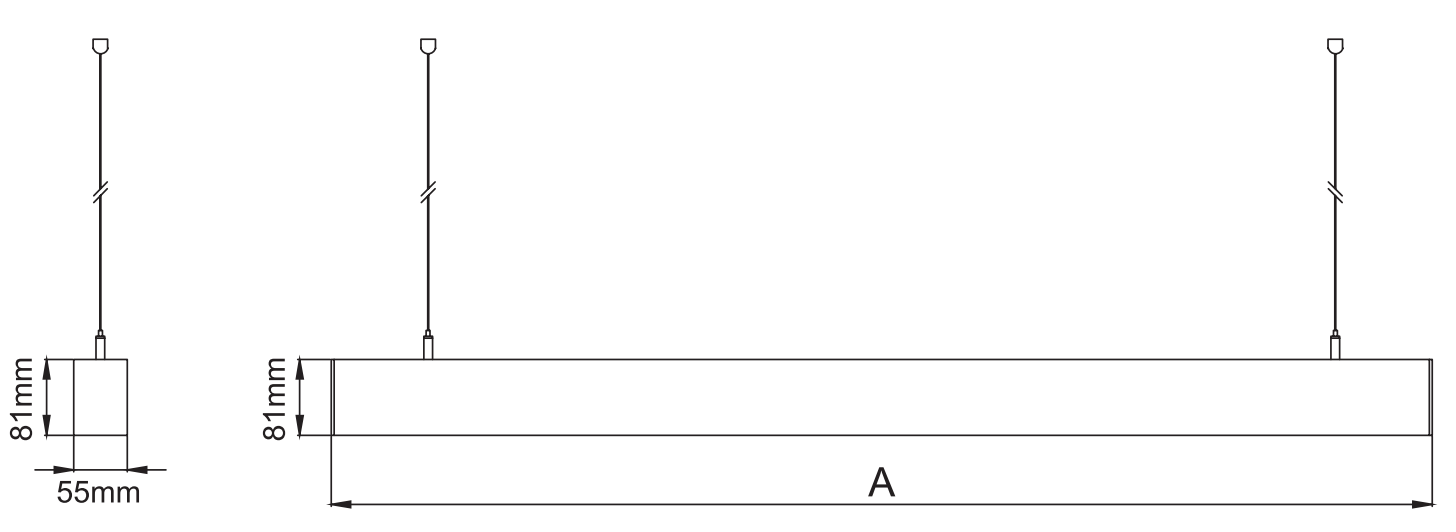

Teknik Çizimler

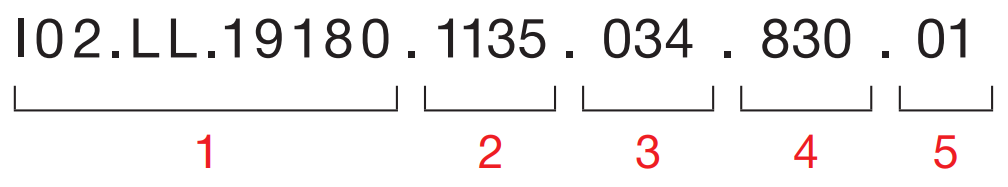

Kod Örneği
1- Produktcode / Armaturencode
2- Länge
3- Macht
4- CRI / Kelvin
5- Farbe / Produktfarbe
6- Steuerungstyp
