Midi Zebra

Name: Midi Zebra
Brand: AVOLUX
SKU: I01.MLR.25238

Ürün ikonları

Stok kodu: I01.MLR.25238

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Mechanical locking with 90° vertical and 350° horizontal movement capability joint system.

-- Tempered glass.

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

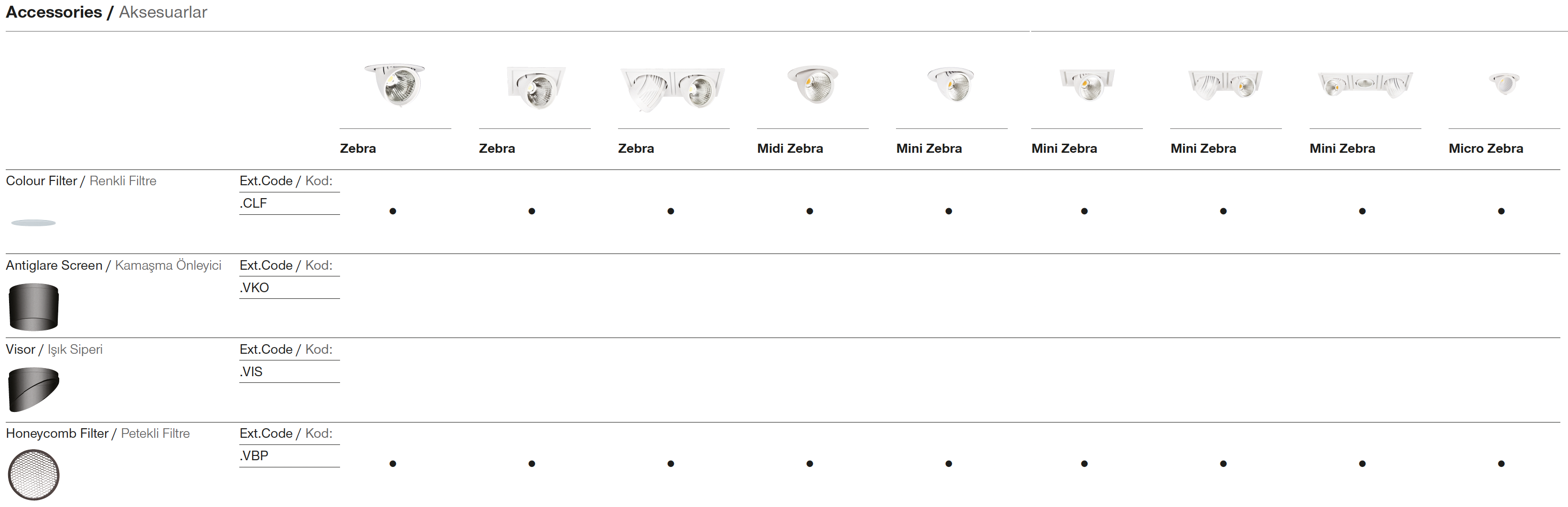

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 140lm/W.

-- High color compatibility: <3 SDCM

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
31W	CRI>80	I01.MLR.25238 . (..) . (...) . (..) . (..)	2700K	3759
			3000K	3911
			3500K	4048
			4000K	4190
			5000K	4483
	CRI>90	I01.MLR.25238 . (..) . (...) . (..) . (..)	2700K	3383
			3000K	3467
			3500K	3589
			4000K	3715
			5000K	X
	CRI>98	I01.MLR.25238 . (..) . (...) . (..) . (..)	2700K	2680
			3000K	2795
			4000K	2990
	Meat COB	I01.MLR.25238 . (..) . (...) . (..) . (..)	1800K	2164
	Food COB	I01.MLR.25238 . (..) . (...) . (..) . (..)	2400K	2227
	Pisces COB	I01.MLR.25238 . (..) . (...) . (..) . (..)	6600K	2945

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
31	31W - 800mA	827	CRI>80 - 2700K	9827	CRI>98 - 2700K	SP	20° - Spot	01	white
28	28W - 700mA	830	CRI>80 - 3000K	9830	CRI>98 - 3000K	M.E.	35° - Medium	02	ral 9010
24	24W - 600mA	835	CRI>80 - 3500K	9840	CRI>98 -4000K	W.F.	50° - Wide Flood	03	black
20	20W - 500mA	840	CRI>80 - 4000K	MEAT	1800K			04	gray
		850	CRI>80 - 5000K	GOLD	2400K			05	dark gray
		927	CRI>90 - 2700K	fish	6600K			06	special color
		930	CRI>90 - 3000K
		935	CRI>90 - 3500K
		940	CRI>90 - 4000K
