Meteor Mega Highbay
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 225W |
| Protection Class | IP65 |
| Shape | Stalactite |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED high ceiling fixture with symmetrical light output.
-- Corrosion resistant aluminum injection body.
-- It has a bracket or chain mounting system.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature
options are available.
-- IP protection is provided without any problems with silicone gaskets.
-- All external screws are stainless.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint.
-- Efficiency up to 159lm/W.
-- High color compatibility: <3 SDCM
-- Stainless cable gland is used in the armature.
-- 1-10V and DALI control system options are available.
-- Safe system with L80 B10 50000 hour life parameters.
-- Five-year warranty.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 225W | CRI>70 | O07.WL.18240 . (..) . (...) . (..) . (..) | 2700K | 33192 |
| 3000K | 33516 | |||
| 3500K | 33850 | |||
| 4000K | 34166 | |||
| 5000K | 34494 | |||
| 6500K | 35150 | |||
| CRI>80 | O07.WL.18240 . (..) . (...) . (..) . (..) | 2700K | 30584 | |
| 3000K | 30909 | |||
| 3500K | 31900 | |||
| 4000K | 32862 | |||
| 5000K | 32894 | |||
| 6500K | 33550 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 225 | 225W | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | M.E. | 60° - Medium |  | 01 | white |
| 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | FL | 90° - Flood |  | 02 | ral 9010 | ||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | W.F. | 120° - Wide Flood |  | 03 | black | ||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | 865 | CRI>80 - 6500K |  | 06 | special color | |||||

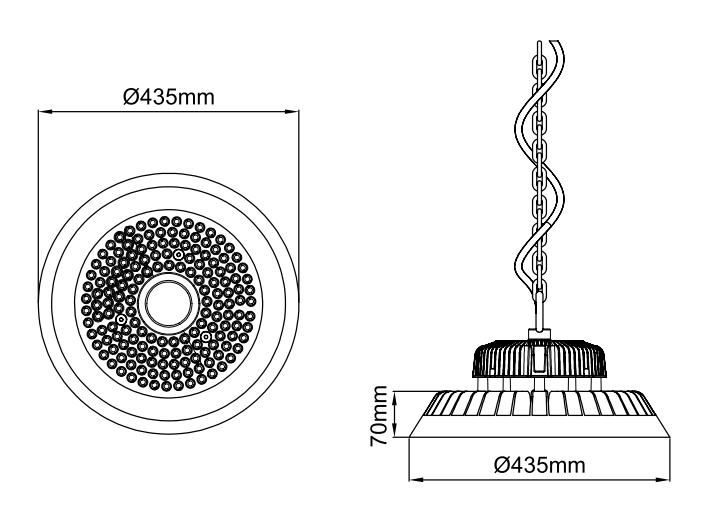

Teknik Çizimler

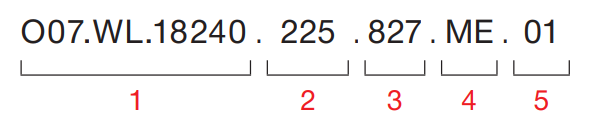

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
