Market Track Mounted
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 50-67W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 133-86mm |
| Mounting Type | Rail Mounted |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19205.1180.067.830.01 |
| Family Name | Market |
| Material | Aluminum Profile |
| Format | Linear Motion |
| Profile Width | 133mm |
| Profile Height | 86mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >90lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Alternative Diffuser UGR<19 | microprismatic |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 900mm 50W 350mA lm | 1180mm 67W 350mA lm |
|---|---|---|---|---|---|
| 900mm - 50W | CRI>80 | I02.LL.19225 . (...) . (...) . (...) . (...) | 2700K | 3897 | 5512 |
| 1180mm - 67W | 3000K | 4022 | 5688 | ||
| 3500K | 4084 | 5776 | |||
| 4000K | 4240 | 5997 | |||
| 5000K | 4302 | 6085 | |||
| CRI>90 | I02.LL.19225 . (...) . (...) . (...) . (...) | 2700K | 3273 | 4630 | |
| 3000K | 3367 | 4762 | |||
| 3500K | 3429 | 4850 | |||
| 4000K | 3554 | 5027 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 900mm | 50W | 50W (Direct) - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 1180mm | 67W | 67W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

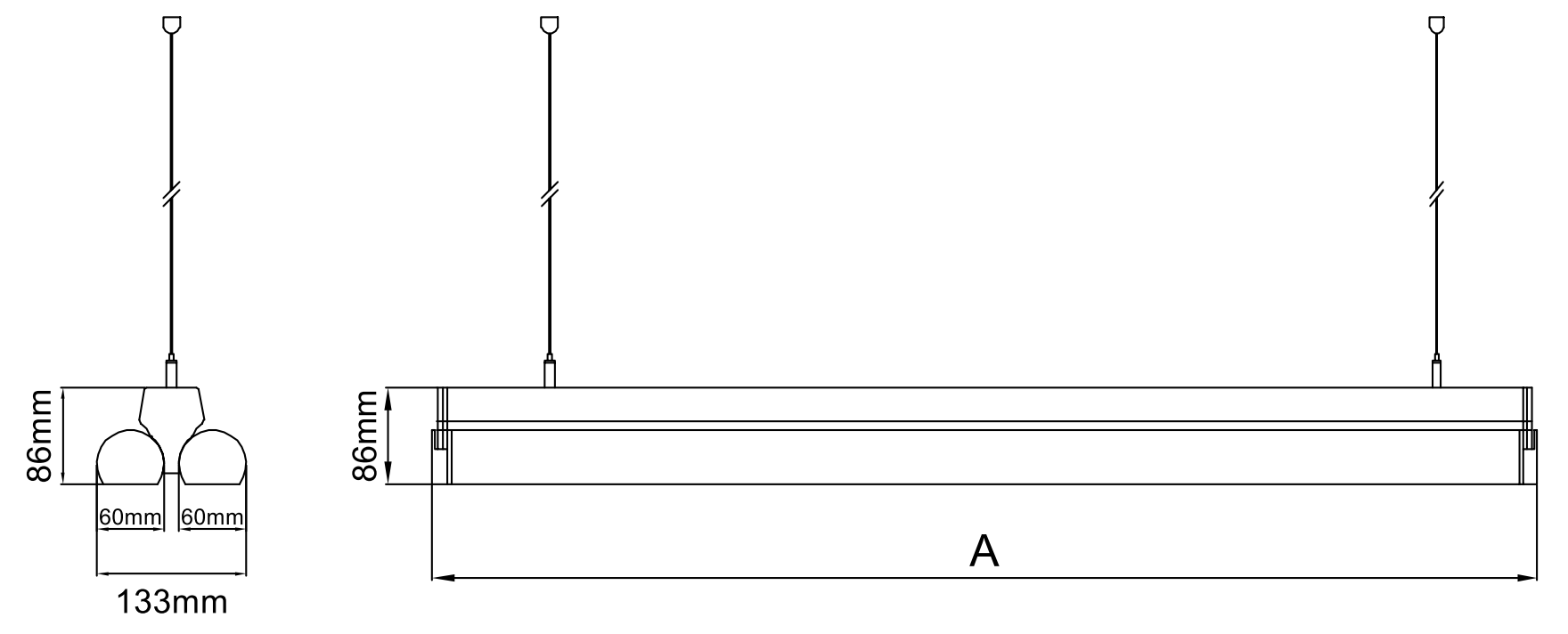

Teknik Çizimler

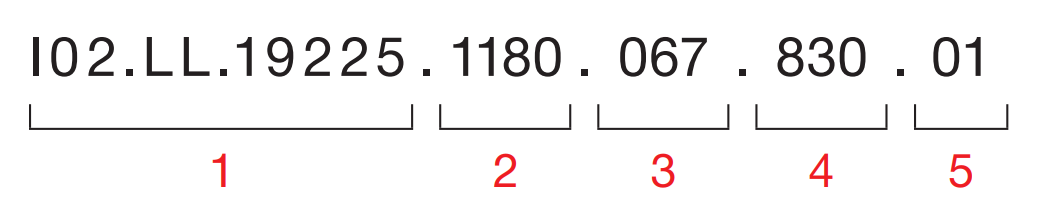

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
