Kupa
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 42W |
| Protection Class | IP44 |
| Optical | diffuser |
| width, length | 600x600mm |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19740.042.830.01.V1 |
| Family Name | Cup |
| Material | Polycarbonate Body |
| Format | Square |
| Measurement | 595x595mm |
| Height | 55mm |
| Productivity | >115lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 44 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Alternative Diffuser UGR<19 | microprismatic |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 42W 1050mA lm |
|---|---|---|---|---|
| 595x595mm | CRI>80 | I02.LL.19740 . (...) . (...) . (...) . (... | 2700K | 4444 |
| 3000K | 4586 | |||
| 3500K | 4657 | |||
| 4000K | 4835 | |||
| 5000K | 4906 | |||
| CRI>90 | I02.LL.19740 . (...) . (...) . (...) . (...) | 2700K | 3733 | |
| 3000K | 3839 | |||
| 3500K | 3911 | |||
| 4000K | 4053 |
| Length | watts | Watts - Driving Current | CRI/Kelvin | CRI/Kelvin | Product Color | Product Color | |||
|---|---|---|---|---|---|---|---|---|---|
| 595x595mm | 42W | 42W (Direct) - 1050mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
 | 06 | special color |

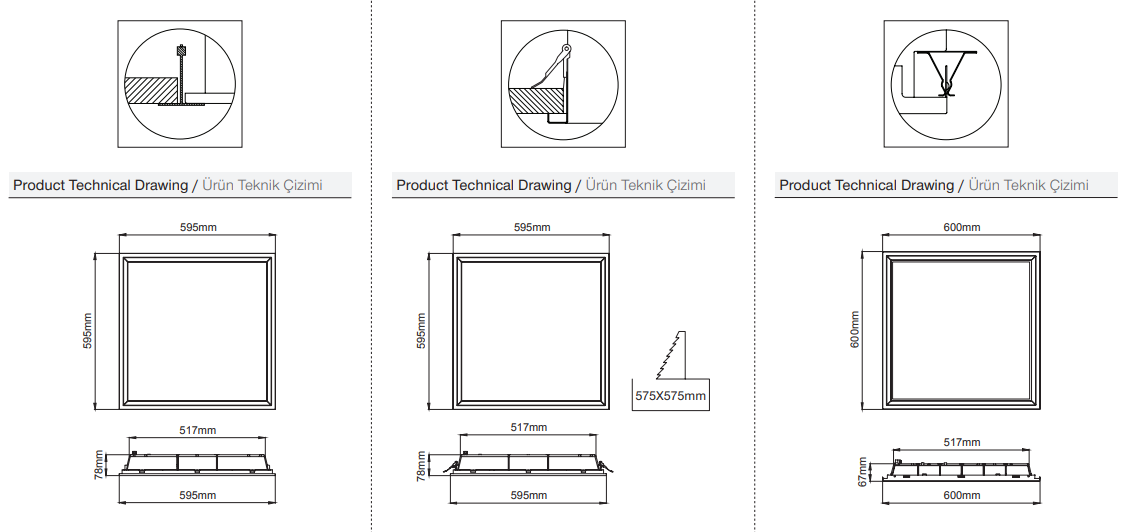

Teknik Çizimler

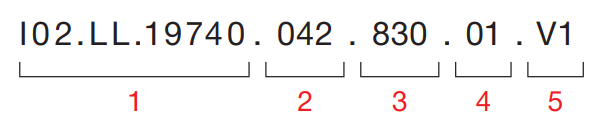

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Ceiling Type / Ceiling type
6- Control type

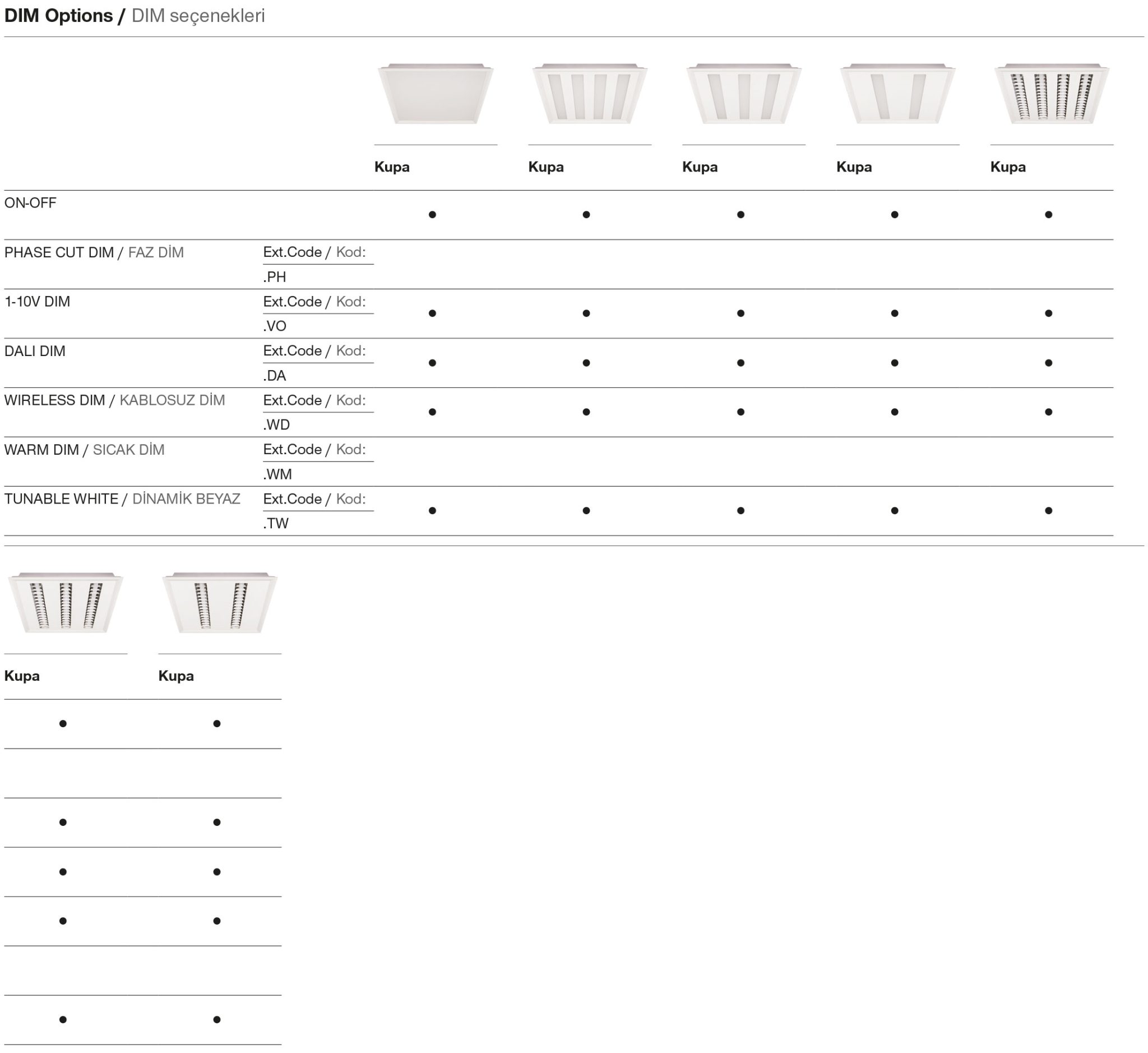

DIM Seçenekleri
