Karo
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 30W |
| Protection Class | IP40 |
| Optical | diffuser |
| width, length | 600x600mm |
AÇIKLAMA
Açıklama
PANEL creates a light window appearance on walls and ceilings. Suitable for general lighting. It has an aluminum profile structure. Rockwool ceiling and built-in options are available. With its built-in version with the same thinness, it provides ease of application in areas with low plasterboard depth. Maximum efficiency is achieved with the high efficiency LGP diffuser.
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 30W 700mA lm |
|---|---|---|---|---|
| 595x595mm | CRI>80 | I02.LL.19771 . (...) . (...) . (...) | 2700K | 1889 |
| 3000K | 1950 | |||
| 3500K | 1980 | |||
| 4000K | 2056 | |||
| 5000K | 2086 | |||
| CRI>90 | I02.LL.19771 . (...) . (...) . (...) | 2700K | 1587 | |
| 3000K | 1632 | |||
| 3500K | 1663 | |||
| 4000K | 1723 |
| 2 | Length (AxB) | watts | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | Product Color | 5 | Product Color |
|---|---|---|---|---|---|---|---|---|---|---|
| 595x595mm | 42W | 42W (Direct) - 1050mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 595x595mm | 30W | 30W (Direct) - 700mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 595x595mm | 20W | 20W (Direct) - 500mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

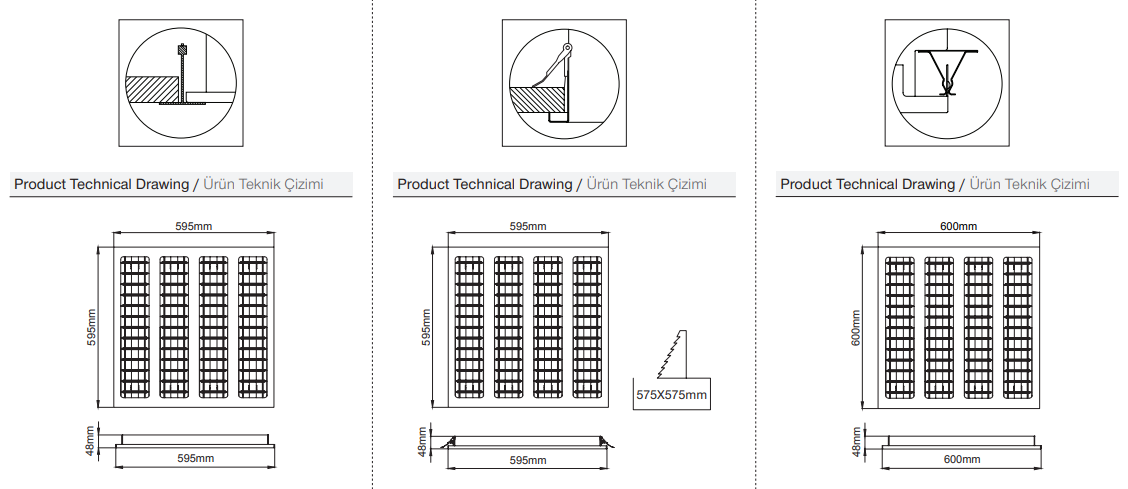

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Ceiling Type / Ceiling type
6- Control type

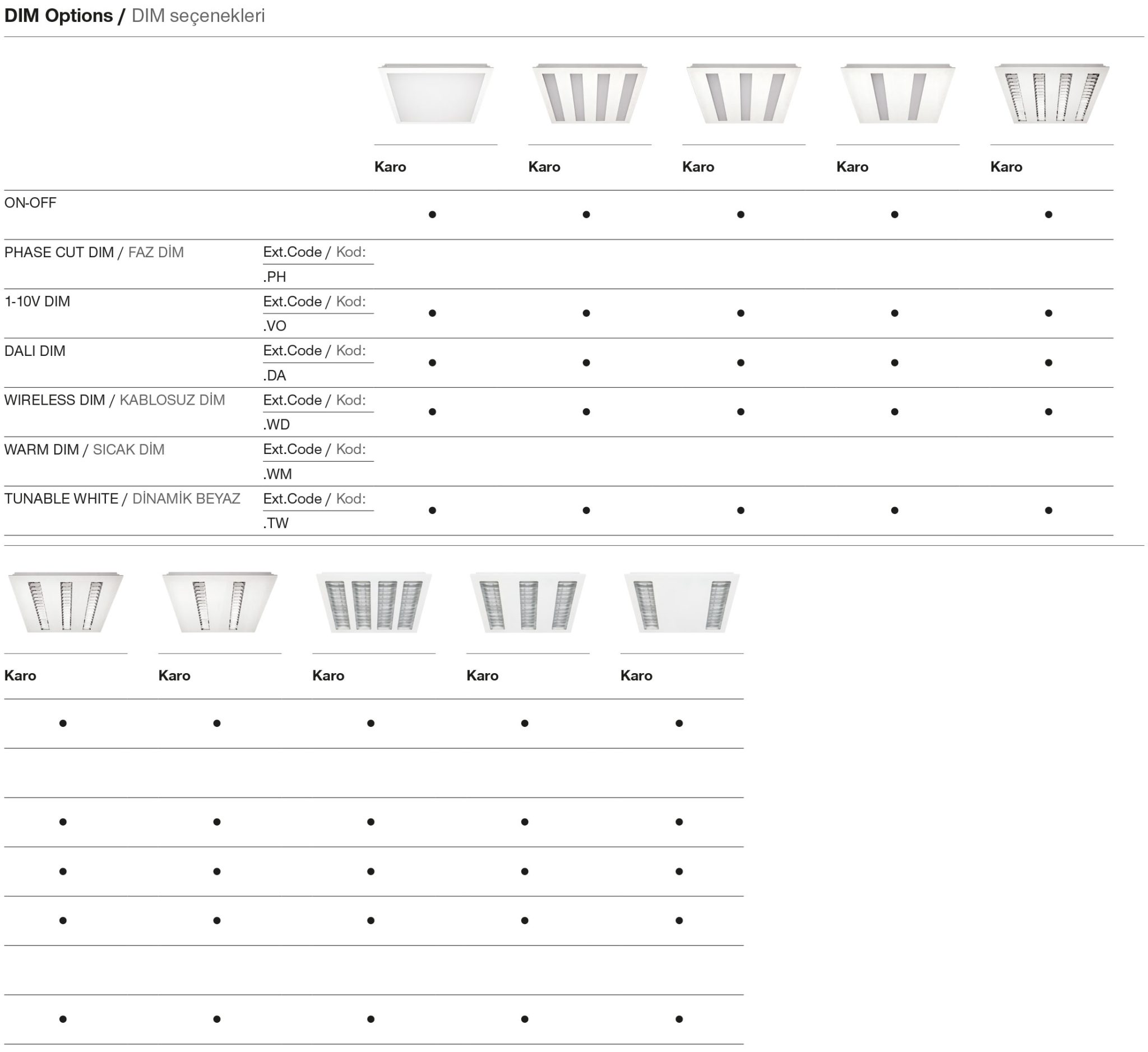

DIM Seçenekleri
