Karin Mini Downlight
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 10W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | diffuser |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM and Dynamic White with high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Very wide reflector angle options are available.
-- Standard CRI>80 and high CRI>90 LED options are available.
-- Efficiency up to 92lm/W.
-- High color compatibility: <3 SDCM.
-- IP44 protection class.
-- Emergency lighting kit system can be applied.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>80 | I02.PLR.15086 . (..) . (...) . (..) . (..) | 2700K | 855 |
| 3000K | 880 | |||
| 3500K | 900 | |||
| 4000K | 918 | |||
| 5000K | 945 | |||
| CRI>90 | I02.PLR.15086 . (..) . (...) . (..) . (..) | 2700K | 795 | |
| 3000K | 818 | |||
| 3500K | 837 | |||
| 4000K | 854 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.15086 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 10W - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 65° - Wide Flood |  | 01 | white |
| 8 | 8W - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

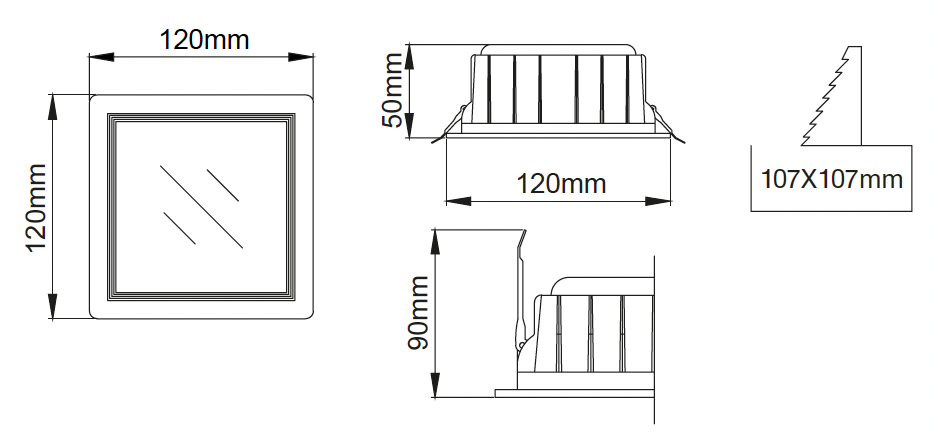

Teknik Çizimler

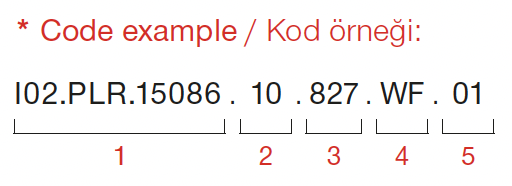

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

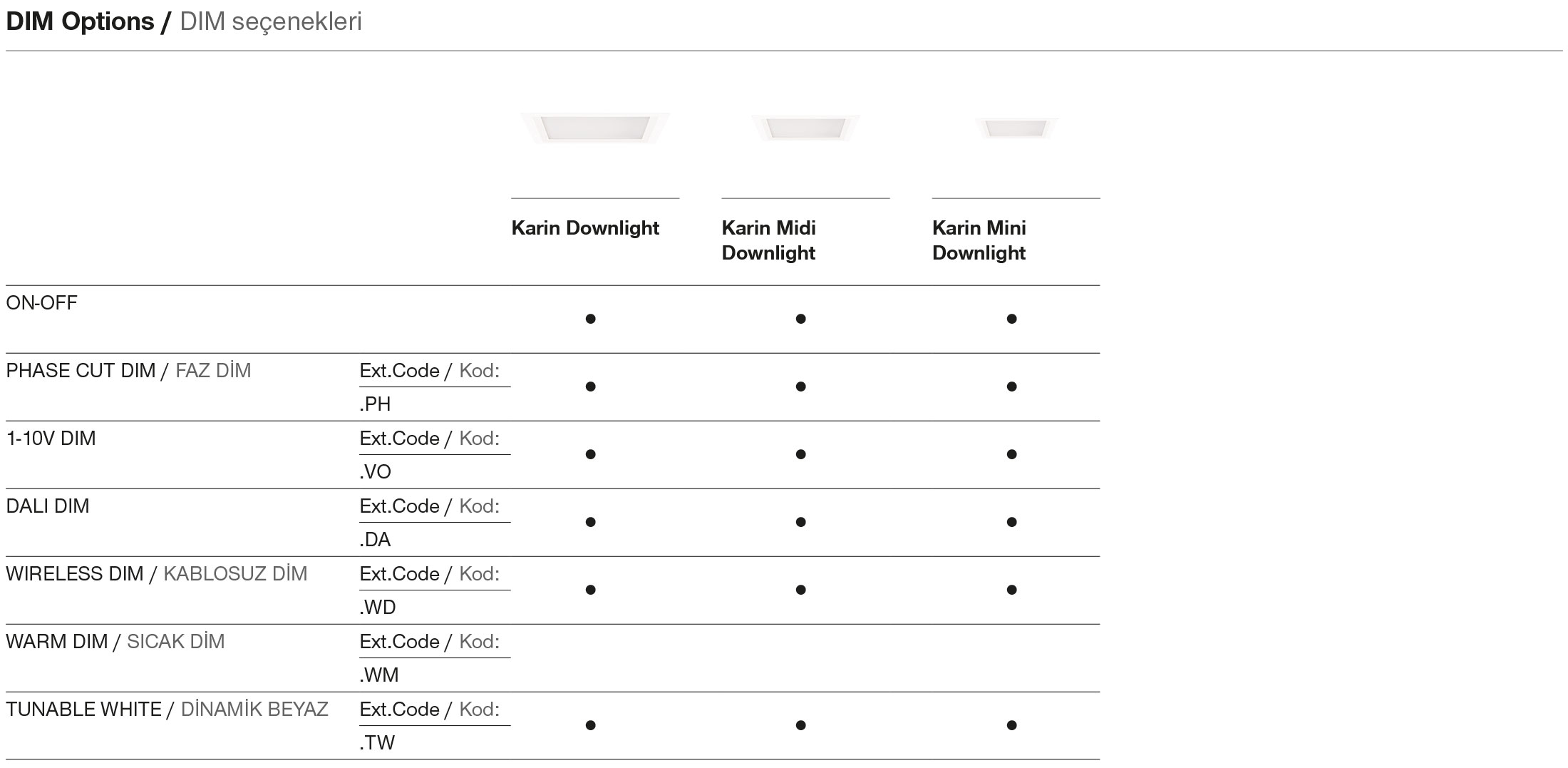

DIM Seçenekleri

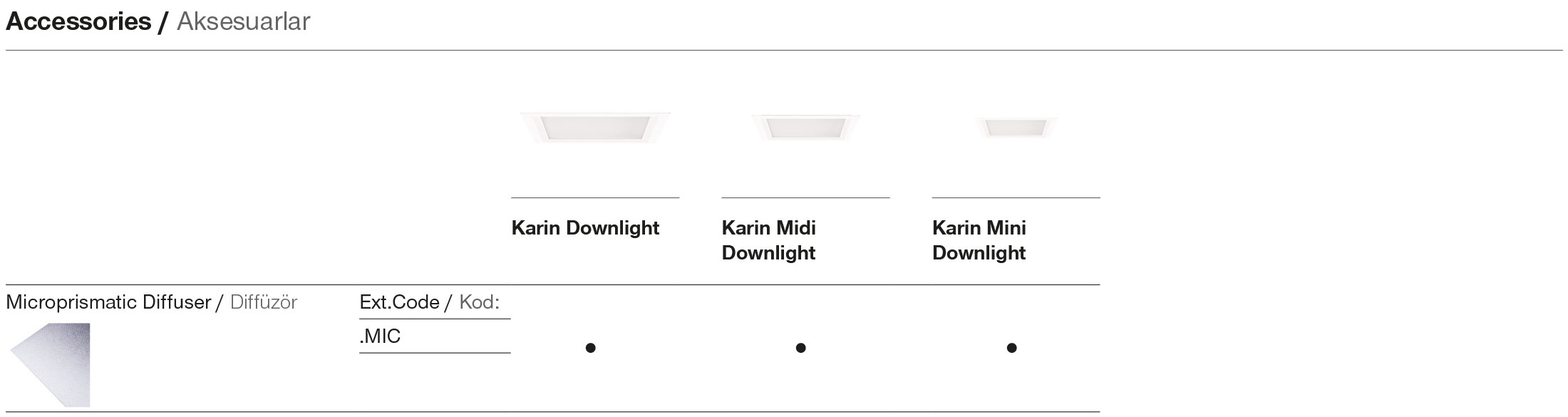

Aksesuarlar
