Karin Midi Downlight

Name: Karin Midi Downlight
Brand: AVOLUX
SKU: I02.PLR.15084

Ürün ikonları

Stok kodu: I02.PLR.15084

Kategoriler: Power LED Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

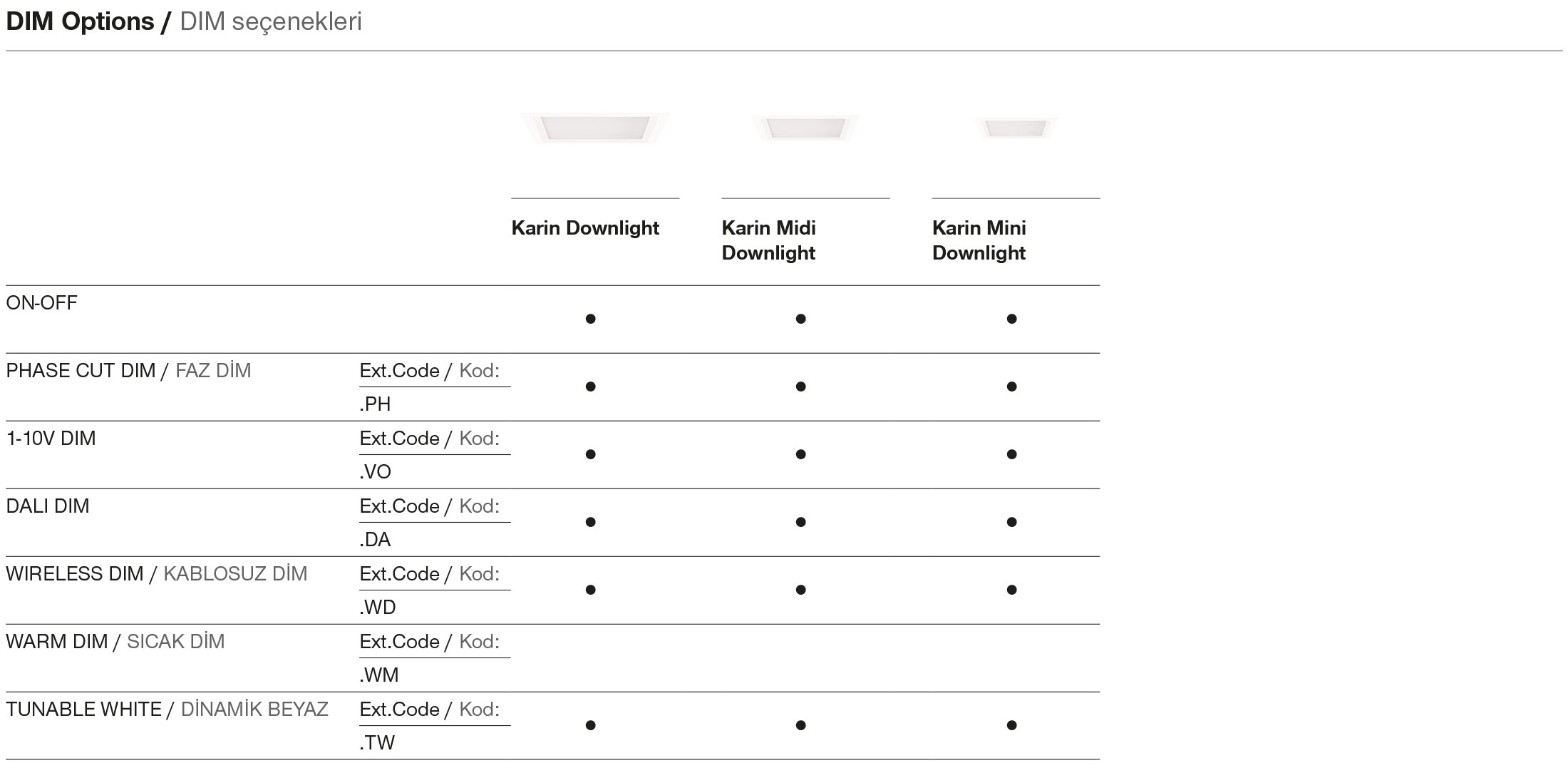

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- Wireless DIM and Dynamic White with high-tech control systems applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- Very wide reflector angle options are available.

-- Standard CRI>80 and high CRI>90 LED options are available.

-- Efficiency up to 92lm/W.

-- High color compatibility: <3 SDCM.

-- IP44 protection class.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
19W	CRI>80	I02.PLR.15084 . (..) . (...) . (..) . (..)	2700K	1520
			3000K	1565
			3500K	1600
			4000K	1631
			5000K	1680
	CRI>90	I02.PLR.15084 . (..) . (...) . (..) . (..)	2700K	1413
			3000K	1455
			3500K	1488
			4000K	1517
			5000K	X
	CRI>98	I02.PLR.15084 . (..) . (...) . (..) . (..)	2700K	X
			3000K	X
			4000K	X

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
19	19W - 600mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	W.F.	65° - Wide Flood	01	white
14	14W - 450mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K			02	ral 9010
		835	CRI>80 - 3500K	935	CRI>90 - 3500K			03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
