| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 60W |
| Protection Class | IP40 |
| Optical | diffuser |
| Mounting Type | Standing Floor Lamp |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.90220.060.830.01 |
| Family Name | Aegean |
| Material | Aluminum Profile |
| Installation Type | Standing Floor Lamp |
| Productivity | >130lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
Ürün Kodu Tablosu
| watts | CRI | Order Code | Kelvin | 30W lm ↓ | 30W lm ↑ |
|---|---|---|---|---|---|
| 60W | CRI>80 | I02.LL.90220 . (...) . (...) . (...) . (...) | 2700K | 3675 | 3675 |
| 3000K | 3745 | 3745 | |||
| 3500K | 3825 | 3825 | |||
| 4000K | 3900 | 3900 | |||
| 5000K | 4015 | 4015 | |||
| CRI>90 | I02.LL.90220 . (...) . (...) . (...) . (...) | 2700K | 3420 | 3420 | |
| 3000K | 3485 | 3485 | |||
| 3500K | 3555 | 3555 | |||
| 4000K | 3625 | 3625 |
| 2 | watts | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 60W | 30W | 30W (Direct) | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 30W | 30W (Indirect) | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

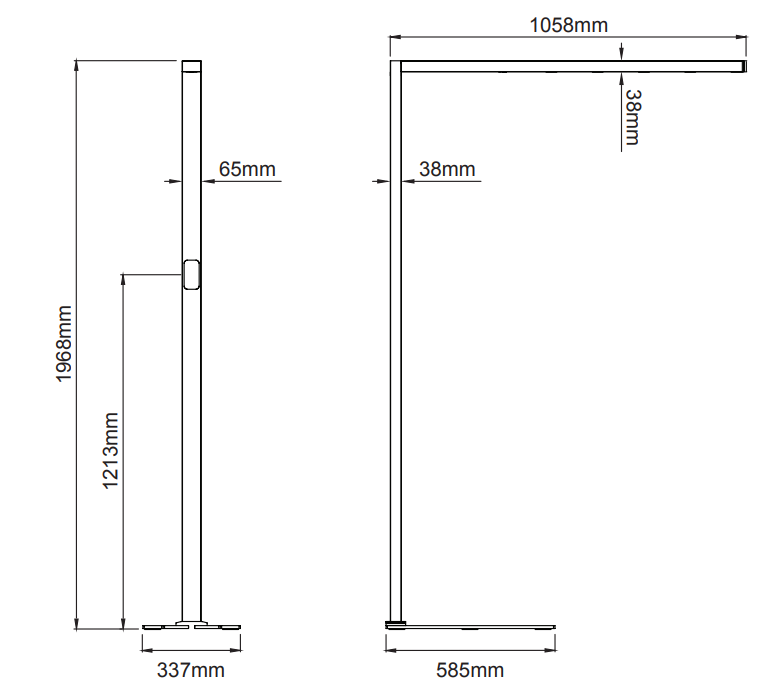

Teknik Çizimler

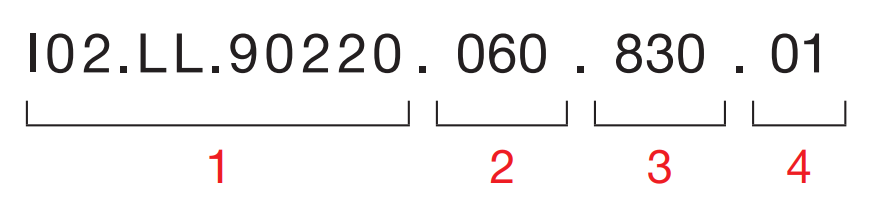

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Control type
