Delta Flux

Name: Delta Flux
Brand: AVOLUX
SKU: I01.MLR.16016

Ürün ikonları

Stok kodu: I01.MLR.16016

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Mechanical locking with 30° vertical and 30° horizontal movement capability joint system.

-- Tempered glass.

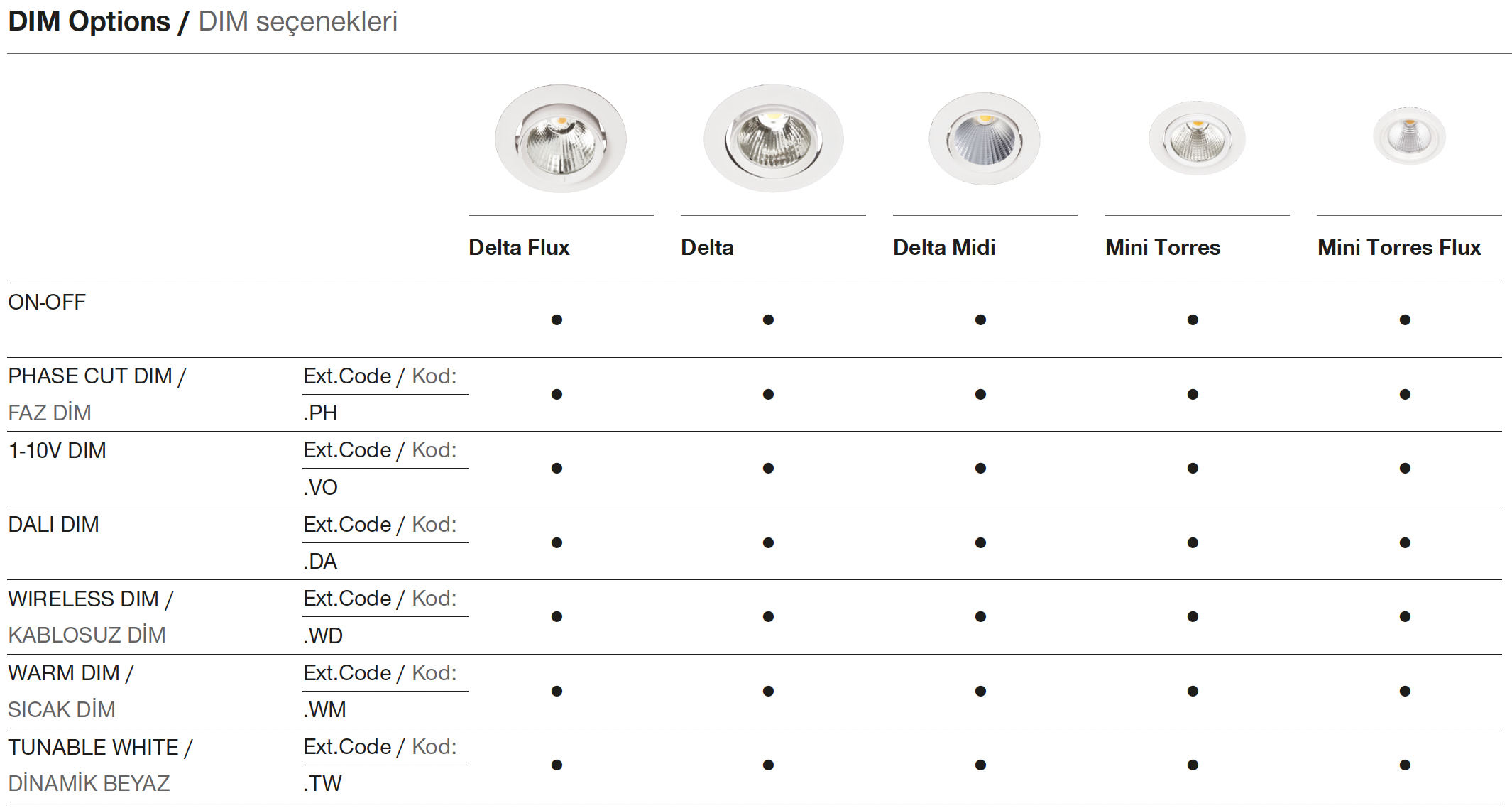

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

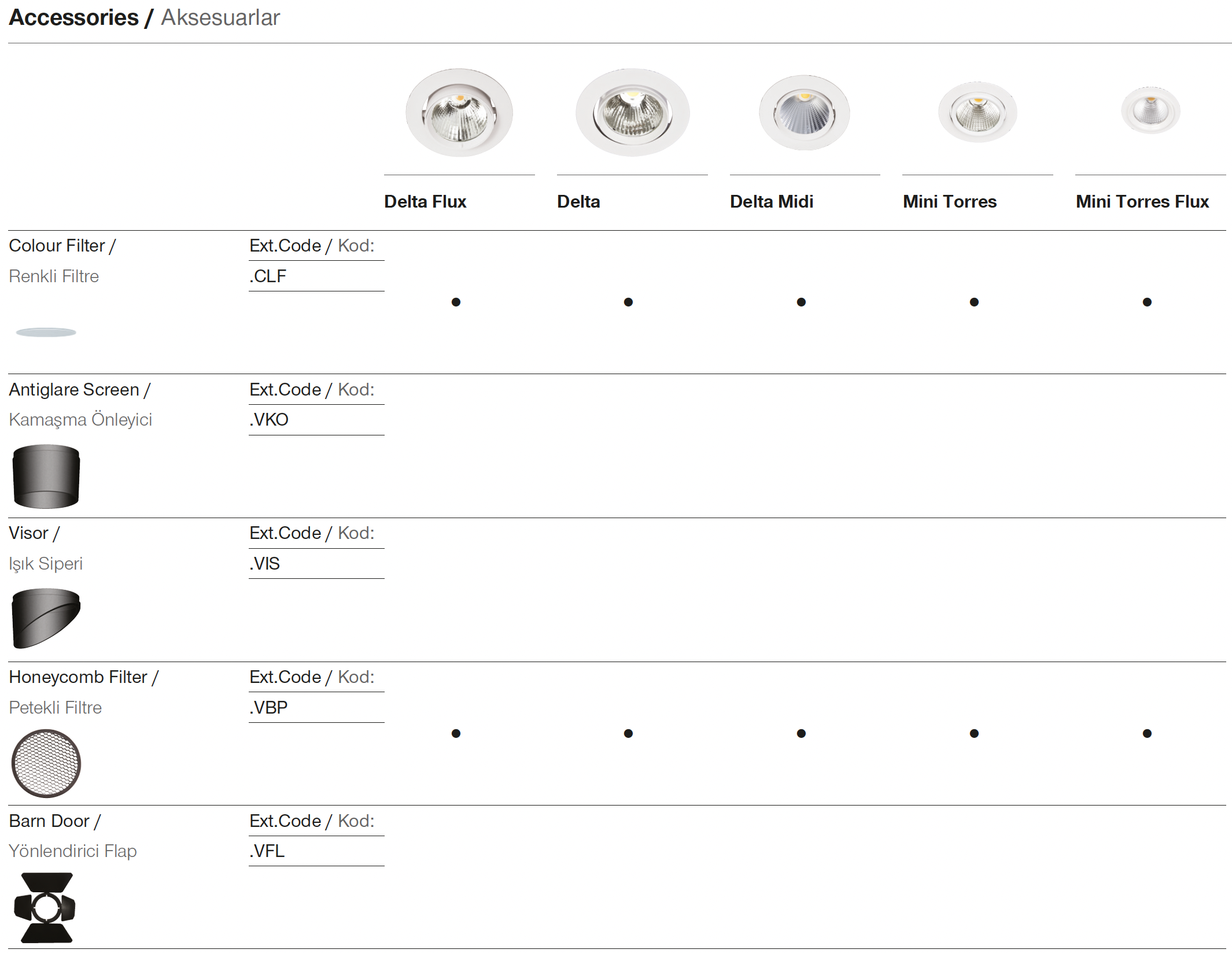

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 144lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
48W	CRI>80	I01.MLR.16016 . (..) . (...) . (..) . (..)	2700K	5511
			3000K	5647
			3500K	5845
			4000K	6050
			5000K	6473
	CRI>90	I01.MLR.16016 . (..) . (...) . (..) . (..)	2700K	4958
			3000K	5082
			3500K	5200
			4000K	5444
			5000K	X
	CRI>98	I01.MLR.16016 . (..) . (...) . (..) . (..)	2700K	4229
			3000K	4382
			4000K	4688
	Meat COB	I01.MLR.16016 . (..) . (...) . (..) . (..)	1800K	3362
	Food COB	I01.MLR.16016 . (..) . (...) . (..) . (..)	2400K	3475
	Pisces COB	I01.MLR.16016 . (..) . (...) . (..) . (..)	6600K	4595

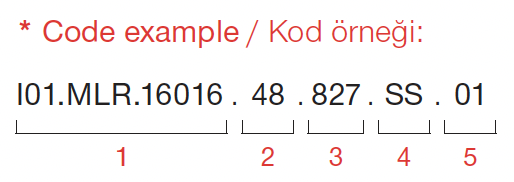

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
48	48W - 1200mA	827	CRI>80 - 2700K	9827	CRI>98 - 2700K	SS	12° - Super Spot	01	white
42	42W - 1050mA	830	CRI>80 - 3000K	9830	CRI>98 - 3000K	SP	20° - Spot	02	ral 9010
35	35W - 900mA	835	CRI>80 - 3500K	9840	CRI>98 -4000K	M.E.	30° - Medium	03	black
31	31W - 800mA	840	CRI>80 - 4000K	MEAT	1800K	FL	40° - Flood	04	gray
		850	CRI>80 - 5000K	GOLD	2400K	W.F.	60° - Wide Flood	05	dark gray
		927	CRI>90 - 2700K	fish	6600K			06	special color
		930	CRI>90 - 3000K
		935	CRI>90 - 3500K
		940	CRI>90 - 4000K
