Darkline Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 14-49W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 68-90mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19295.1144.034.830.01 |
| Family Name | Darkline |
| Material | Aluminum |
| Format | linear |
| Profile Width | 68mm |
| Profile Height | 90mm |
| Installation Type | Stalactite |
| Productivity | >59lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Open |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Black Lamellar |
| UGR | <19 |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 14W 250mA lm | 18W 350mA lm |
|---|---|---|---|---|---|
| 584mm | CRI>80 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 720 | 920 |
| 3000K | 743 | 949 | |||
| 3500K | 755 | 964 | |||
| 4000K | 784 | 1001 | |||
| 5000K | 795 | 1015 | |||
| CRI>90 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 605 | 772 | |
| 3000K | 622 | 794 | |||
| 3500K | 634 | 809 | |||
| 4000K | 657 | 839 |
| Length (A) | CRI | Order Code | Kelvin | 19W 250mA lm | 26W 350mA lm |
|---|---|---|---|---|---|
| 864mm | CRI>80 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 1012 | 1378 |
| 3000K | 1045 | 1422 | |||
| 3500K | 1061 | 1444 | |||
| 4000K | 1102 | 1500 | |||
| 5000K | 1118 | 1522 | |||
| CRI>90 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 850 | 1158 | |
| 3000K | 875 | 1191 | |||
| 3500K | 891 | 1213 | |||
| 4000K | 923 | 1257 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1144mm | CRI>80 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 1333 | 1842 |
| 3000K | 1376 | 1900 | |||
| 3500K | 1397 | 1930 | |||
| 4000K | 1451 | 2004 | |||
| 5000K | 1472 | 2033 | |||
| CRI>90 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 1120 | 1547 | |
| 3000K | 1152 | 1591 | |||
| 3500K | 1173 | 1621 | |||
| 4000K | 1216 | 1679 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 42W 350mA lm |
|---|---|---|---|---|---|
| 1424mm | CRI>80 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 1682 | 2298 |
| 3000K | 1735 | 2372 | |||
| 3500K | 1762 | 2409 | |||
| 4000K | 1830 | 2501 | |||
| 5000K | 1857 | 2538 | |||
| CRI>80 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 1412 | 1931 | |
| 3000K | 1453 | 1986 | |||
| 3500K | 1480 | 2023 | |||
| 4000K | 1534 | 2096 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 49W 350mA lm |
|---|---|---|---|---|---|
| 1704mm | CRI>80 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 2051 | 2763 |
| 3000K | 2117 | 2851 | |||
| 3500K | 2150 | 2895 | |||
| 4000K | 2232 | 3006 | |||
| 5000K | 2265 | 3050 | |||
| CRI>90 | I02.LL.19295 . (...) . (...) . (...) . (...) | 2700K | 1723 | 2320 | |
| 3000K | 1772 | 2387 | |||
| 3500K | 1805 | 2431 | |||
| 4000K | 1871 | 2519 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 584mm | 14W | 14W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 18W | 18W (Direct) - 350mA | |||||||||
| 864mm | 19W | 19W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 26W | 26W (Direct) - 350mA | |||||||||
| 1144mm | 24W | 24W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 34W | 34W (Direct) - 350mA | |||||||||
| 1424mm | 30W | 30W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 42W | 42W (Direct) - 350mA | |||||||||
| 1704mm | 36W | 36W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 49W | 49W (Direct) - 350mA | |||||||||
 | 06 | special color |

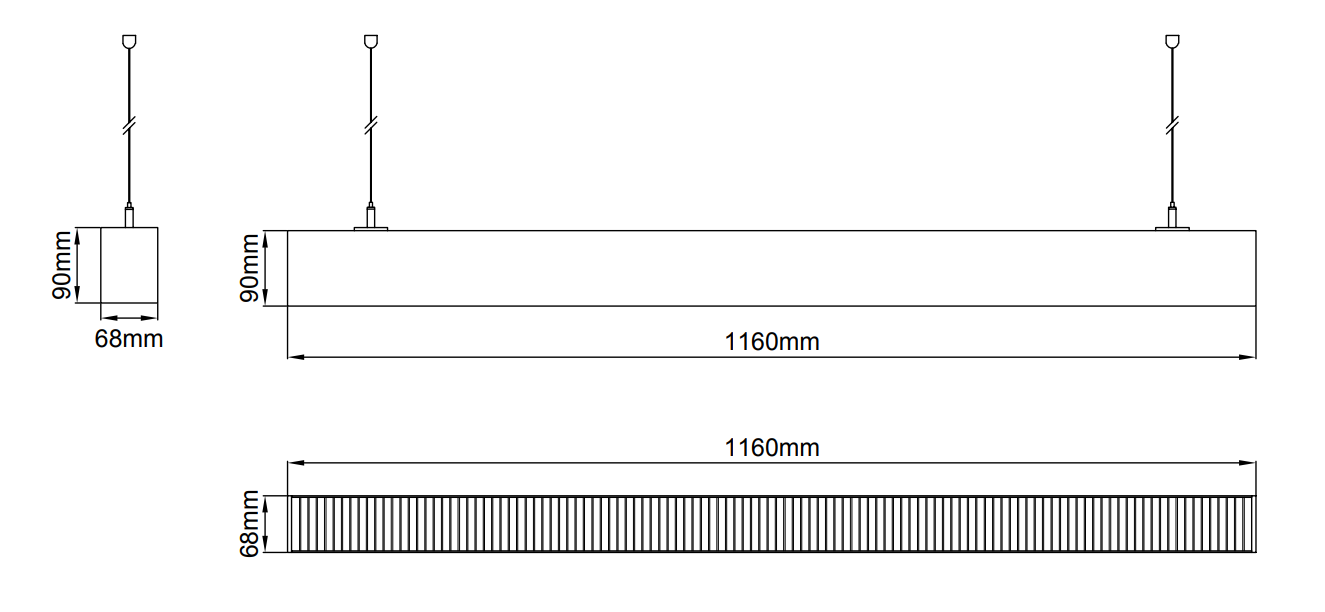

Teknik Çizimler

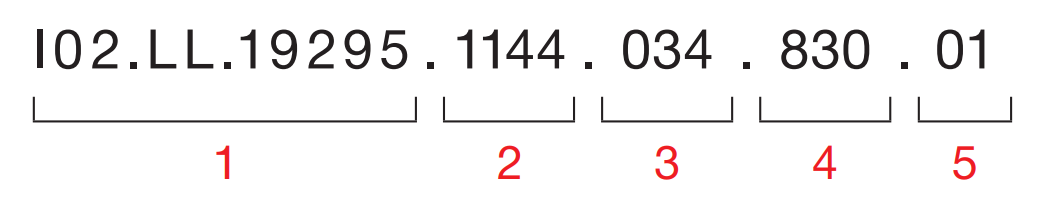

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
