Cubus Surface Mounted
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20-59W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 90-90mm |
| Mounting Type | surface mounted |
AÇIKLAMA
Açıklama
CUBUS provides lighting solutions in offices, stores, hospitals, etc. Both opal and Microprismatic options are available to reduce glare. 2700K, 3000K, 3500K, 4000K and 5000K options can be applied with different power, size and DIM preferences. DIM options include DALI, Dynamic White, Wireless DIM. Pendant direct, pendant direct/indirect, surface mounted, rail mounted and recessed mounting options are available.
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 27W 350mA lm |
|---|---|---|---|---|---|
| 855mm | CRI>80 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 1944 | 2611 |
| 3000K | 2007 | 2693 | |||
| 3500K | 2038 | 2737 | |||
| 4000K | 2116 | 2842 | |||
| 5000K | 2147 | 2883 | |||
| CRI>90 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 1633 | 2193 | |
| 3000K | 1680 | 2256 | |||
| 3500K | 1711 | 2298 | |||
| 4000K | 1773 | 2382 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1135mm | CRI>80 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 2365 | 3323 |
| 3000K | 2440 | 3430 | |||
| 3500K | 2478 | 3483 | |||
| 4000K | 2573 | 3616 | |||
| 5000K | 2610 | 3669 | |||
| CRI>90 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 1986 | 2791 | |
| 3000K | 2042 | 2871 | |||
| 3500K | 2081 | 2924 | |||
| 4000K | 2156 | 3031 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1415mm | CRI>80 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 3019 | 4283 |
| 3000K | 3116 | 4420 | |||
| 3500K | 3165 | 4489 | |||
| 4000K | 3286 | 4660 | |||
| 5000K | 3334 | 4728 | |||
| CRI>90 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 2536 | 3597 | |
| 3000K | 2609 | 3700 | |||
| 3500K | 2657 | 3768 | |||
| 4000K | 2754 | 3906 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1695mm | CRI>80 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 3701 | 5226 |
| 3000K | 3819 | 5394 | |||
| 3500K | 3879 | 5478 | |||
| 4000K | 4027 | 5687 | |||
| 5000K | 4086 | 5770 | |||
| CRI>90 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 3109 | 4389 | |
| 3000K | 3197 | 4515 | |||
| 3500K | 3257 | 4598 | |||
| 4000K | 3375 | 4767 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 1975mm | CRI>80 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 4410 | 6186 |
| 3000K | 4550 | 6385 | |||
| 3500K | 4620 | 6483 | |||
| 4000K | 4797 | 6731 | |||
| 5000K | 4867 | 6830 | |||
| CRI>90 | I02.LL.19154 . (...) . (...) . (...) . (...) | 2700K | 3703 | 5195 | |
| 3000K | 3810 | 5344 | |||
| 3500K | 3880 | 5443 | |||
| 4000K | 4021 | 5642 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 855mm | 20W | 20W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 27W | 27W (Direct) - 350mA | |||||||||
| 1135mm | 24W | 24W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34W (Direct) - 350mA | |||||||||
| 1415mm | 30W | 30W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 43W | 43W (Direct) - 350mA | |||||||||
| 1695mm | 36W | 36W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 51W | 51W (Direct) - 350mA | |||||||||
| 1975mm | 42W | 42W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 59W | 59W (Direct) - 350mA | |||||||||
 | 06 | special color |
Teknik Çizimler

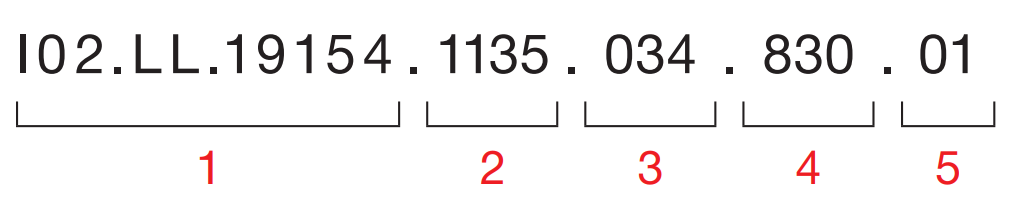

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
