Cub Mini Pendant

Name: Cub Mini Pendant
Brand: AVOLUX
SKU: I01.MLP.14024

Ürün ikonları

Stok kodu: I01.MLP.14024

Kategoriler: COB Led Pendant Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Tempered glass.

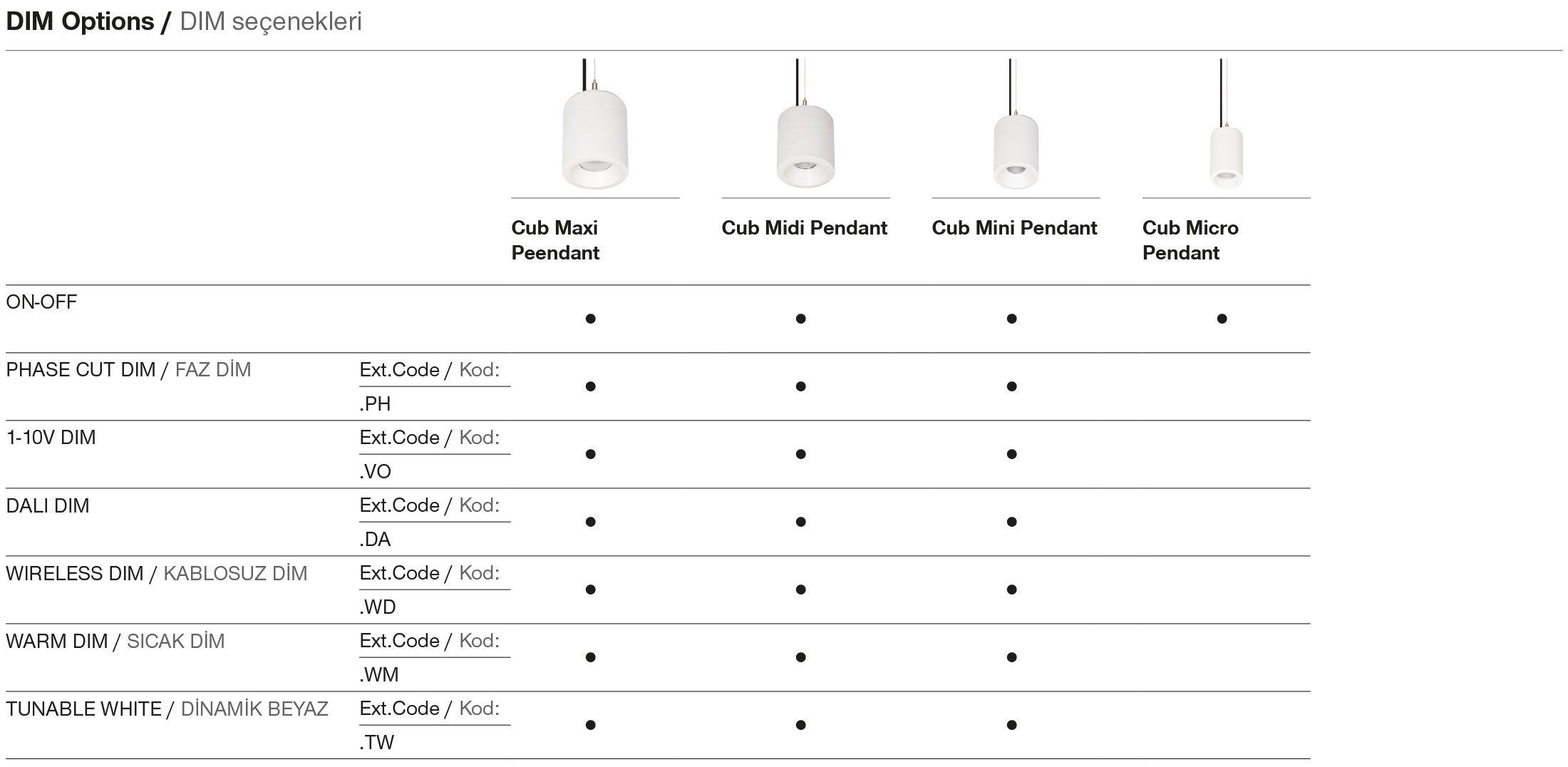

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- Wireless DIM, Hot DIM and Dynamic White applications, which are high-tech control systems, can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.

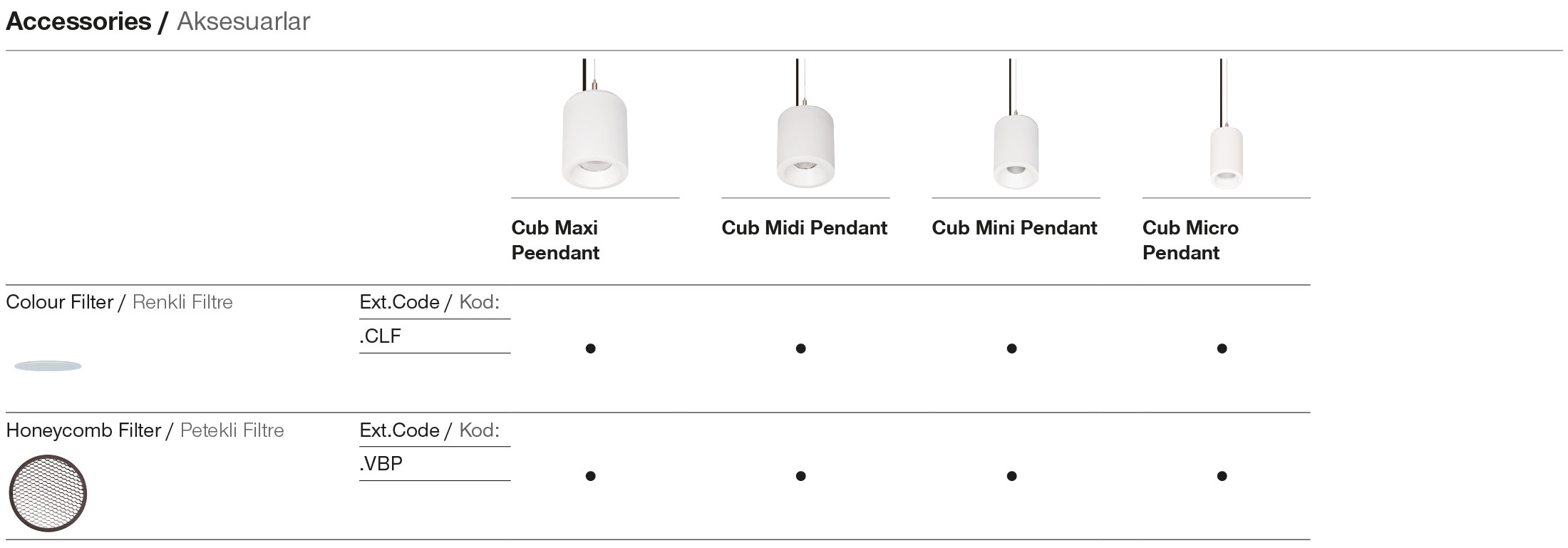

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Narrow and Wide reflector angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 117lm/W.

-- High color compatibility: <3 SDCM.

-- Steel pendant wire up to 5.00m height option.

-- The luminaire is supplied with a rosette at the connection point to the ceiling.

-- Emergency lighting kit system can be applied if the profile length is extended.

Strength	CRI	Order Code	Kelvin	Lumen
7W	CRI>80	I01.MLP.14024 . (..) . (...) . (..) . (..)	2700K	720
			3000K	737
			3500K	763
			4000K	790
			5000K	845
	CRI>90	I01.MLP.14024 . (..) . (...) . (..) . (..)	2700K	648
			3000K	663
			3500K	686
			4000K	710
			5000K	X
	CRI>98	I01.MLP.14024 . (..) . (...) . (..) . (..)	2700K	496
			3000K	516
			4000K	540

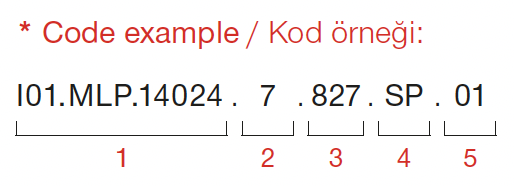

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
7	7W - 180mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	SP	20° - Spot	01	white
4	4W - 100mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K	M.E.	35° - Medium	02	ral 9010
		835	CRI>80 - 3500K	940	CRI>90 - 4000K	FL	45° - Flood	03	black
		840	CRI>80 - 4000K	9827	CRI>98 - 2700K			04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K			05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
