Craft
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 43.5W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 47-93mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19330.1125.044.830.01 |
| Family Name | Craft |
| Material | Aluminum |
| Format | linear |
| Profile Width | 47mm |
| Profile Height | 93mm |
| Installation Type | Stalactite |
| Productivity | >103lm/W |
| CRI | 80 |
| Light Distribution Direct | Symmetric Medium, Large, Very Large and Single Asymmetric |
| Light Distribution Direct | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical Direct Side | Lens Optical |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 31.5W 350mA lm ↓ | 12W 250mA lm ↑ |
|---|---|---|---|---|---|
| 1125mm | CRI>80 | I02.LL.19330 . (...) . (...) . (...) . (...) | 2700K | 2708 | 1454 |
| 3000K | 2794 | 1500 | |||
| 3500K | 2837 | 1523 | |||
| 4000K | 2947 | 1582 | |||
| 5000K | 2989 | 1605 | |||
| CRI>90 | I02.LL.19330 . (...) . (...) . (...) . (...) | 2700K | 2275 | 1221 | |
| 3000K | 2339 | 1256 | |||
| 3500K | 2383 | 1279 | |||
| 4000K | 2469 | 1326 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1125mm | 43.5W | 31.5W (Direct) - 350mA / |  | M.E. | 35° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 12W (Indirect) - 250mA | |||||||||||||
 | FL | 55° - Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||||
 | W.F. | 80° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
 | S.ASY. | Single Asymmetric | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||||
 | 06 | special color |

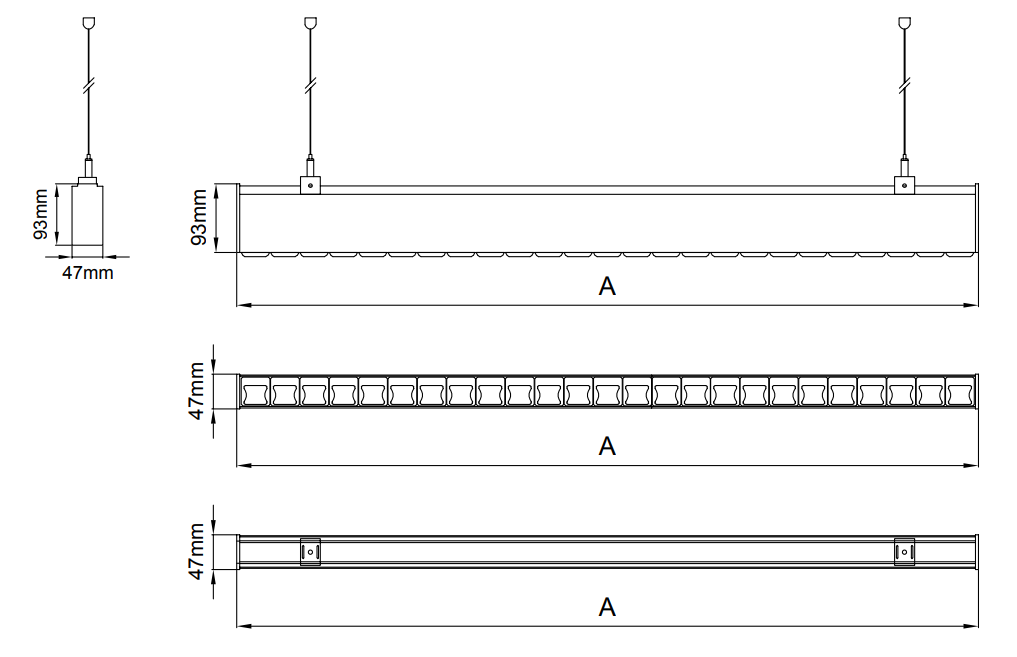

Teknik Çizimler

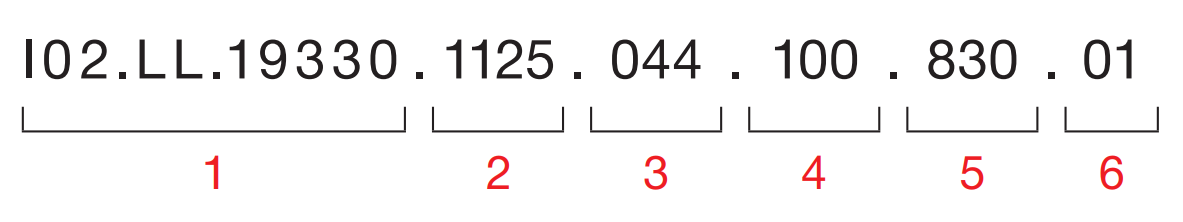

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- Beam Angle
5- CRI / Kelvin
6- Color / Product color
7- Control type
