Carmen Midi

Name: Carmen Midi
Brand: AVOLUX
SKU: I01.MLR.19020

Ürün ikonları

Stok kodu: I01.MLR.19020

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- Very Narrow, Medium and Very Wide reflector angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- UGR<19 low glare feature in Very Narrow and Medium angle options provides.

-- Efficiency up to 92lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
24W	CRI>80	I01.MLR.19020 . (..) . (...) . (..) . (..)	2700K	2752
			3000K	2807
			3500K	2863
			4000K	2921
			5000K	3008
	CRI>90	I01.MLR.19020 . (..) . (...) . (..) . (..)	2700K	2558
			3000K	2615
			3500K	2670
			4000K	2728
			5000K	X
	CRI>98	I01.MLR.19020 . (..) . (...) . (..) . (..)	2700K	1970
			3000K	2010
			4000K	2050

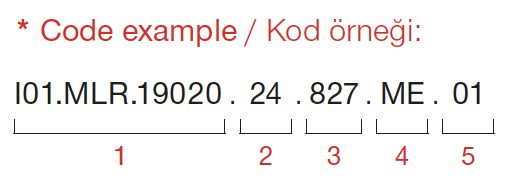

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
24	24W - 600mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	M.E.	24° - Medium	01	white
20	20W - 500mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K	FL	35° - Flood	02	ral 9010
15	15W - 350mA	835	CRI>80 - 3500K	940	CRI>90 - 4000K	W.F.	55° - Wide Flood	03	black
10	10W - 250mA	840	CRI>80 - 4000K	9827	CRI>98 - 2700K			04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K			05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
