Bonita Maxi Highbay
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 150W |
| Protection Class | IP65 |
| Shape | Stalactite |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED high ceiling fixture with symmetrical light output.
-- Corrosion resistant aluminum injection body.
-- It has a bracket or chain mounting system.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature
options are available.
-- IP protection is provided without any problems with silicone gaskets.
-- All external screws are stainless.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint.
-- Efficiency up to 170lm/W.
-- High color compatibility: <3 SDCM
-- Stainless cable gland is used in the armature.
-- 1-10V and DALI control system options are available.
-- Safe system with L80 B10 50000 hour life parameters.
-- Five-year warranty.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 150W | CRI>70 | O07.WL.17230 . (..) . (...) . (..) . (..) | 2700K | 26208 |
| 3000K | 26732 | |||
| 3500K | 27267 | |||
| 4000K | 27812 | |||
| 5000K | 28368 | |||
| 6500K | 28935 | |||
| CRI>80 | O07.WL.17230 . (..) . (...) . (..) . (..) | 2700K | 24267 | |
| 3000K | 24762 | |||
| 3500K | 25267 | |||
| 4000K | 25783 | |||
| 5000K | 26299 | |||
| 6500K | 26825 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 150W | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | M.E. | 60° - Medium |  | 01 | white |
| 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | FL | 90° - Flood |  | 02 | ral 9010 | ||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | W.F. | 120° - Wide Flood |  | 03 | black | ||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | T.W. | 2700K - 6000K |  | 06 | special color | |||||
| RGBW | RGBW |

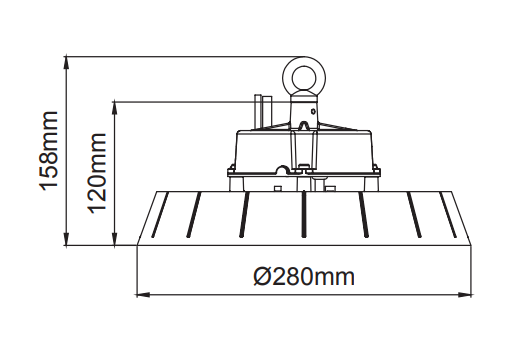

Teknik Çizimler

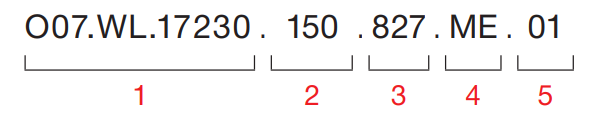

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
