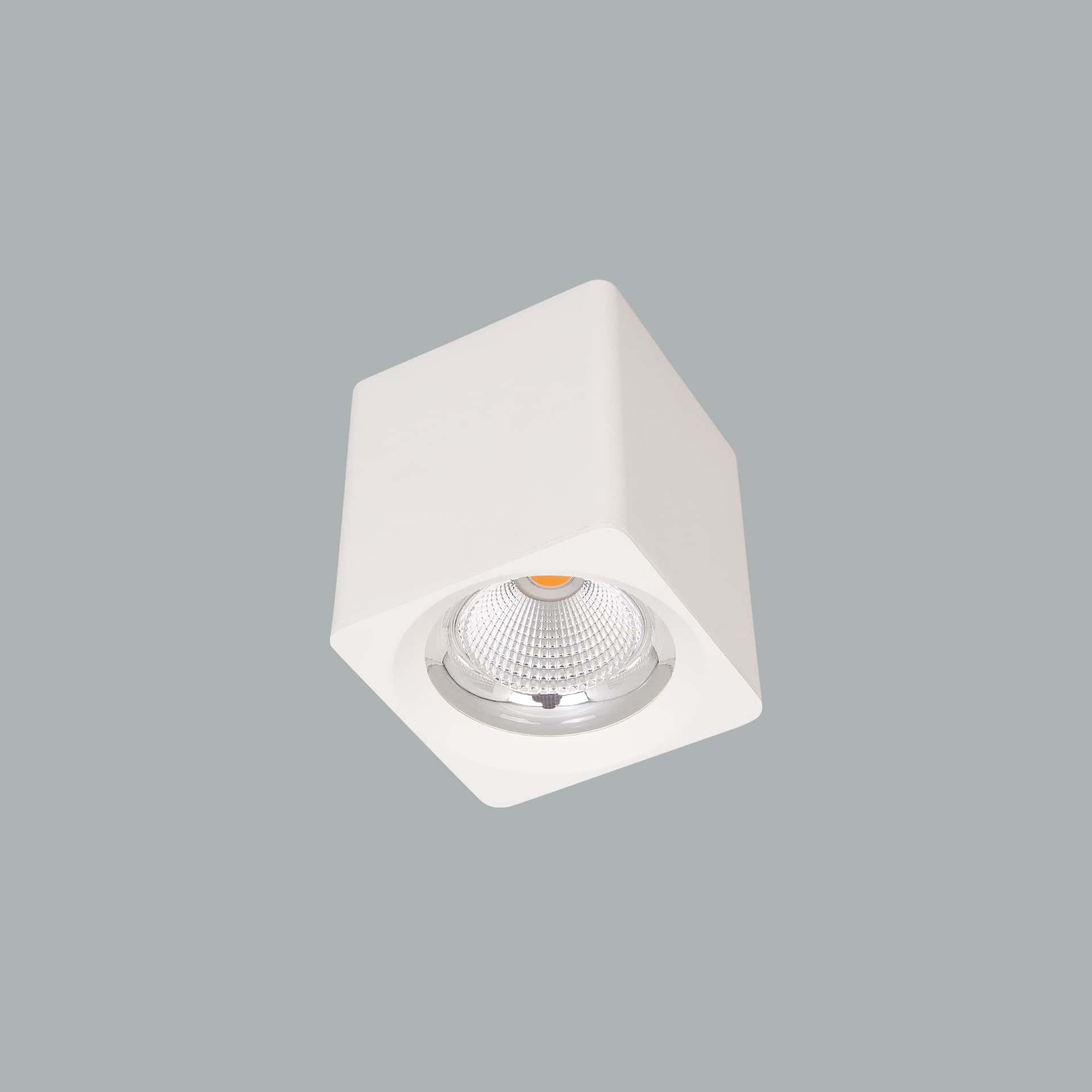

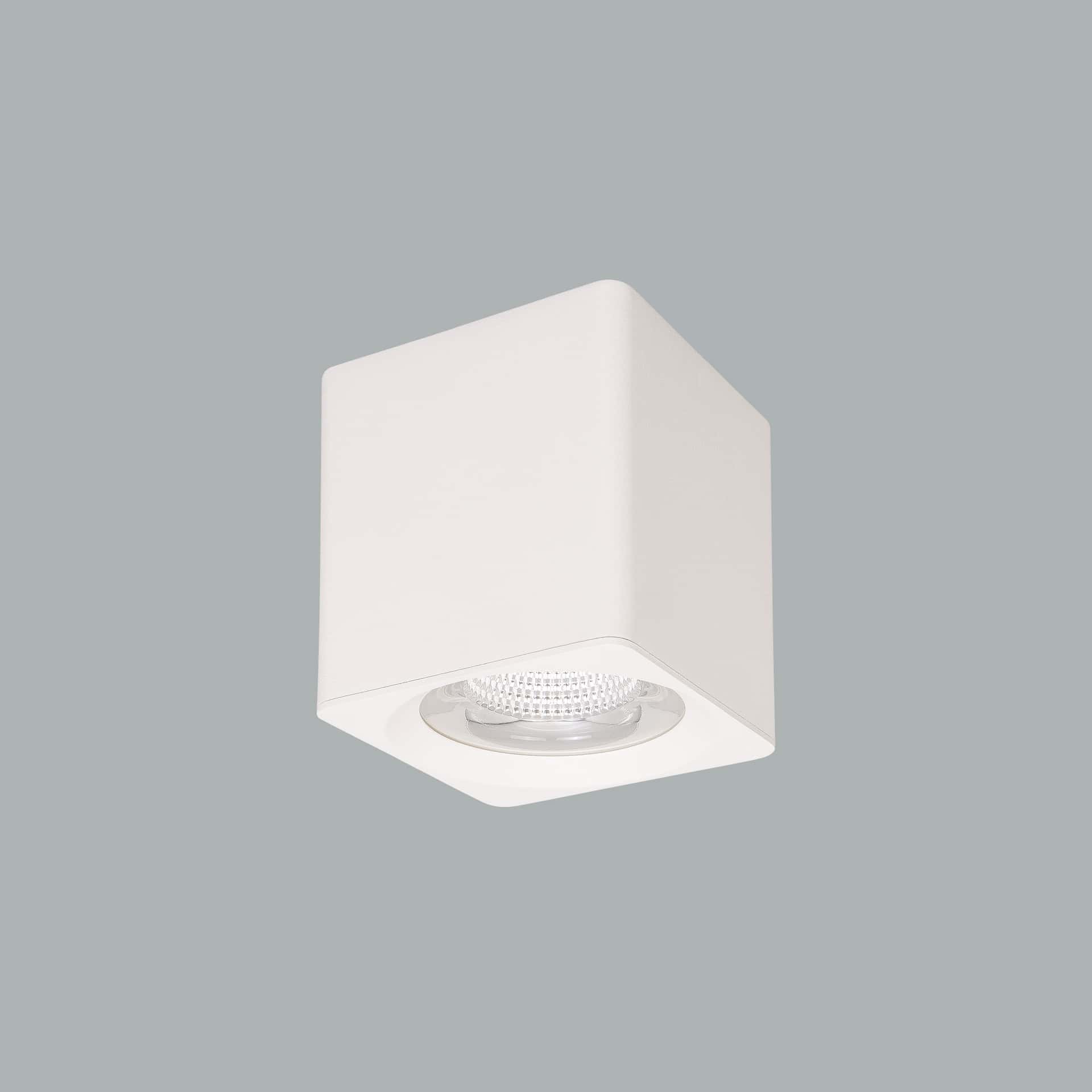

Venus Mini
Venus Mini is an AVOLUX LED lighting fixture in the COB Led Surface Mounted Series category with a power of 20W and IP40 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP40 |
| Shape | surface mounted |
| Optical | Reflector |
DESCRIPTION
-- Aluminum body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Tempered glass.

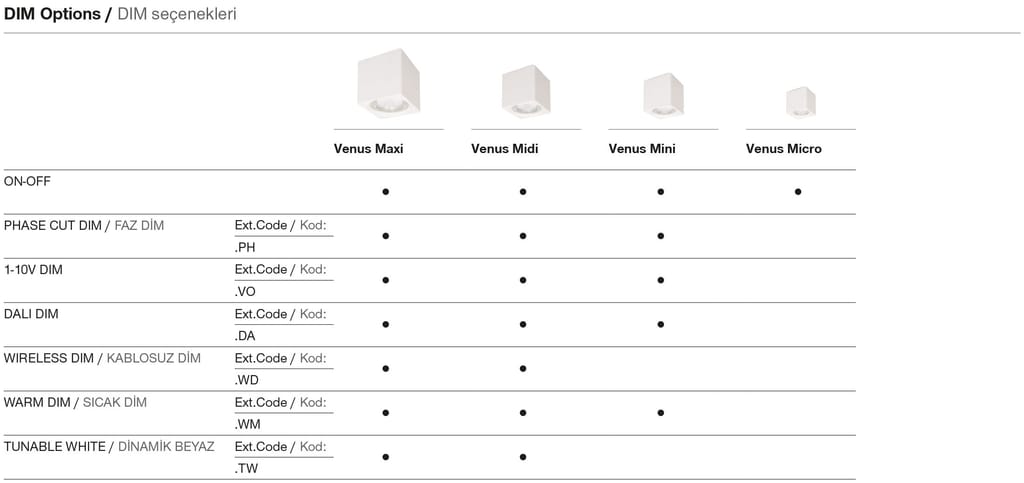

-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM, Hot DIM and Dynamic White applications, which are high-tech control systems, can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.

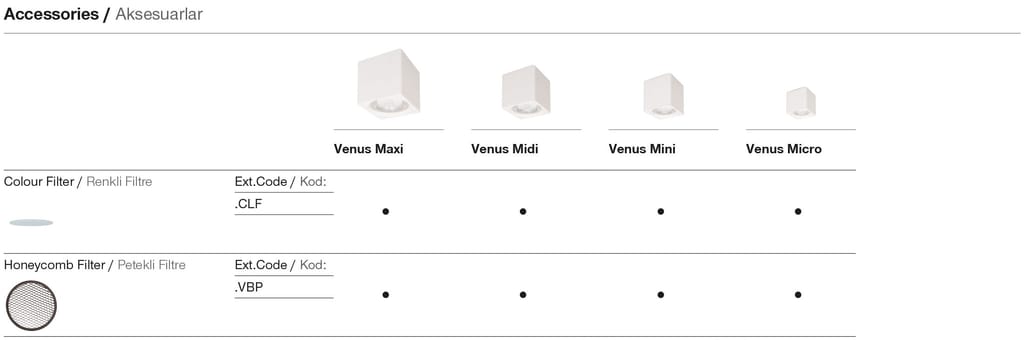

--Honeycomb Filter and Color Filter accessory options are applicable.
-- Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 132lm/W.
-- High color compatibility: <3 SDCM.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I01.MLS.20620 . (..) . (...) . (..) . (..) | 2700K | 2490 |
| 3000K | 2540 | |||
| 3500K | 2590 | |||
| 4000K | 2645 | |||
| 5000K | 2722 | |||
| CRI>90 | I01.MLS.20620 . (..) . (...) . (..) . (..) | 2700K | 2316 | |
| 3000K | 2362 | |||
| 3500K | 2410 | |||
| 4000K | 2460 | |||
| 5000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | FL | 45° - Flood |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

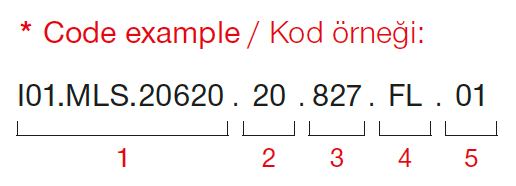

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Venus Mini?
Venus Mini has a power of 20W.
What is the protection class of Venus Mini?
The protection class of Venus Mini is IP40.
Which certifications and standards does Venus Mini have?
Venus Mini carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Venus Mini?
The product (stock) code of Venus Mini is I01.MLS.20620.
Where can I download the catalog or PDF of Venus Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/574-576.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/surface/VENUS%20Surface.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Venus%20Mini%20I01.MLS.20620.rar) buttons on this page.
