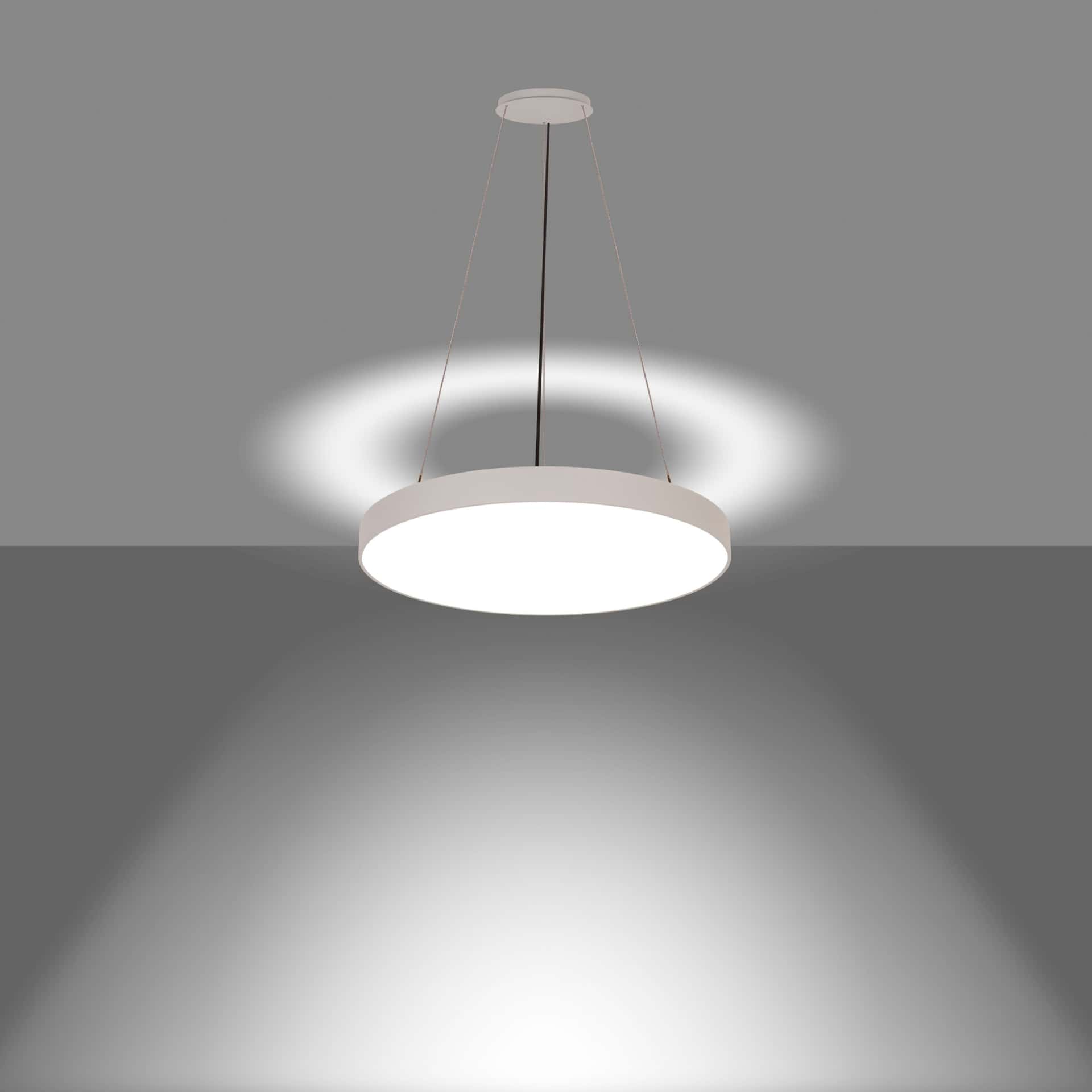

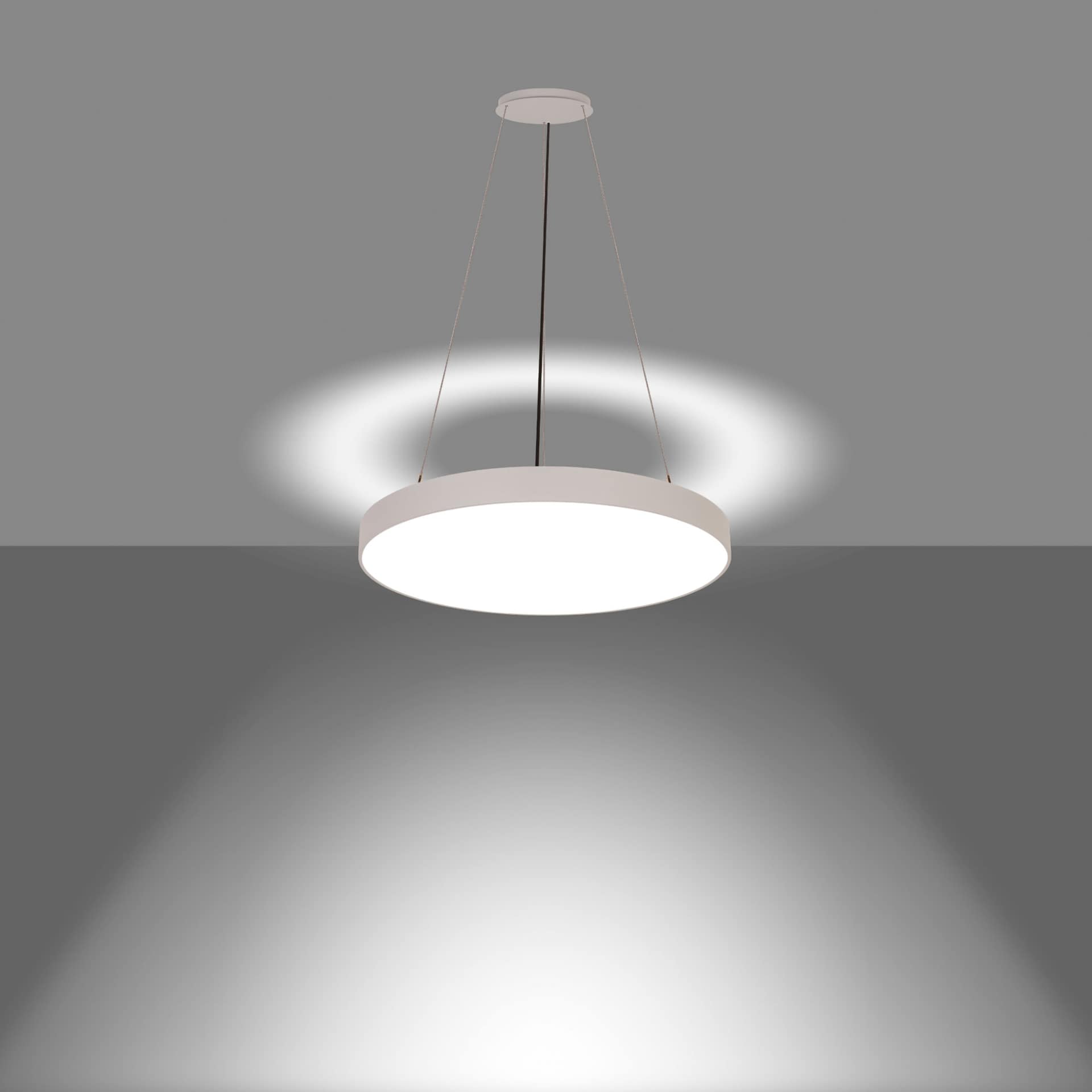

Sivo Super Slim Full Ring
Sivo Super Slim Full Ring is an AVOLUX LED lighting fixture in the Ring and Circular Fixture Series category with a power of 70W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 70W |
| Protection Class | IP20 |
| Shape | Super Slim Full Ring |
| Optical | diffuser |

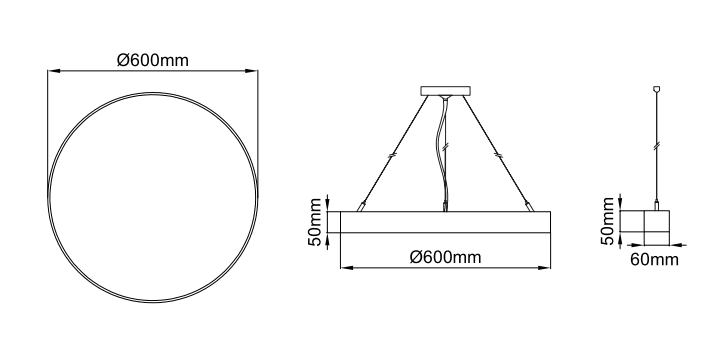

| Diameter | Ø600mm |
| Profile Height | h:50mm |
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.13305.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 60cm |
| Height | 50mm |
| Mounting method | Stalactite |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 6977lm | 7202lm | 7312lm | 7593lm | 7704lm |
| System efficiency | 100lm/W | 103lm/W | 104lm/W | 108lm/W | 110lm/W |
| Luminous flux Direct | 5452lm | 5628lm | 5714lm | 5933lm | 6020lm |
| Luminous flux Indirect | 1525lm | 1574lm | 1598lm | 1660lm | 1684lm |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 116° | 116° | 116° | 116° | 116° |
| Light Angle | Direct - Indirect |
| Working technology of fixtures | |
|---|---|
| System Output | 70W (50W Direct - 20W Indirect) |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP20 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

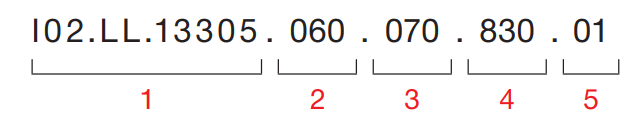

1- Product code / Armature code
2- Daimeter / Diameter
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
Frequently Asked Questions
What is the wattage of Sivo Super Slim Full Ring?
Sivo Super Slim Full Ring has a power of 70W.
What is the protection class of Sivo Super Slim Full Ring?
The protection class of Sivo Super Slim Full Ring is IP20.
Which certifications and standards does Sivo Super Slim Full Ring have?
Sivo Super Slim Full Ring carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Sivo Super Slim Full Ring?
The product (stock) code of Sivo Super Slim Full Ring is I02.LL.13305.060.
Where can I download the catalog or PDF of Sivo Super Slim Full Ring?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linea/561.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/Sivo%20Super%20Slim%20Full%20Ring.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL13305.rar) buttons on this page.
