Sivo Ring

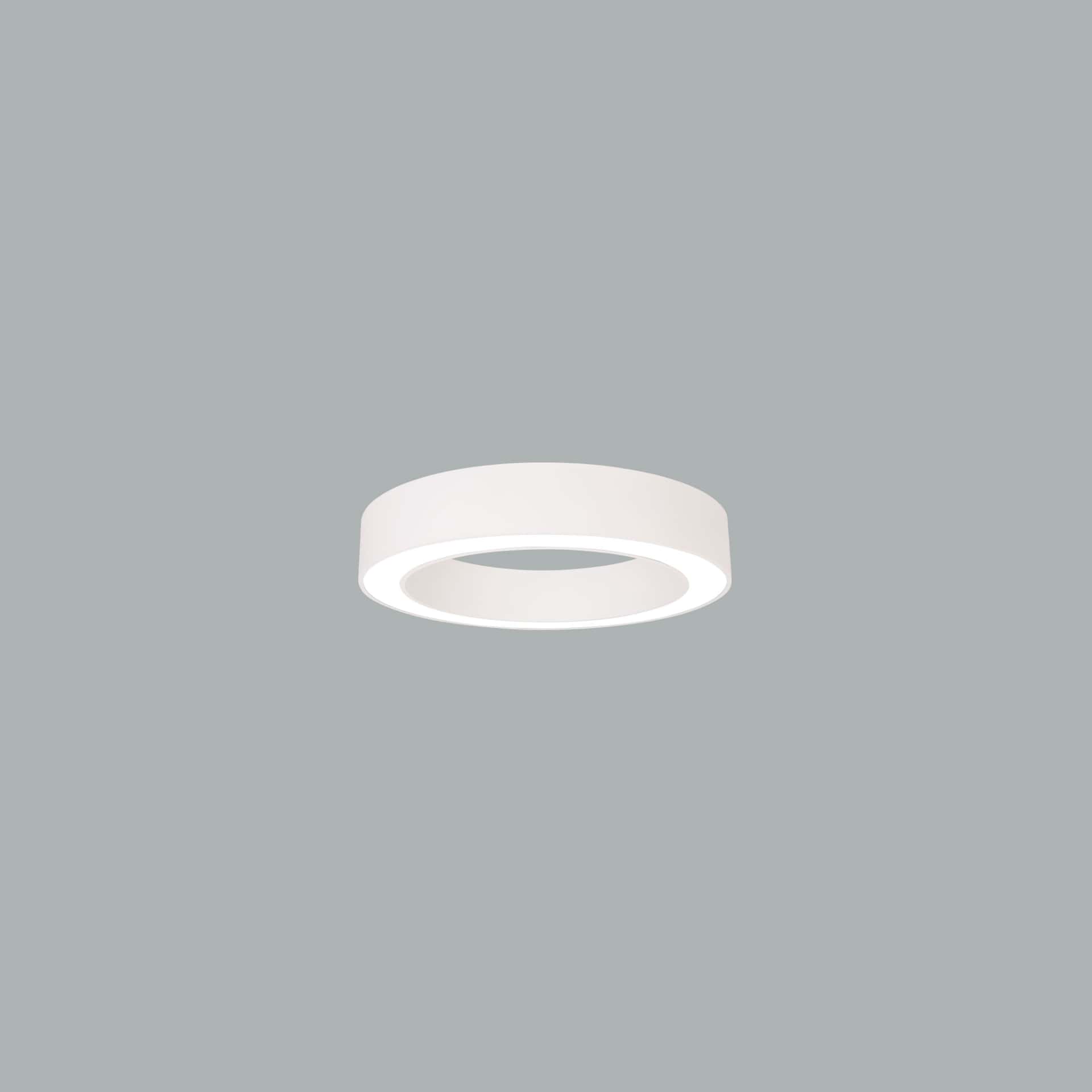

Sivo Ring is an AVOLUX LED lighting fixture in the Ring and Circular Fixture Series category with a power of 40W and IP20 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 40W |
| Protection Class | IP20 |
| Shape | Ring |
| Optical | diffuser |

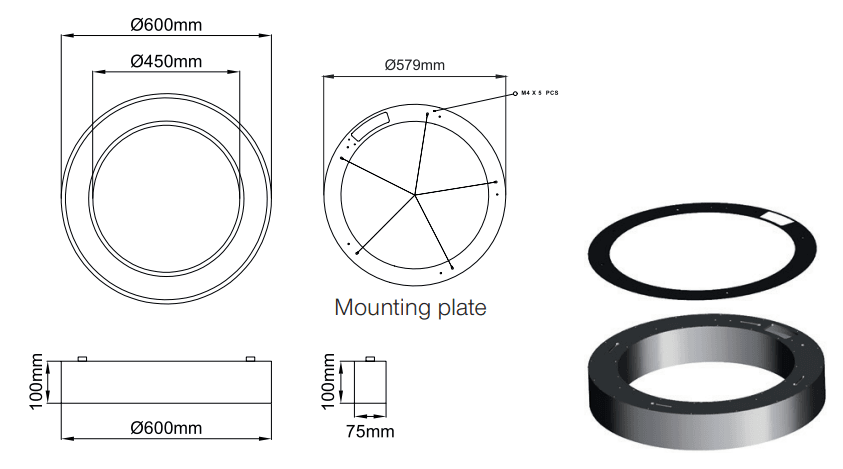

| Diameter | Ø600mm |
| Profile Height | h:100mm |
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
| Product Information | |
|---|---|

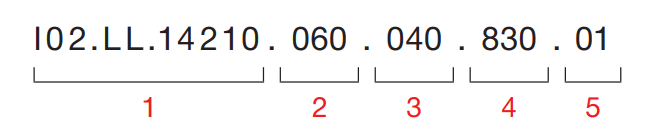

| Article No. (AVOLUX) | I02.LL.14210.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 60cm |
| Height | 100mm |
| Weight | 3.4kg |
| Mounting method | surface mounted |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 3898lm | 4023lm | 4085lm | 4241lm | 4303lm |
| System efficiency | 97lm/W | 101lm/W | 102lm/W | 106lm/W | 108lm/W |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 110° | 110° | 110° | 110° | 110° |
| Light Angle | Only Direct |
| Working technology of fixtures | |
|---|---|
| System Output | 40W |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP20 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |
Frequently Asked Questions
What is the wattage of Sivo Ring?
Sivo Ring has a power of 40W.
What is the protection class of Sivo Ring?
The protection class of Sivo Ring is IP20.
Which certifications and standards does Sivo Ring have?
Sivo Ring carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP20.
What is the product code of Sivo Ring?
The product (stock) code of Sivo Ring is I02.LL.14210.060.
Where can I download the catalog or PDF of Sivo Ring?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linea/435.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/Sivo%20Ring.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.14210.rar) buttons on this page.
