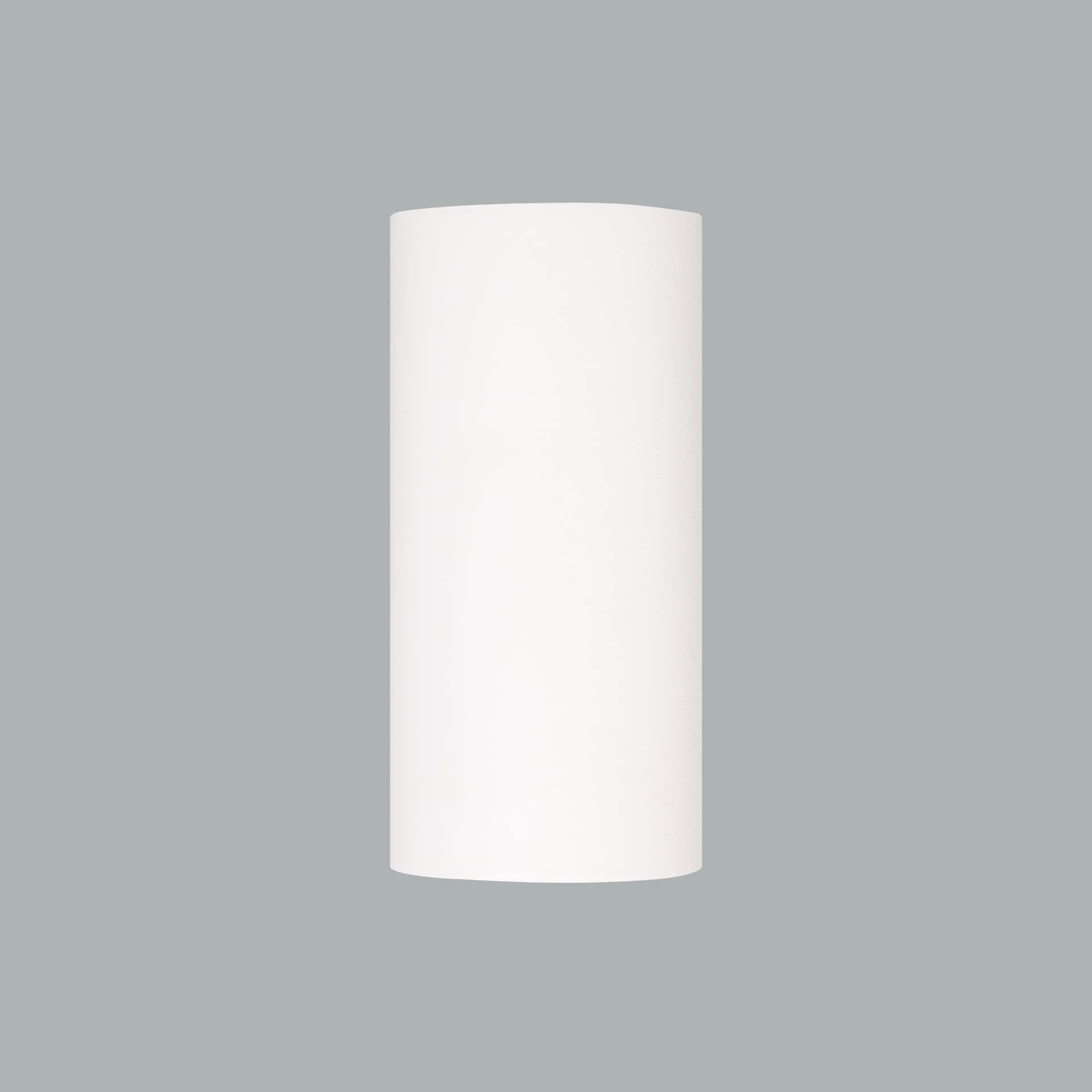

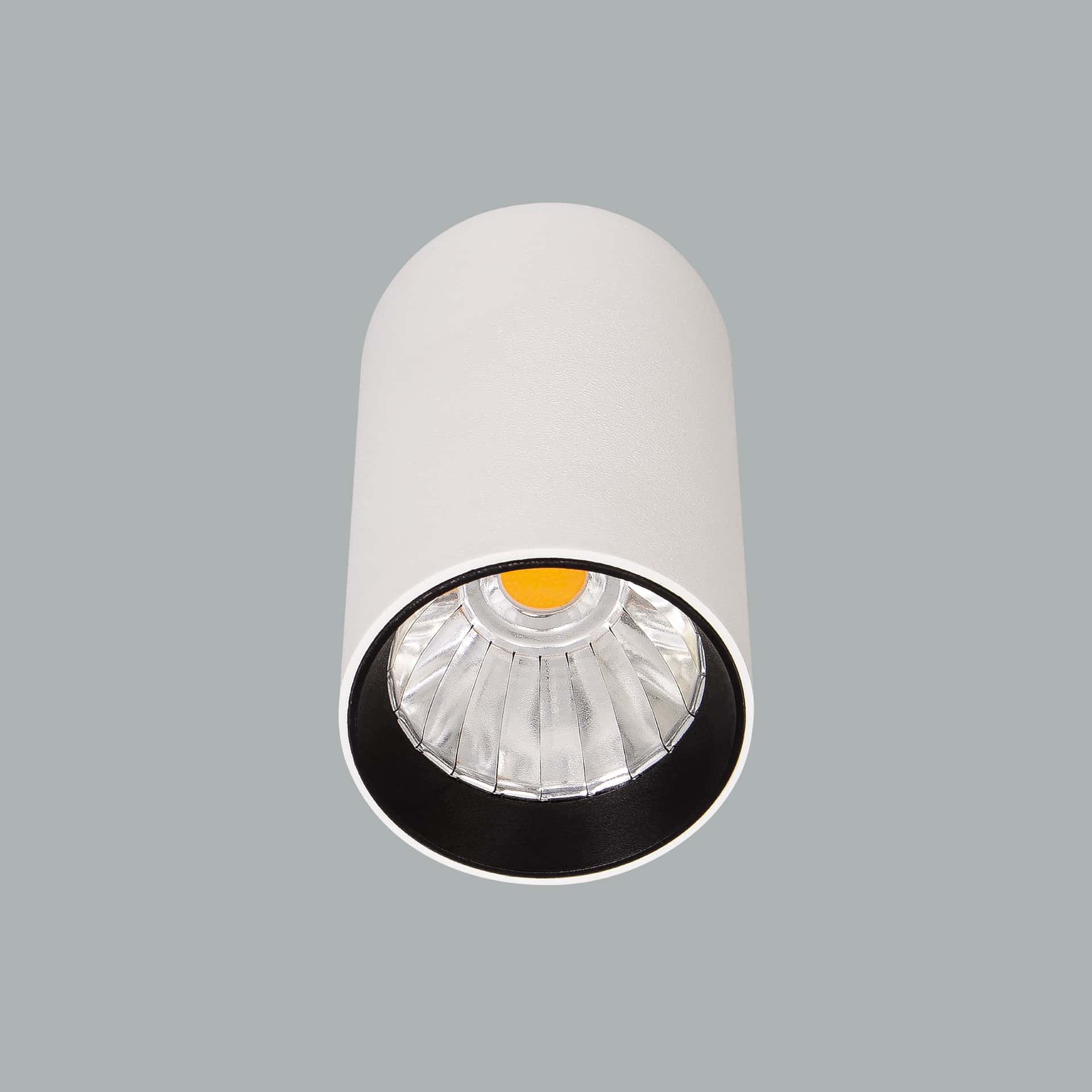

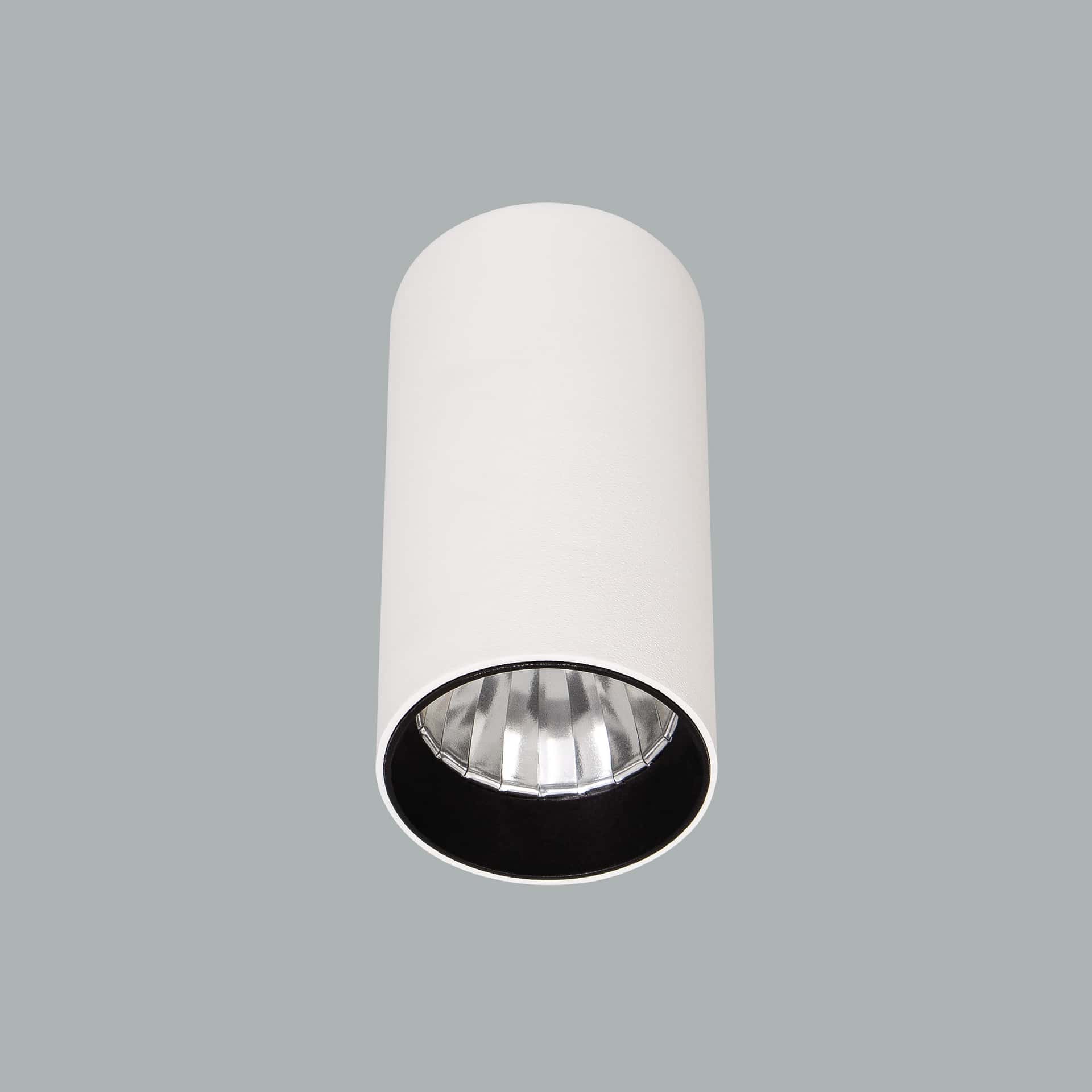

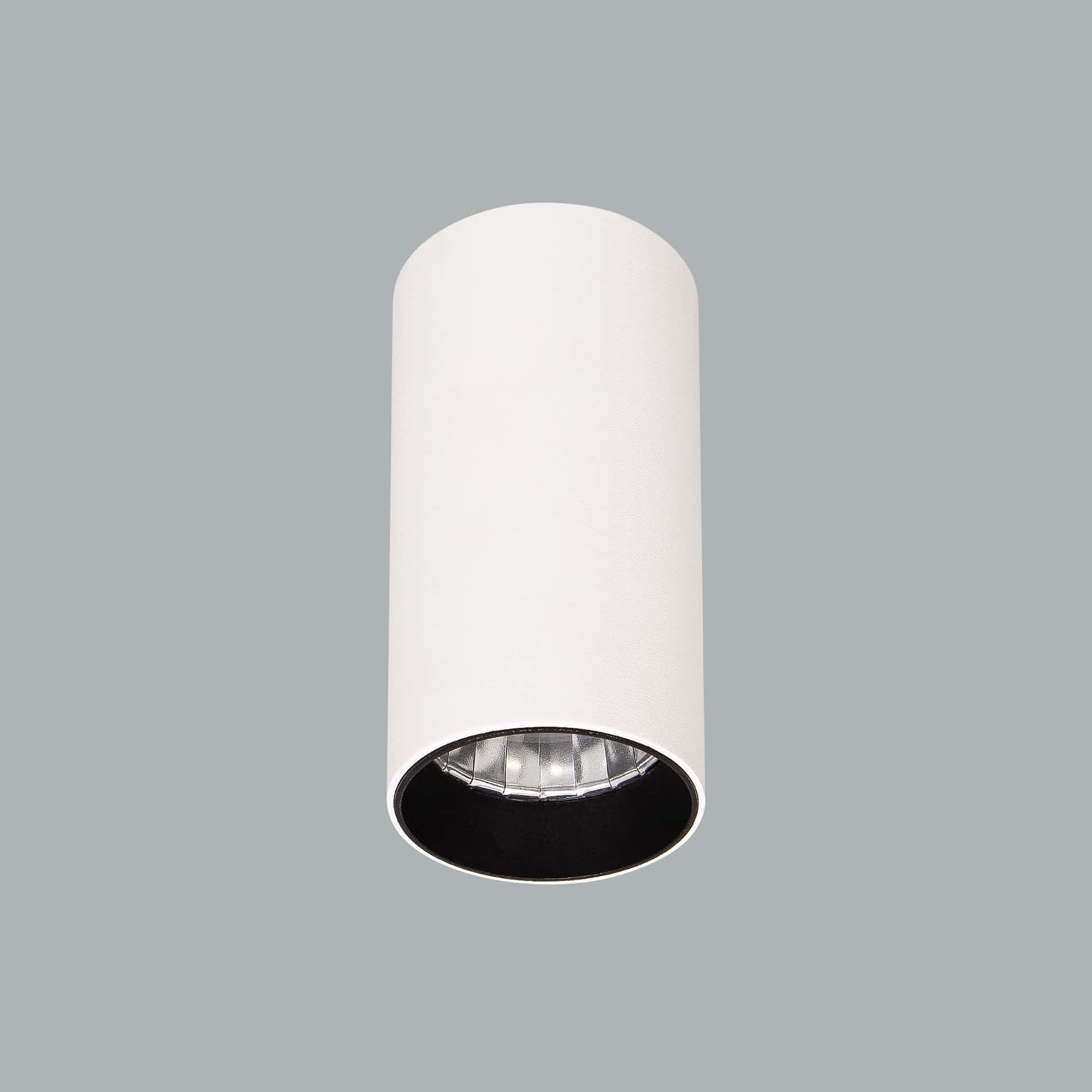

Silindir Midi Surface
Silindir Midi Surface is an AVOLUX LED lighting fixture in the COB Led Surface Mounted Series category with a power of 20W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP44 |
| Shape | surface mounted |

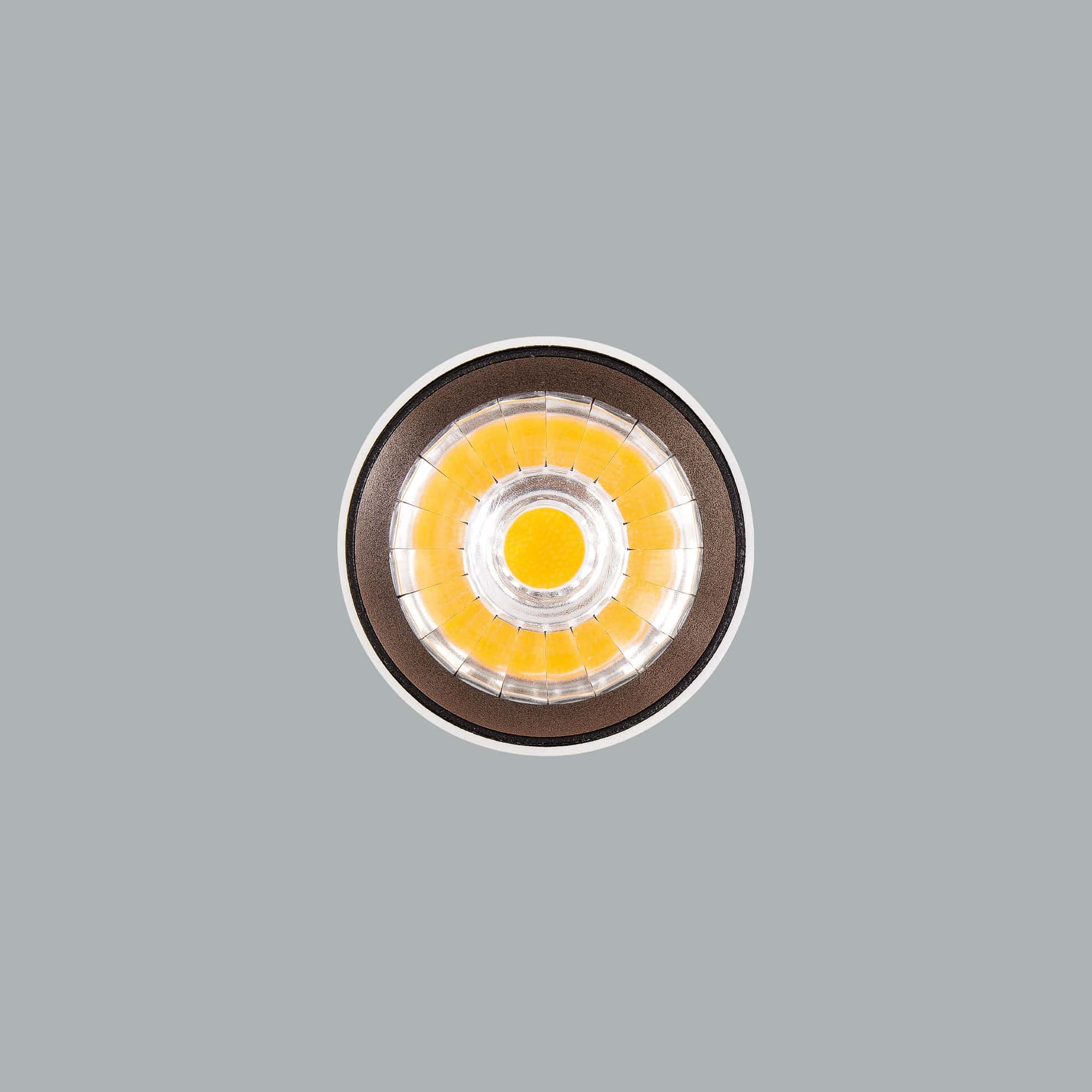

| Optical | Reflector |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I01.MLS.30830 . (..) . (...) . (..) . (..) | 2700K | 2432 |
| 3000K | 2507 | |||
| 3500K | 2557 | |||
| 4000K | 2609 | |||
| 5000K | 2660 | |||
| CRI>90 | I01.MLS.30830 . (..) . (...) . (..) . (..) | 2700K | 2262 | |
| 3000K | 2332 | |||
| 3500K | 2379 | |||
| 4000K | 2462 | |||
| 5000K | X | |||
| CRI>98 | I01.MLS.30830 . (..) . (...) . (..) . (..) | 2700K | 1741 | |
| 3000K | 1796 | |||
| 4000K | 1869 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

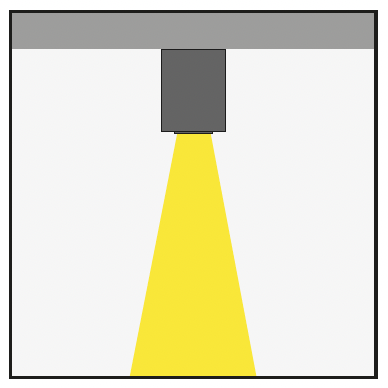

| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SP | 23° - Spot |  | 01 | white |
| 15 | 15W - 350mA | 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | M.E. | 35° - Medium |  | 02 | ral 9010 |

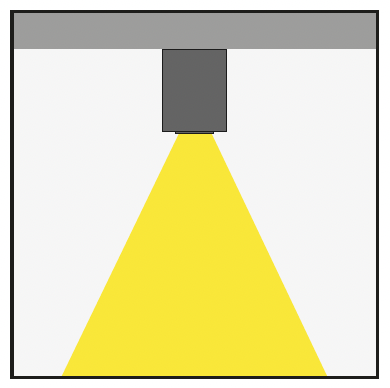

| 10 | 10W - 250mA | 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | FL | 48° - Flood |  | 03 | black |
| 7 | 7W - 180mA | 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |

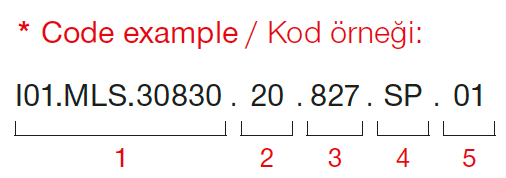

- Luminaire code
- Strength
- Kelvin

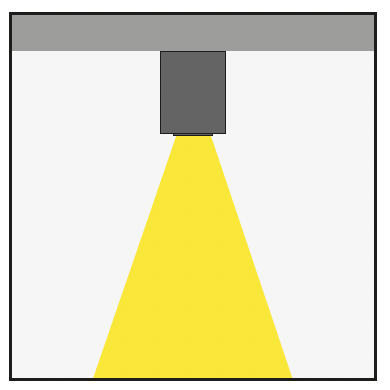

- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Silindir Midi Surface?
Silindir Midi Surface has a power of 20W.
What is the protection class of Silindir Midi Surface?
The protection class of Silindir Midi Surface is IP44.
Which certifications and standards does Silindir Midi Surface have?
Silindir Midi Surface carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP44.
What is the product code of Silindir Midi Surface?
The product (stock) code of Silindir Midi Surface is I01.MLS.30830.
Where can I download the catalog or PDF of Silindir Midi Surface?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/555.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/surface/SILINDIR%20Surface.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Silindir%20Midi%20%20Surface%2BI01.MLS.30830.rar) buttons on this page.
