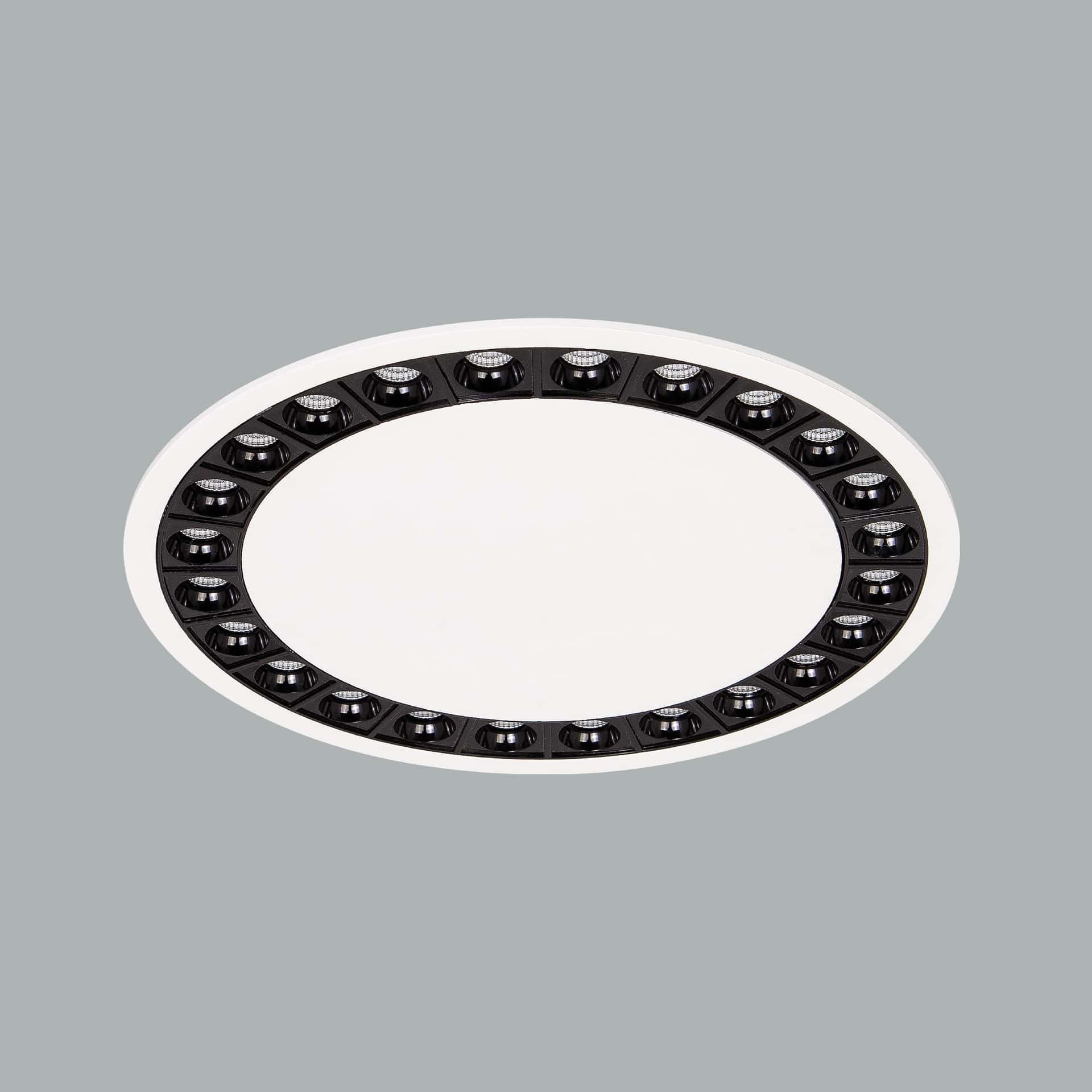

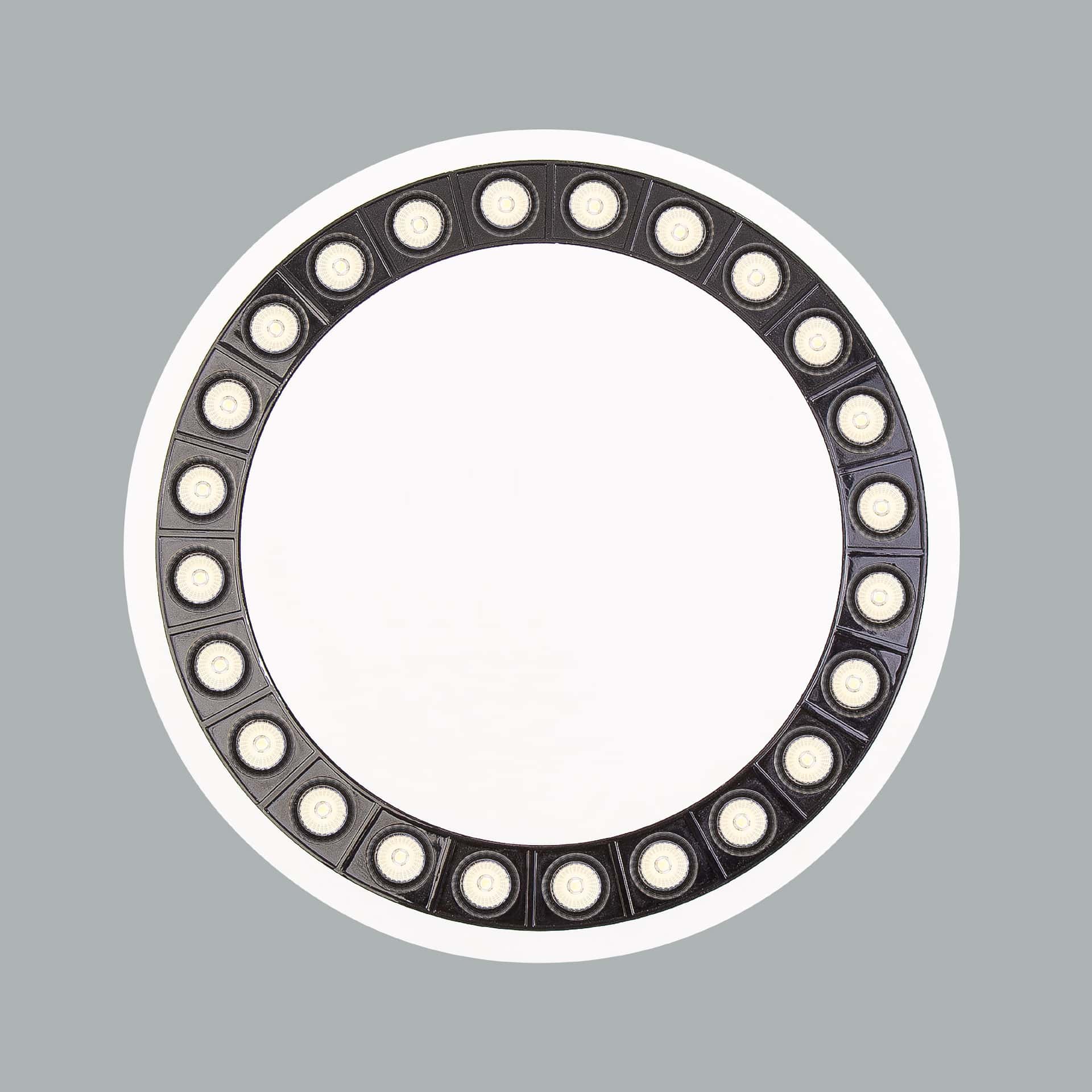

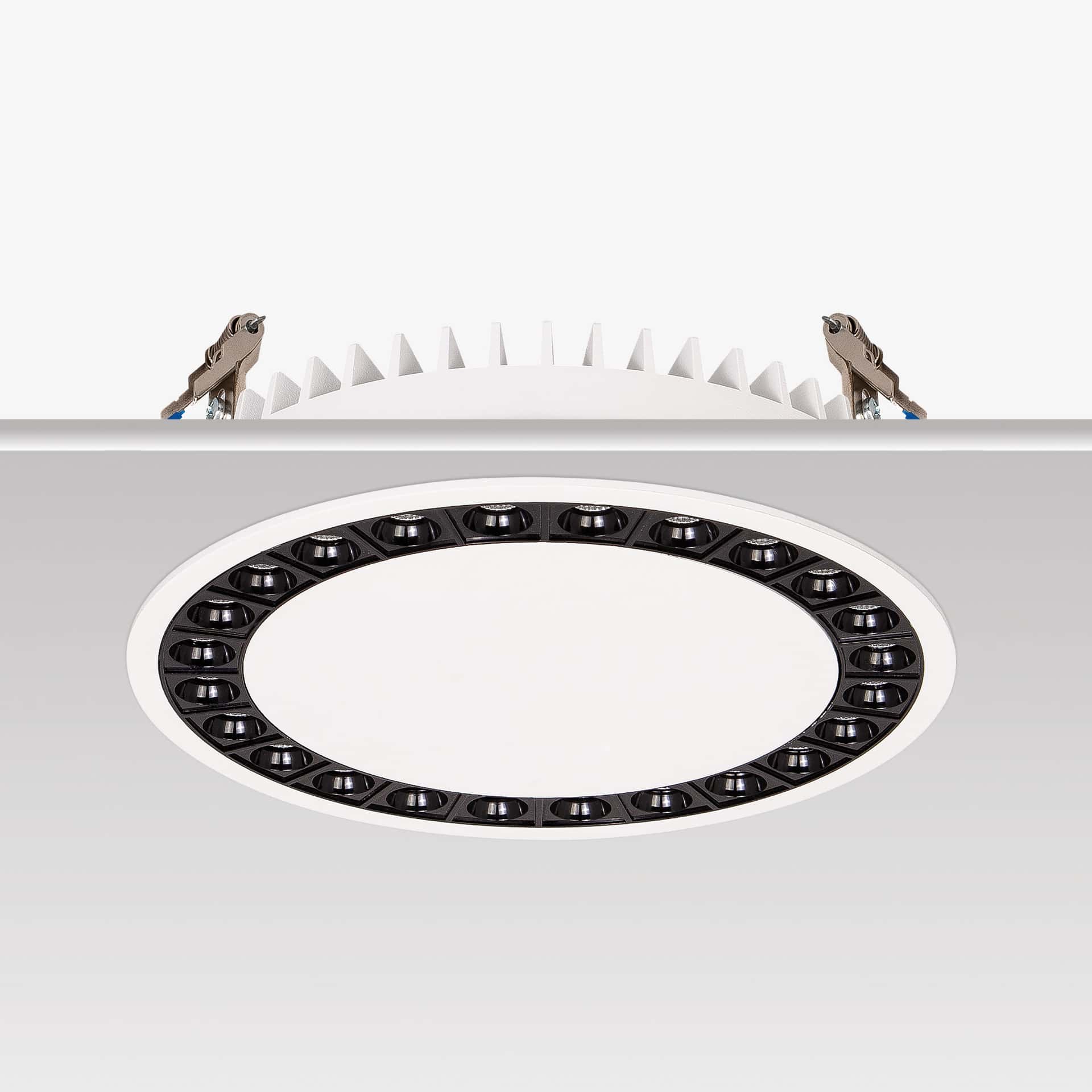

Saturn Maxi
Saturn Maxi is an AVOLUX LED lighting fixture in the Power LED Recessed Series category with a power of 35W and IP40 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 35W |
| Protection Class | IP40 |
| Shape | built-in |
| Optical | Lens |
DESCRIPTION

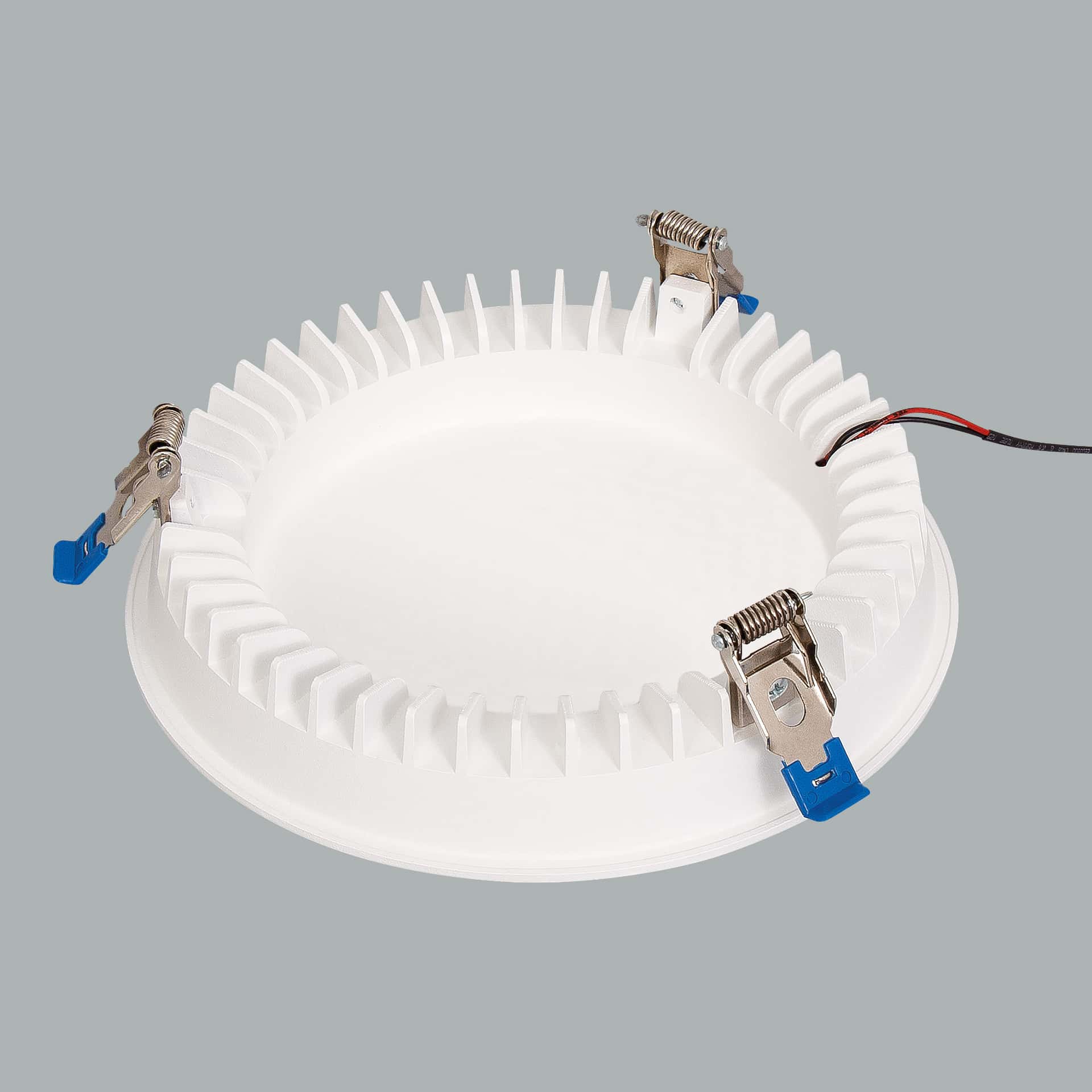

-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.

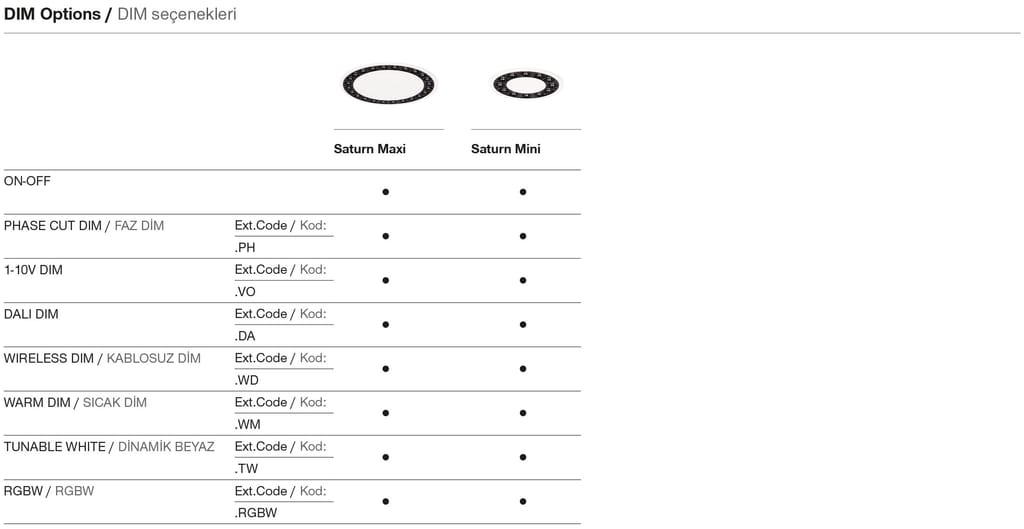

-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM, Dynamic White and Warm DIM applications, which are high-tech control systems, can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.

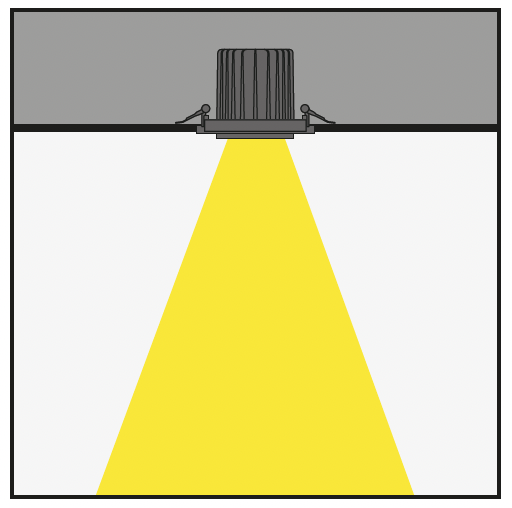

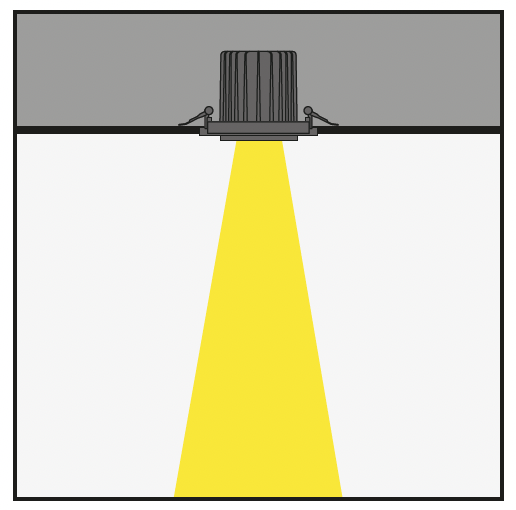

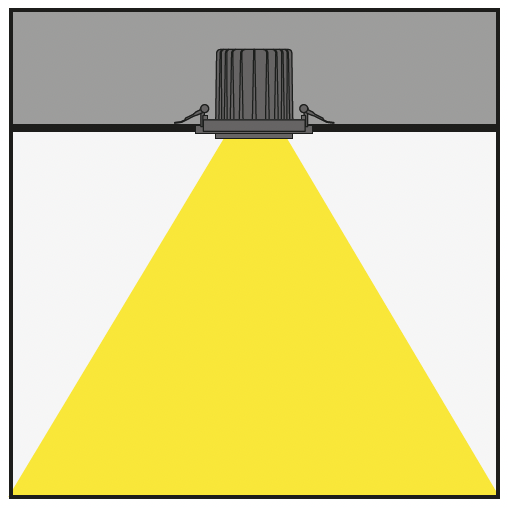

--Narrow, Medium and Wide lens angle options are available.
-- Standard CRI>80 and high CRI>90 LED options are available.
-- High color compatibility: <3 SDCM.
-- IP40 protection class.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 35W | CRI>80 | I02.PLR.99924 . (..) . (...) . (..) . (..) | 2700K | 2667 |
| 3000K | 2750 | |||
| 3500K | 2805 | |||
| 4000K | 2862 | |||
| 5000K | 2947 | |||
| CRI>90 | I02.PLR.99924 . (..) . (...) . (..) . (..) | 2700K | 2482 | |
| 3000K | 2559 | |||
| 3500K | 2607 | |||
| 4000K | 2660 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.99924 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |

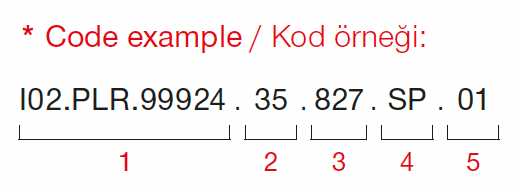

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 35W - 900mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SP | 18° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | M.E. | 30° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | FL | 48° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Saturn Maxi?
Saturn Maxi has a power of 35W.
What is the protection class of Saturn Maxi?
The protection class of Saturn Maxi is IP40.
Which certifications and standards does Saturn Maxi have?
Saturn Maxi carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP40.
What is the product code of Saturn Maxi?
The product (stock) code of Saturn Maxi is I02.PLR.99924.
Where can I download the catalog or PDF of Saturn Maxi?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/742-743.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/downlight/SATURN%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Saturn%20Maxi%20I02.PLR.99924.rar) buttons on this page.
