Quasar Mega

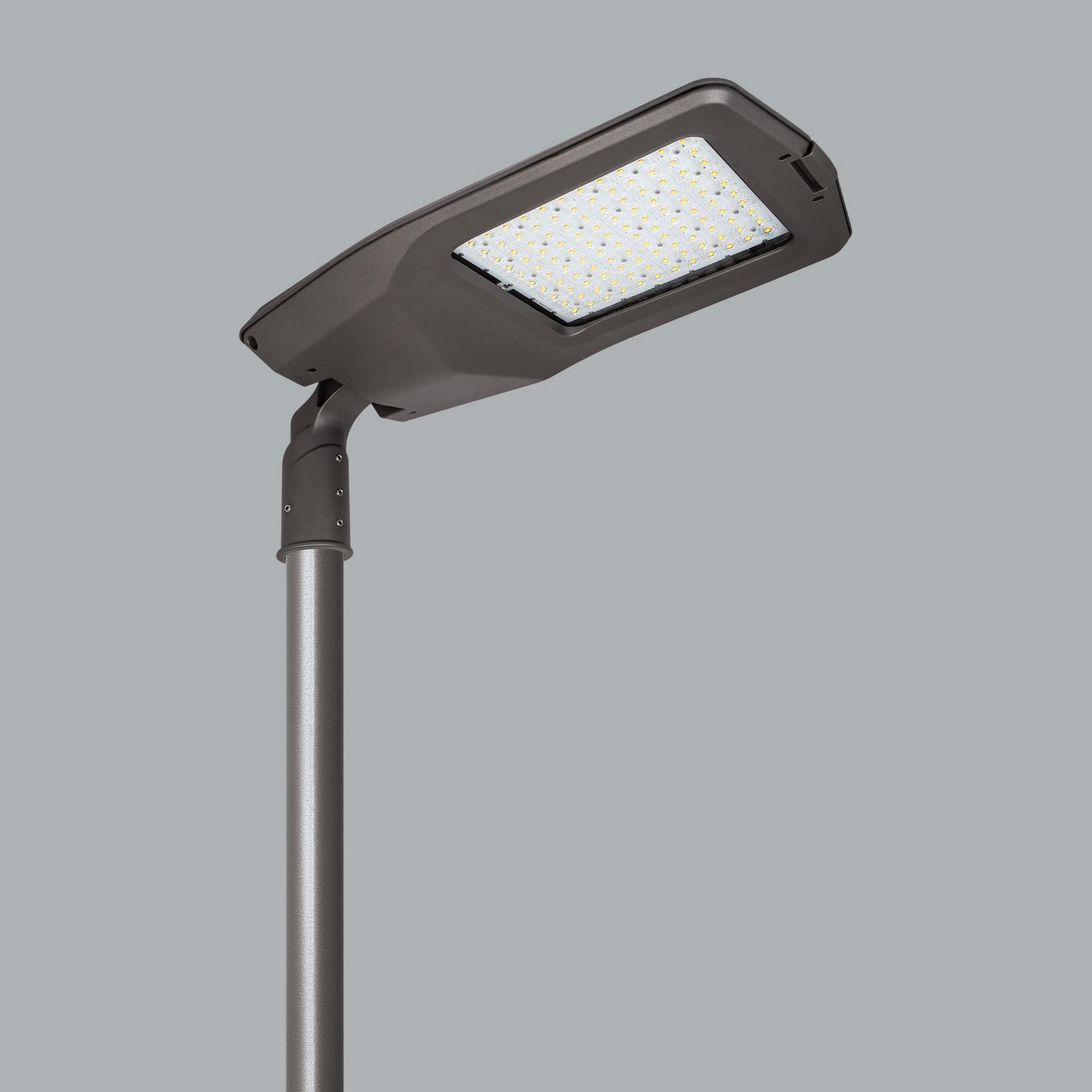

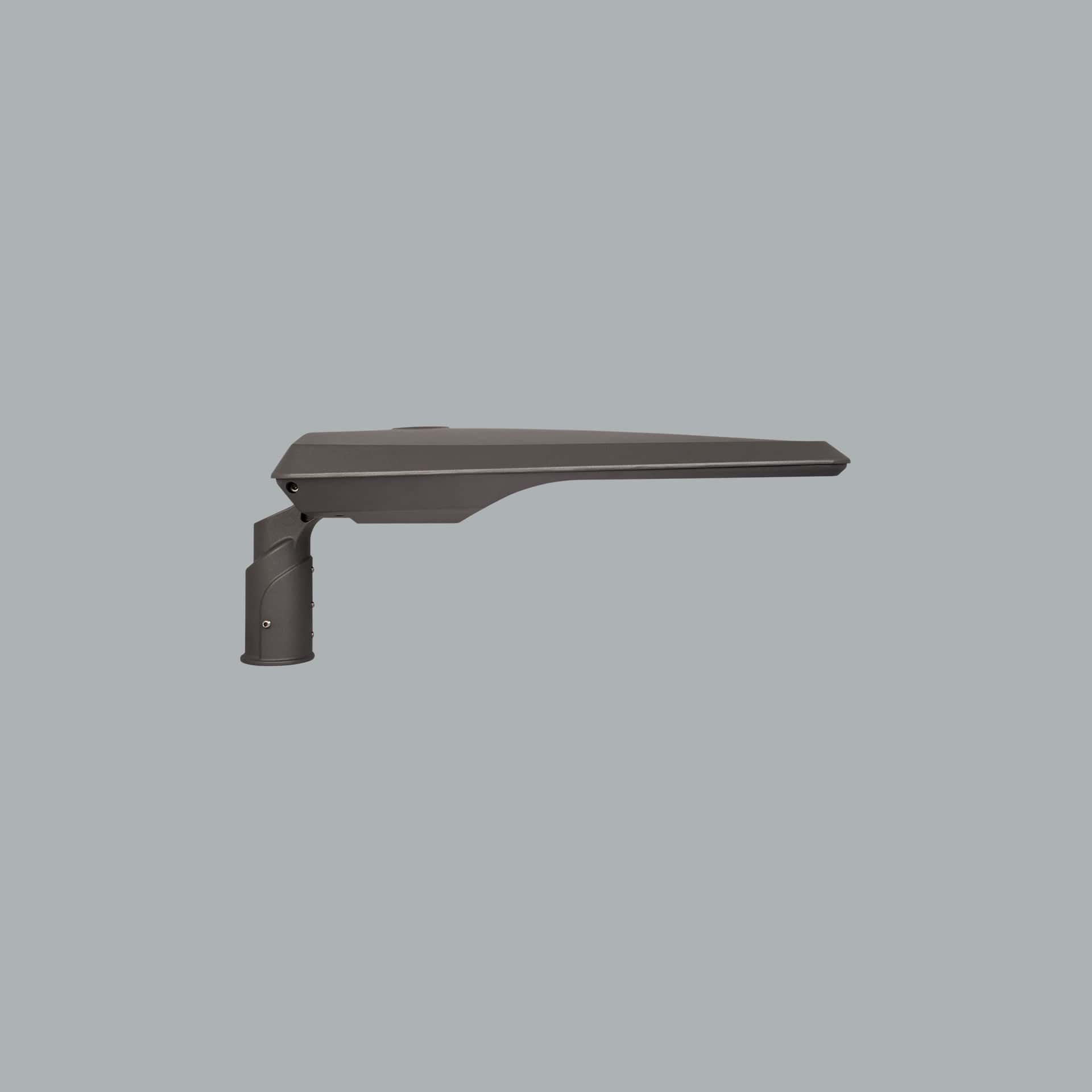

Quasar Mega is an AVOLUX LED lighting fixture in the Pole Mounted Street Fixtures Series category with a power of 175-200W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 175-200W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
-- LED street lighting fixture.
| Quasar Mega / O07.ST.16315 | |
|---|---|
| System Power | 175W |
| Luminaire Output Lumen CRI>70 - 4000K | 23998lm |
| Driving Current | 500mA |

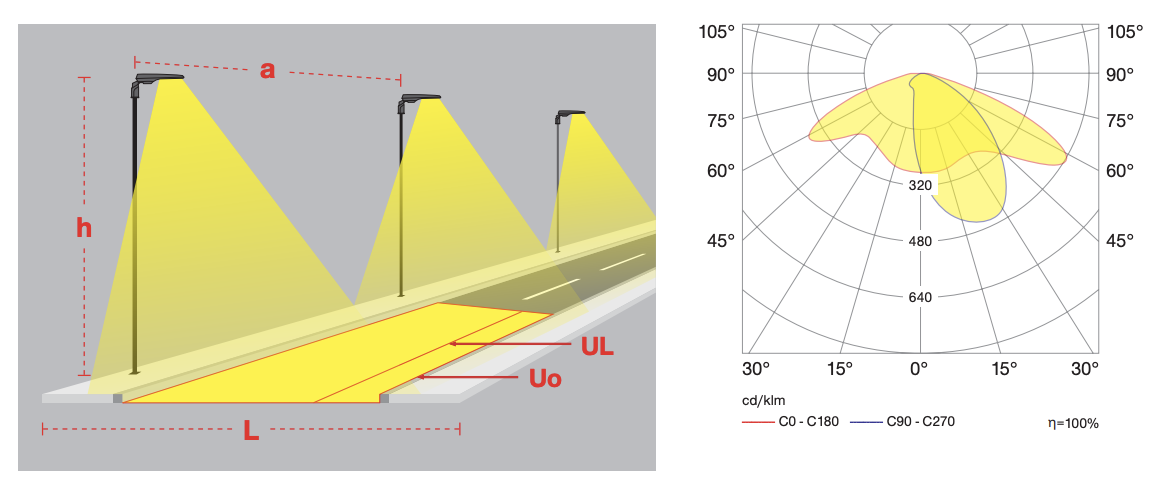

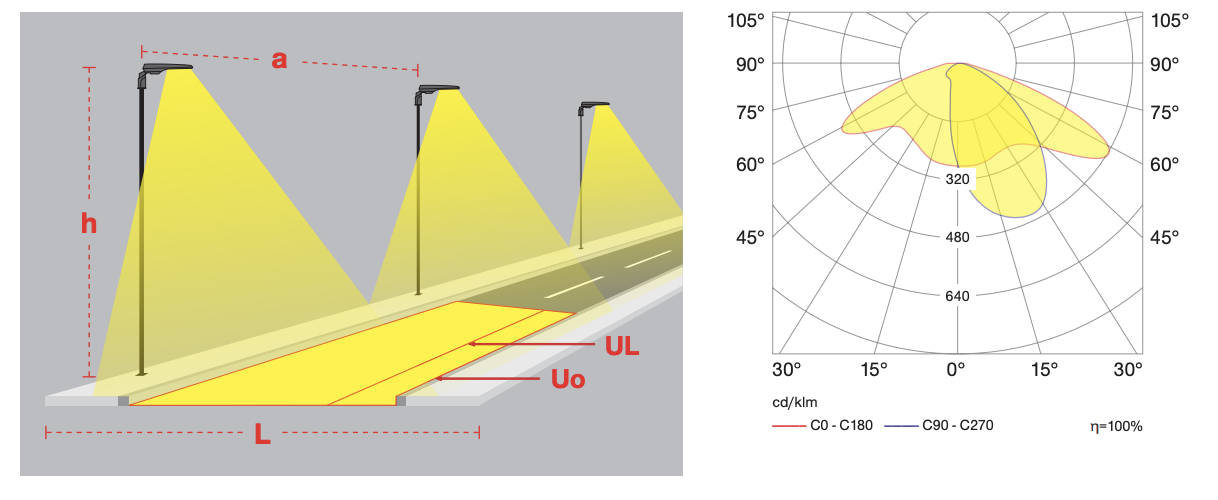

| Mast Span (a) | 47m |
| Mast Height (h) | 12m |
| Road Width (L) | 10.5m |
| Lighting Class | M3 |
| Optical Type | Maximum pole spacing |
| Quasar Mega / O07.ST.16315 | |
|---|---|
| System Power | 200W |
| Luminaire Output Lumen CRI>70 - 4000K | 26303lm |
| Driving Current | 575mA |
| Mast Span (a) | 47m |
| Mast Height (h) | 12m |
| Road Width (L) | 10.5m |
| Lighting Class | M2 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.16315.200.740.05 |
| Family Name | Quasar Mega |

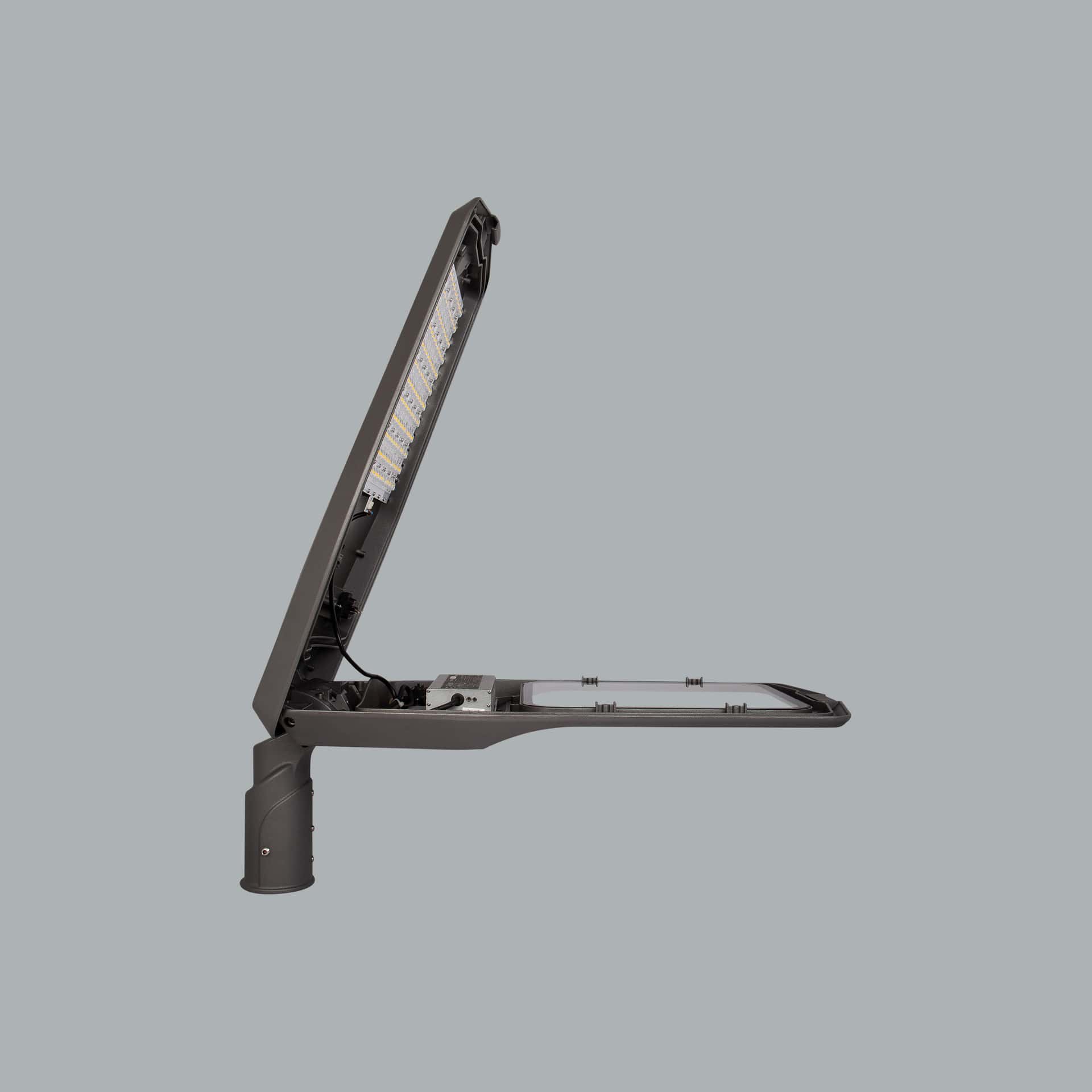

| Material | Aluminum Injection |
| LED Life | B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 200W |

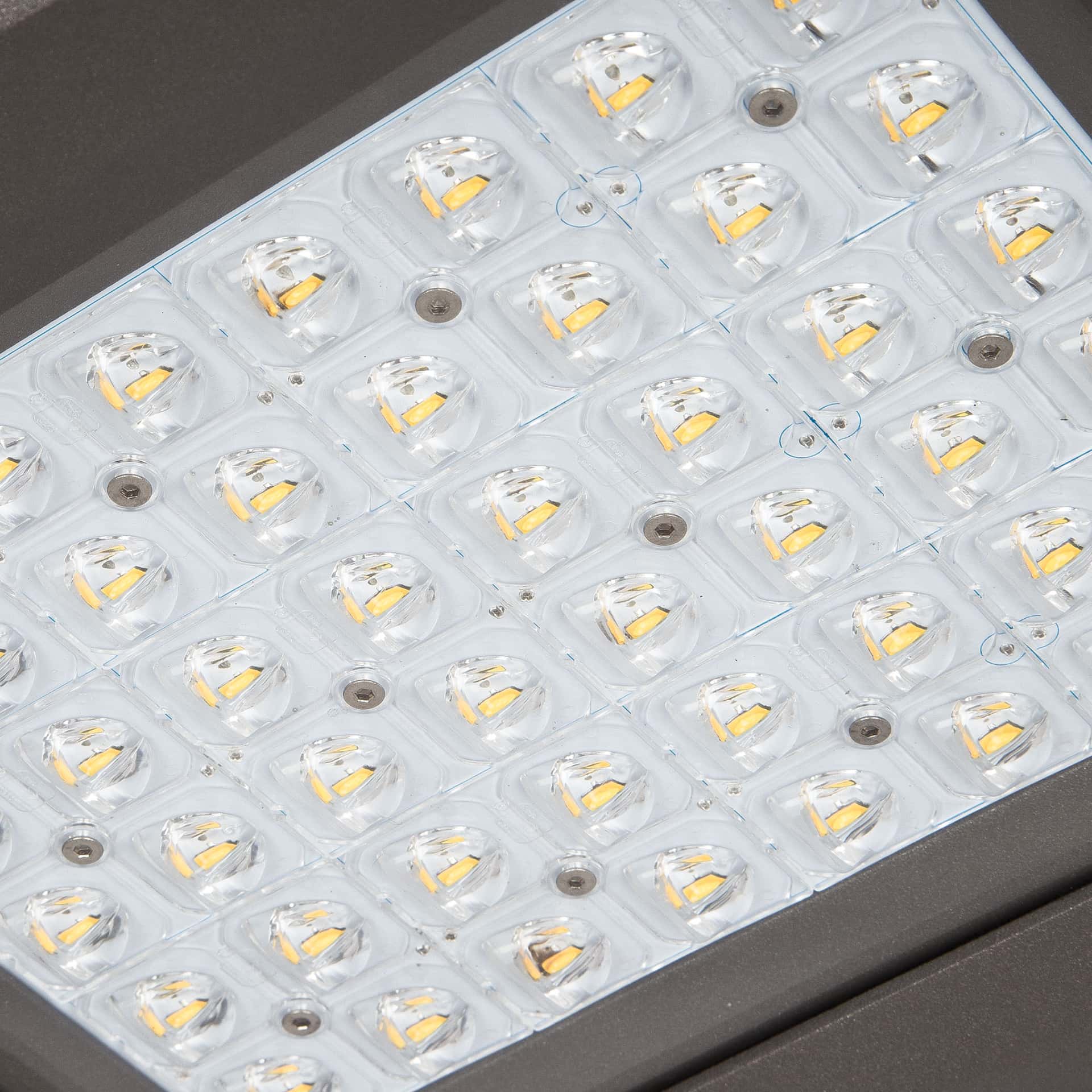

| Number of LEDs | 120 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

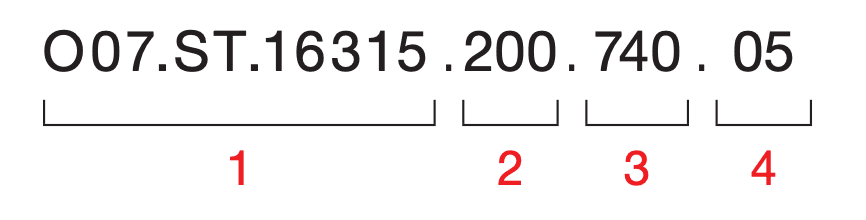

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
Frequently Asked Questions
What is the wattage of Quasar Mega?
Quasar Mega has a power of 175-200W.
What is the protection class of Quasar Mega?
The protection class of Quasar Mega is IP66.
Which certifications and standards does Quasar Mega have?
Quasar Mega carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK09.
What is the product code of Quasar Mega?
The product (stock) code of Quasar Mega is O07.ST.16315.
Where can I download the catalog or PDF of Quasar Mega?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/028-029.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Dire%C4%9Fe%20Monte/Quasar.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/1.%20Quasar%20Mega.zip) buttons on this page.
