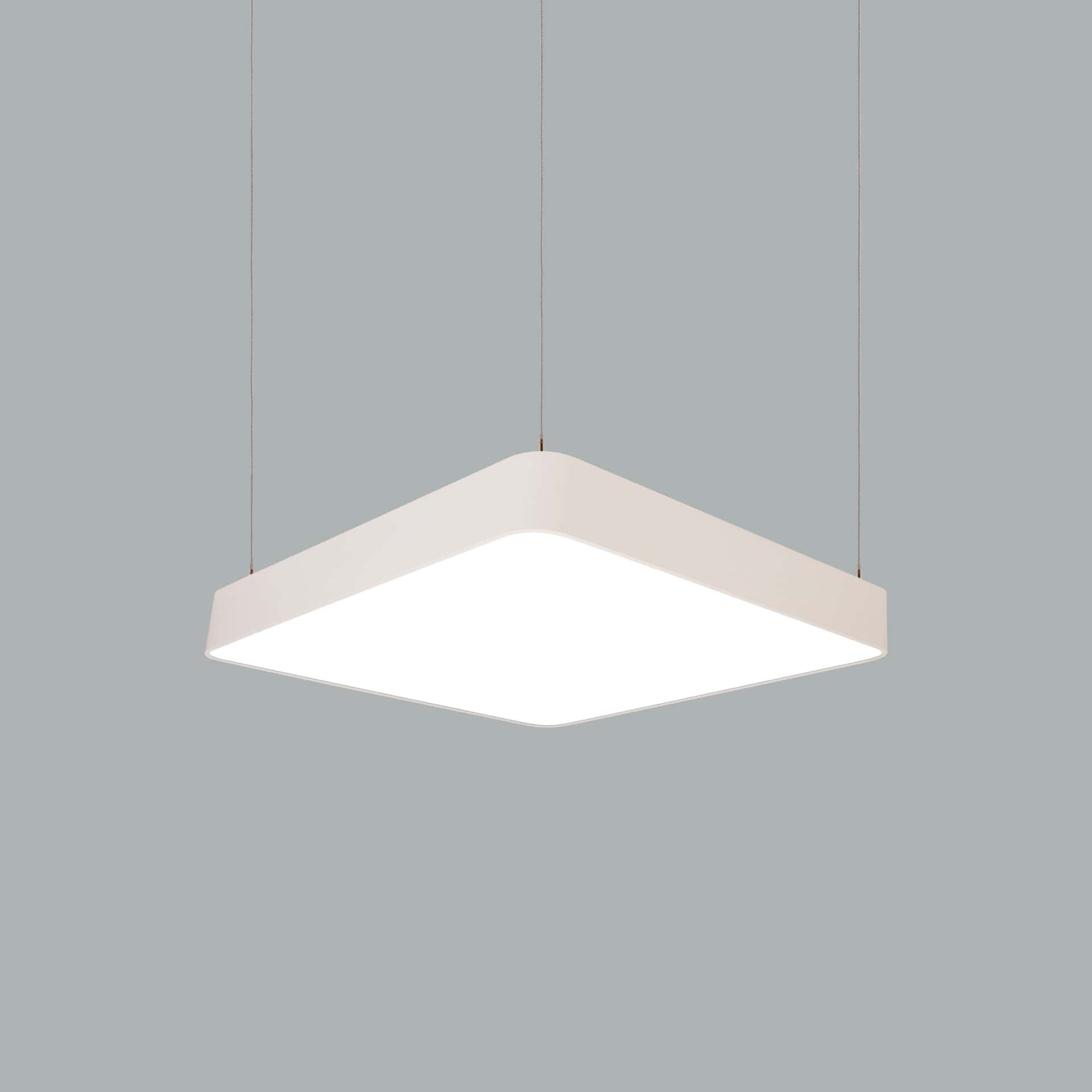

Panos Radius Suspendant
Panos Radius Suspendant is an AVOLUX LED lighting fixture in the Linear Led Panel Series category with a power of 104W and IP40 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 104W |
| Protection Class | IP40 |
| Optical | diffuser |

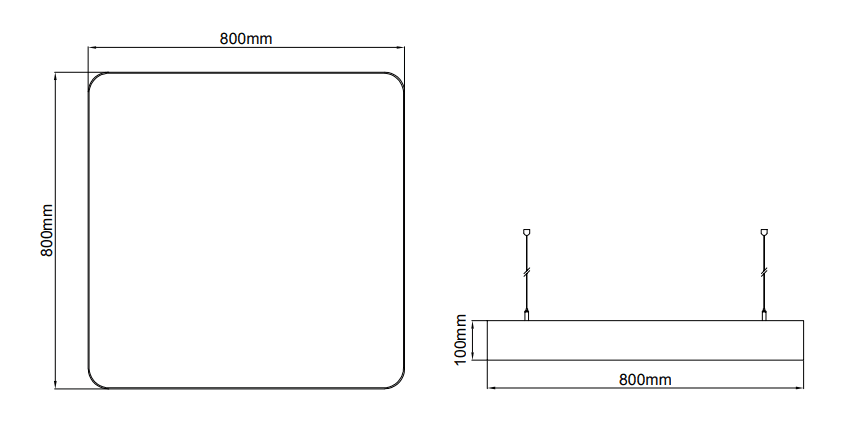

| width, length | 800x800mm |
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.27110.(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 80x80cm |
| Height | 100mm |
| Weight | 6.5kg |
| Mounting method | Stalactite |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 13500lm | 13932lm | 14148lm | 14687lm | 14904lm |
| System efficiency | 130lm/W | 134lm/W | 136lm/W | 141lm/W | 143lm/W |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 114° | 114° | 114° | 114° | 114° |
| Light Angle | Only Direct |
| Working technology of fixtures | |
|---|---|
| System Output | 104W |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP40 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

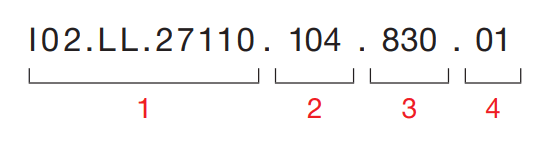

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Control type
Frequently Asked Questions
What is the wattage of Panos Radius Suspendant?
Panos Radius Suspendant has a power of 104W.
What is the protection class of Panos Radius Suspendant?
The protection class of Panos Radius Suspendant is IP40.
Which certifications and standards does Panos Radius Suspendant have?
Panos Radius Suspendant carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Panos Radius Suspendant?
The product (stock) code of Panos Radius Suspendant is I02.LL.27110.
Where can I download the catalog or PDF of Panos Radius Suspendant?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linea/402.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/PANOS%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.27110.rar) buttons on this page.
