Panos Direct/Indirect
Panos Direct/Indirect is an AVOLUX LED lighting fixture in the Linear Led Panel Series category with a power of 72W and IP40 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 72W |
| Protection Class | IP40 |
| Optical | diffuser |

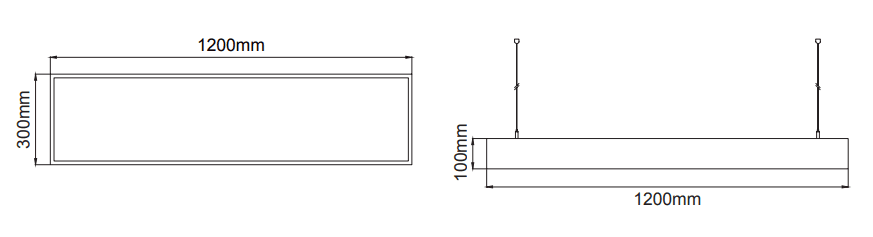

| width, length | 300x1200mm |
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.24310.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 30x120cm |
| Height | 100mm |
| Weight | 4.8kg |
| Mounting method | Stalactite |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 6818lm | 7036lm | 7145lm | 7418lm | 7527lm |
| System efficiency | 95lm/W | 98lm/W | 99lm/W | 103lm/W | 105lm/W |
| Luminous flux Direct | 4853lm | 5008lm | 5086lm | 5280lm | 5358lm |
| Luminous flux Indirect | 1965lm | 2028lm | 2059lm | 2138lm | 2169lm |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 114° | 114° | 114° | 114° | 114° |
| Light Angle | Direct - Indirect |
| Working technology of fixtures | |
|---|---|
| System Output | 72W (44W Direct - 28W Indirect) |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP40 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

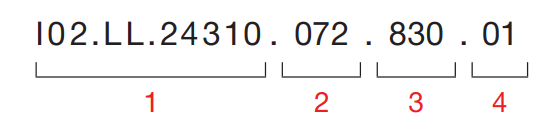

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Control type
Frequently Asked Questions
What is the wattage of Panos Direct/Indirect?
Panos Direct/Indirect has a power of 72W.
What is the protection class of Panos Direct/Indirect?
The protection class of Panos Direct/Indirect is IP40.
Which certifications and standards does Panos Direct/Indirect have?
Panos Direct/Indirect carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP40.
What is the product code of Panos Direct/Indirect?
The product (stock) code of Panos Direct/Indirect is I02.LL.24310.
Where can I download the catalog or PDF of Panos Direct/Indirect?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linea/379.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/PANOS%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.24310.rar) buttons on this page.
