Panel Recessed
Panel Recessed is an AVOLUX LED lighting fixture in the Linear Led Panel Series category with a power of 42W and IP40 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 42W |
| Protection Class | IP40 |
| Optical | diffuser |

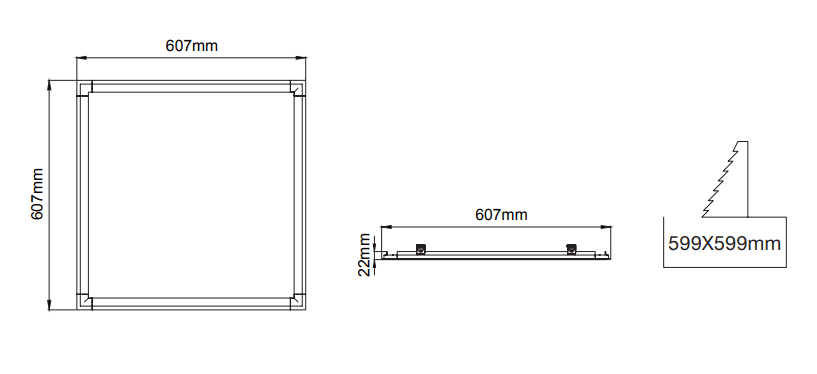

| width, length | 607x607mm |
PANEL creates a light window appearance on walls and ceilings. Suitable for general lighting. It has an aluminum profile structure. Rockwool ceiling and built-in options are available. With its built-in version with the same thinness, it provides ease of application in areas with low plasterboard depth. Maximum efficiency is achieved with the high efficiency LGP diffuser.
| Length (A) | CRI | Order Code | Kelvin | 42W 1050mA lm |
|---|---|---|---|---|
| 607x607mm | CRI>80 | I02.LL.18621 . (...) . (...) . (...) . (... | 2700K | 3752 |
| 3000K | 3844 | |||
| 3500K | 3904 | |||
| 4000K | 4053 | |||
| 5000K | 4112 | |||
| CRI>90 | I02.LL.18621 . (...) . (...) . (...) . (...) | 2700K | 3129 | |
| 3000K | 3218 | |||
| 3500K | 3278 | |||
| 4000K | 3397 |
| Length | Cutting Size | watts | Watts - Driving Current | CRI/Kelvin | CRI/Kelvin | Product Color | Product Color | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 607x607mm |  | 599x599mm | 42 | 42W - 1050mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
Frequently Asked Questions
What is the wattage of Panel Recessed?
Panel Recessed has a power of 42W.
What is the protection class of Panel Recessed?
The protection class of Panel Recessed is IP40.
Which certifications and standards does Panel Recessed have?
Panel Recessed carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class II, IP40.

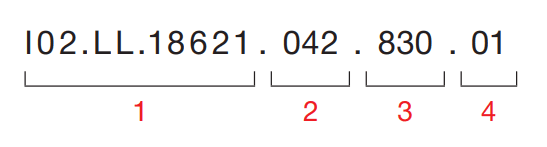

What is the product code of Panel Recessed?
The product (stock) code of Panel Recessed is I02.LL.18621.
Where can I download the catalog or PDF of Panel Recessed?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/linea/339.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/linea/PANEL%20Linea%20Led.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/linea/I02.LL.18621.rar) buttons on this page.
