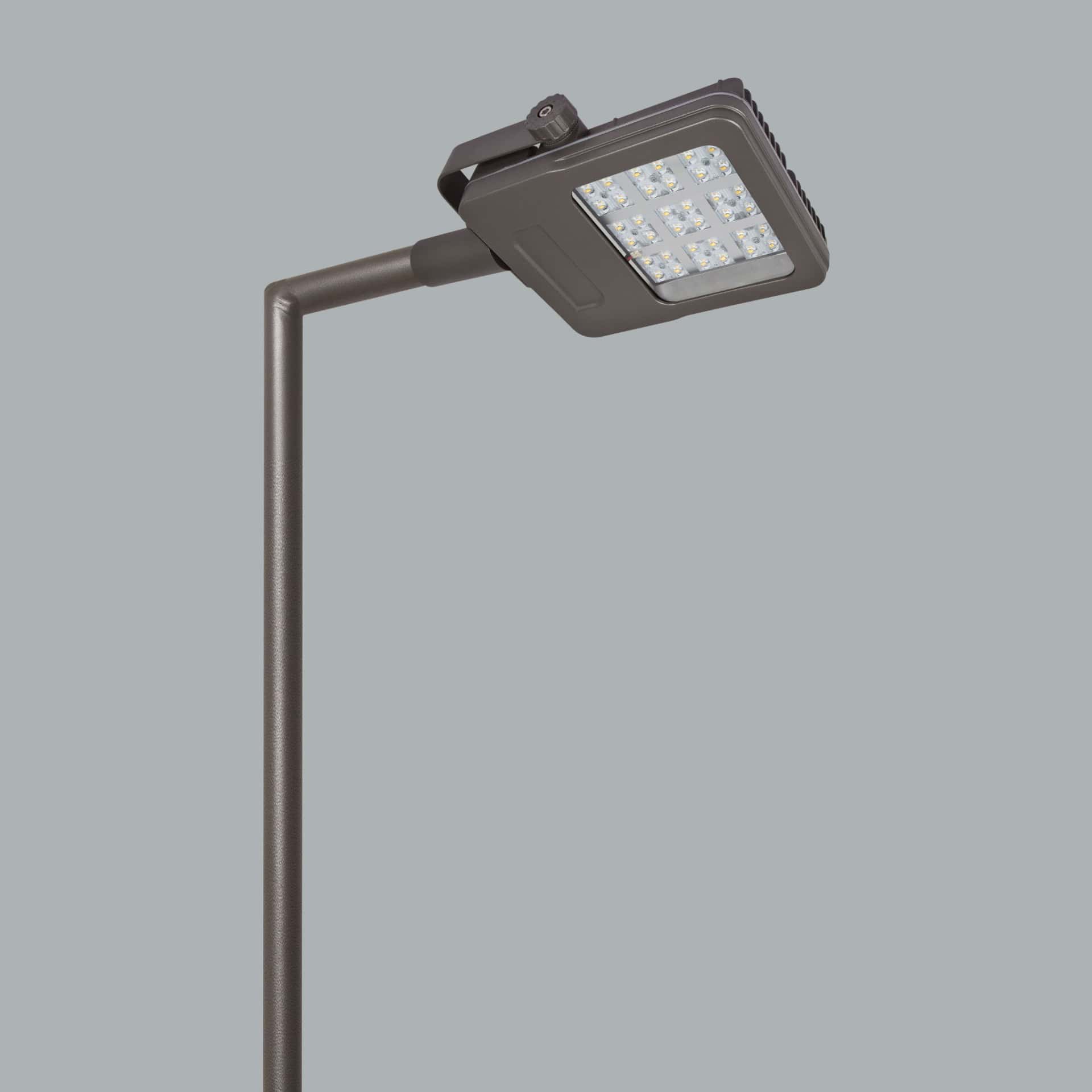

Mini Herkül ST
Mini Herkül ST is an AVOLUX LED lighting fixture in the Pole Mounted Street Fixtures Series category with a power of 40-60-80W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 40-60-80W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
-- LED street lighting fixture.
| Hercules ST/O07.ST.16935 | |
|---|---|
| System Power | 40W |
| Luminaire Output Lumen CRI>70 - 4000K | 5071lm |
| Driving Current | 350mA |

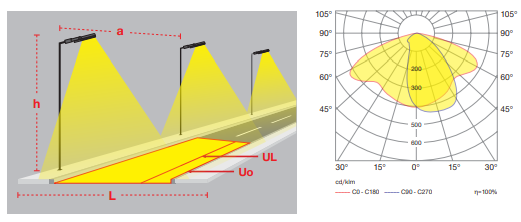

| Mast Span (a) | 34m |
| Mast Height (h) | 6m |
| Road Width (L) | 7m |
| Lighting Class | P2 |
| Optical Type | Maximum pole spacing |
| Hercules ST/O07.ST.16935 | |
|---|---|
| System Power | 60W |
| Luminaire Output Lumen CRI>70 - 4000K | 7496lm |
| Driving Current | 545mA |

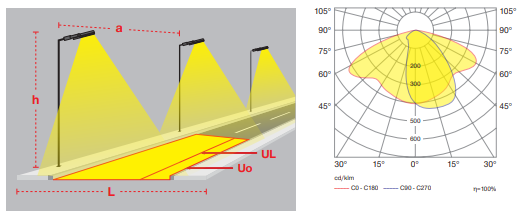

| Mast Span (a) | 41m |
| Mast Height (h) | 8m |
| Road Width (L) | 7m |
| Lighting Class | M5 |
| Optical Type | Maximum pole spacing |
| Hercules ST/O07.ST.16935 | |
|---|---|
| System Power | 80W |
| Luminaire Output Lumen CRI>70 4000K | 9163lm |
| Driving Current | 700mA |
| Mast Span (a) | 38m |
| Mast Height (h) | 10m |
| Road Width (L) | 7m |
| Lighting Class | M4 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.16935.80.740.05 |
| Family Name | Mini Hercules ST |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 280W |
| Number of LEDs | 36 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

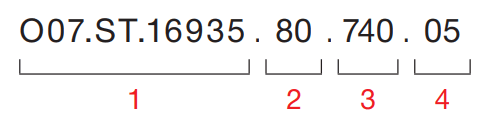

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
Frequently Asked Questions
What is the wattage of Mini Herkül ST?
Mini Herkül ST has a power of 40-60-80W.
What is the protection class of Mini Herkül ST?
The protection class of Mini Herkül ST is IP66.
Which certifications and standards does Mini Herkül ST have?
Mini Herkül ST carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Mini Herkül ST?
The product (stock) code of Mini Herkül ST is O07.ST.16935.
Where can I download the catalog or PDF of Mini Herkül ST?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/092-093.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Dire%C4%9Fe%20Monte/Herku%CC%88l%20ST.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/M%C4%B0N%C4%B0%20HERK%C3%9CL%20ST.zip) buttons on this page.
