Leila Mini Downlight
Leila Mini Downlight is an AVOLUX LED lighting fixture in the Power LED Recessed Series category with a power of 8W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 8W |
| Protection Class | IP44 |
| Shape | built-in |
| Optical | diffuser |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 8W | CRI>80 | I02.PLR.15069 . (..) . (...) . (..) . (..) | 2700K | 625 |
| 3000K | 645 | |||
| 3500K | 693 | |||
| 4000K | 707 | |||
| 5000K | 728 | |||
| CRI>90 | I02.PLR.15069 . (..) . (...) . (..) . (..) | 2700K | 581 | |
| 3000K | 600 | |||
| 3500K | 645 | |||
| 4000K | 658 | |||
| 5000K | X | |||
| CRI>98 | I02.PLR.15069 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |

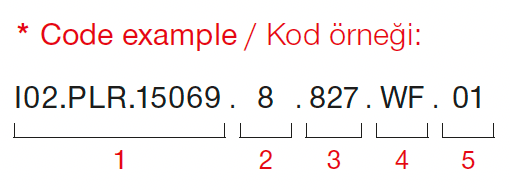

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 8W - 180mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | W.F. | 65° - Wide Flood |  | 01 | white |
| 4 | 4W - 100mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Leila Mini Downlight?
Leila Mini Downlight has a power of 8W.
What is the protection class of Leila Mini Downlight?
The protection class of Leila Mini Downlight is IP44.
Which certifications and standards does Leila Mini Downlight have?
Leila Mini Downlight carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP44.
What is the product code of Leila Mini Downlight?
The product (stock) code of Leila Mini Downlight is I02.PLR.15069.
Where can I download the catalog or PDF of Leila Mini Downlight?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/704.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/downlight/LUMEA%20Downlight.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/Lumea%20Mini%20Downlight%20I02.PLR.15069.rar) buttons on this page.
