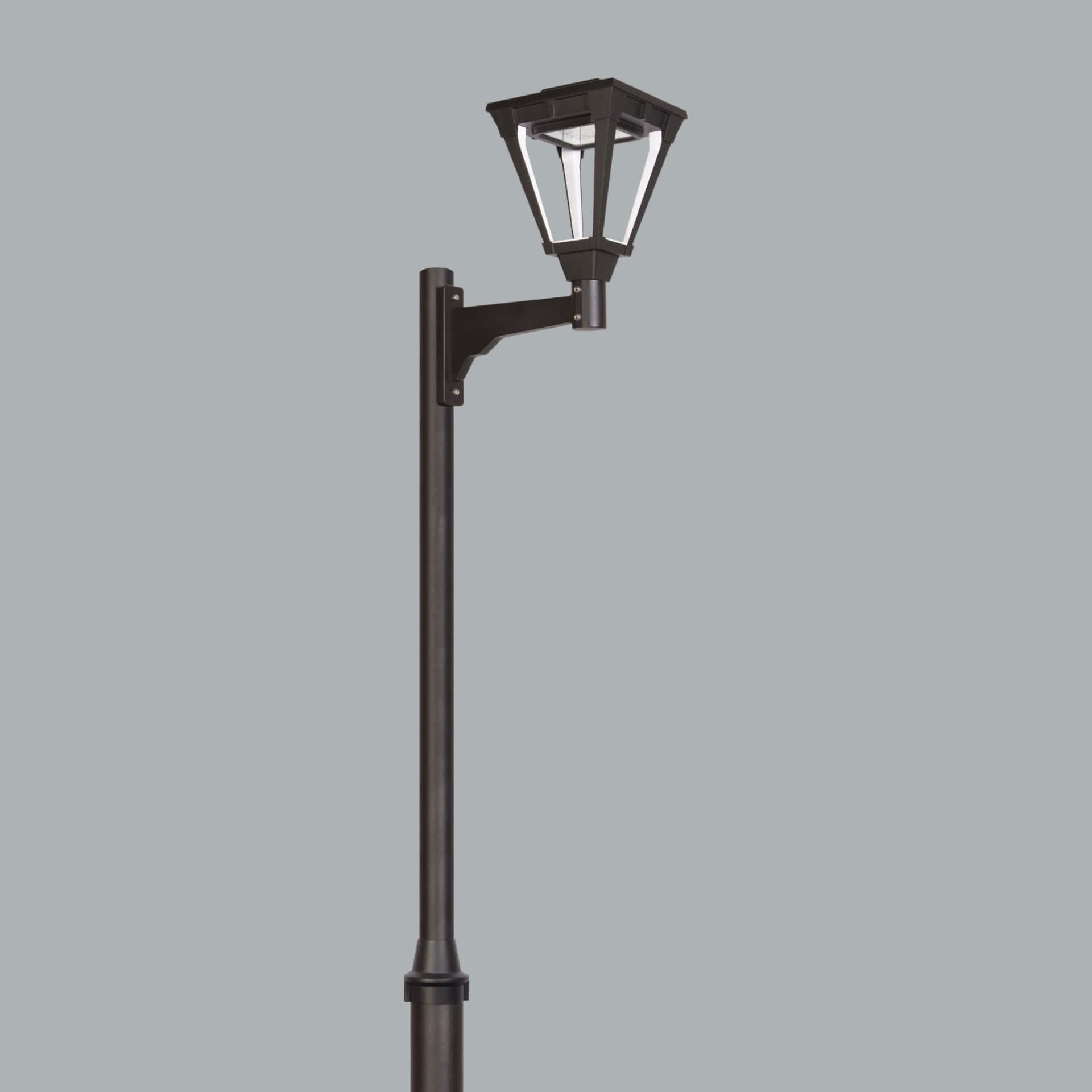

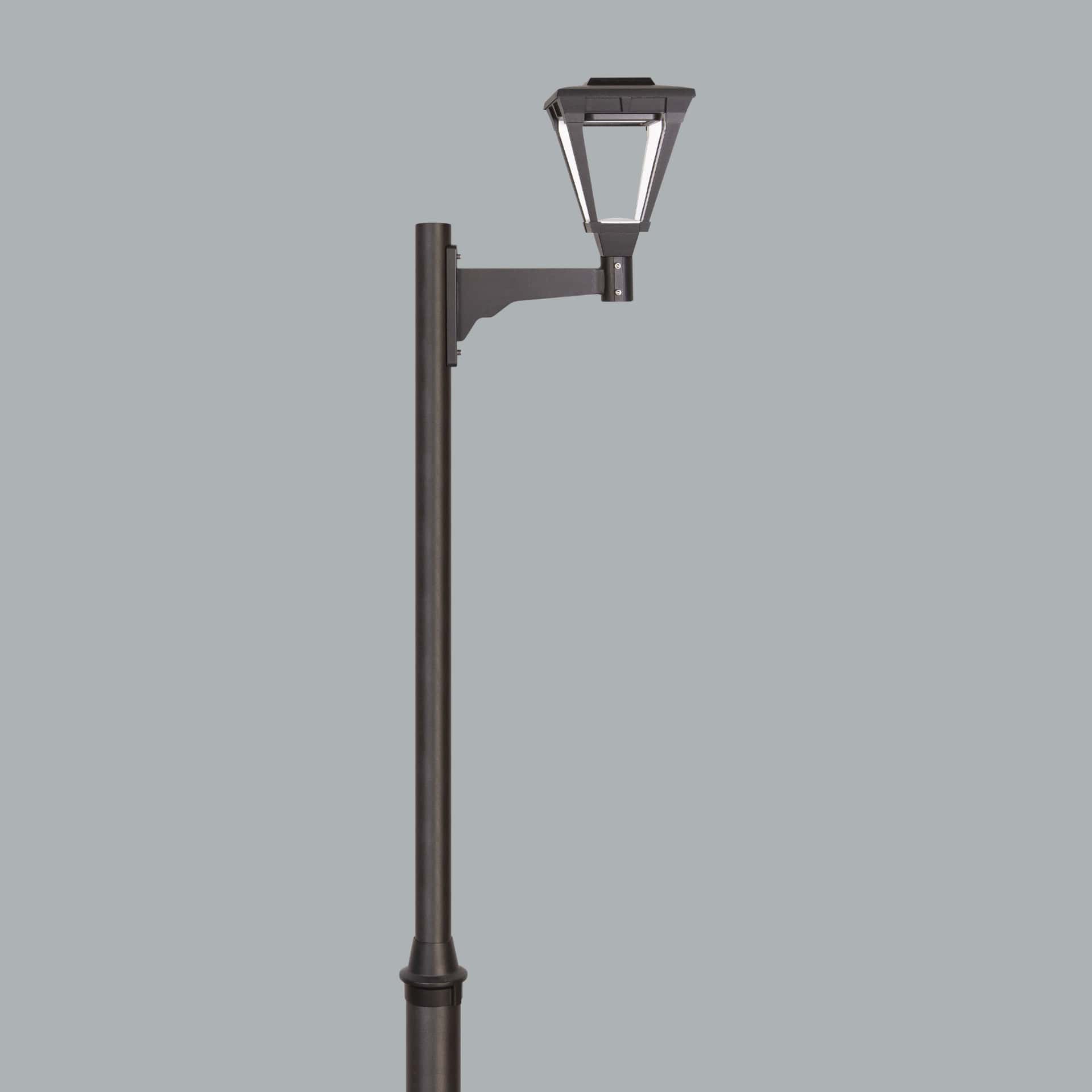

Fener Mini
Fener Mini is an AVOLUX LED lighting fixture in the Pole Mounted Street Fixtures Series category with a power of 20-30W and IP66 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20-30W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
-- LED street lighting fixture.
| Lantern Mini / O07.ST.06975 | |
|---|---|
| System Power | 20W |
| Luminaire Output Lumen CRI>70 - 4000K | 2650lm |
| Driving Current | 750mA |

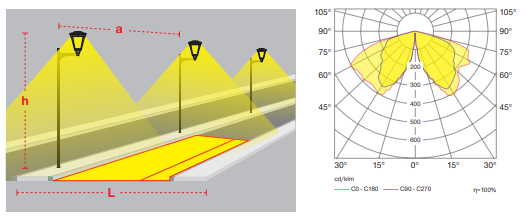

| Mast Span (a) | 12m |
| Mast Height (h) | 3m |
| Road Width (L) | 4m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |
| Lantern Mini / O07.ST.06975 | |
|---|---|
| System Power | 30W |
| Luminaire Output Lumen CRI>70 - 4000K | 3850lm |
| Driving Current | 1100mA |
| Mast Span (a) | 16m |
| Mast Height (h) | 4m |
| Road Width (L) | 6m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.06975.30.740.05 |
| Family Name | Lantern Mini |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 30W |
| Number of LEDs | 20 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

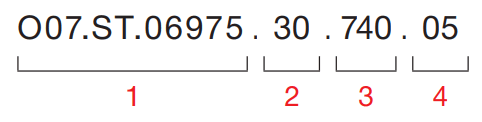

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
Frequently Asked Questions
What is the wattage of Fener Mini?
Fener Mini has a power of 20-30W.
What is the protection class of Fener Mini?
The protection class of Fener Mini is IP66.
Which certifications and standards does Fener Mini have?
Fener Mini carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, Protection class II, IP66, IK08.
What is the product code of Fener Mini?
The product (stock) code of Fener Mini is O07.ST.06975.
Where can I download the catalog or PDF of Fener Mini?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/132-133.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Dire%C4%9Fe%20Monte/Fener%20Mini.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/Fener%20Mini.zip) buttons on this page.
