Detay

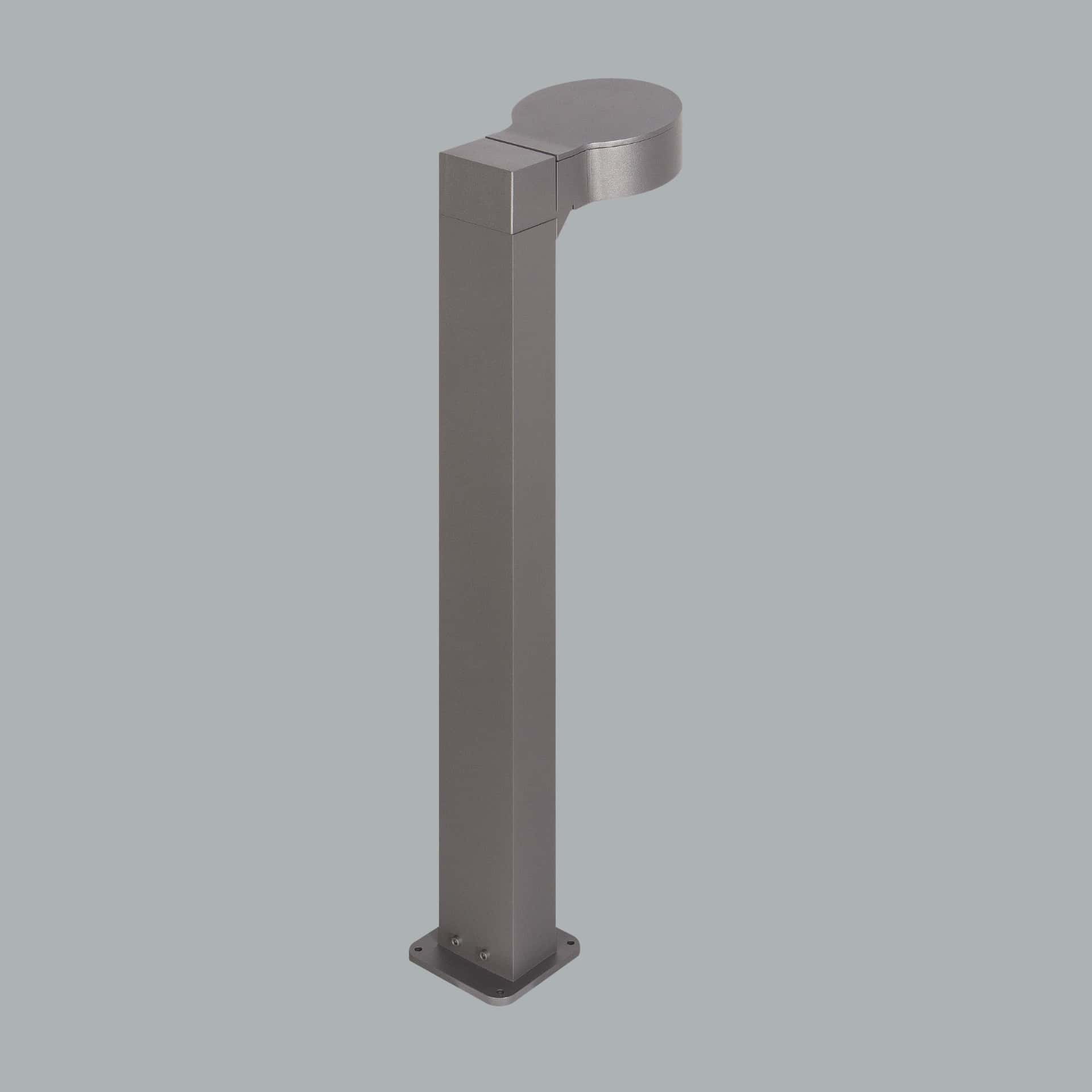

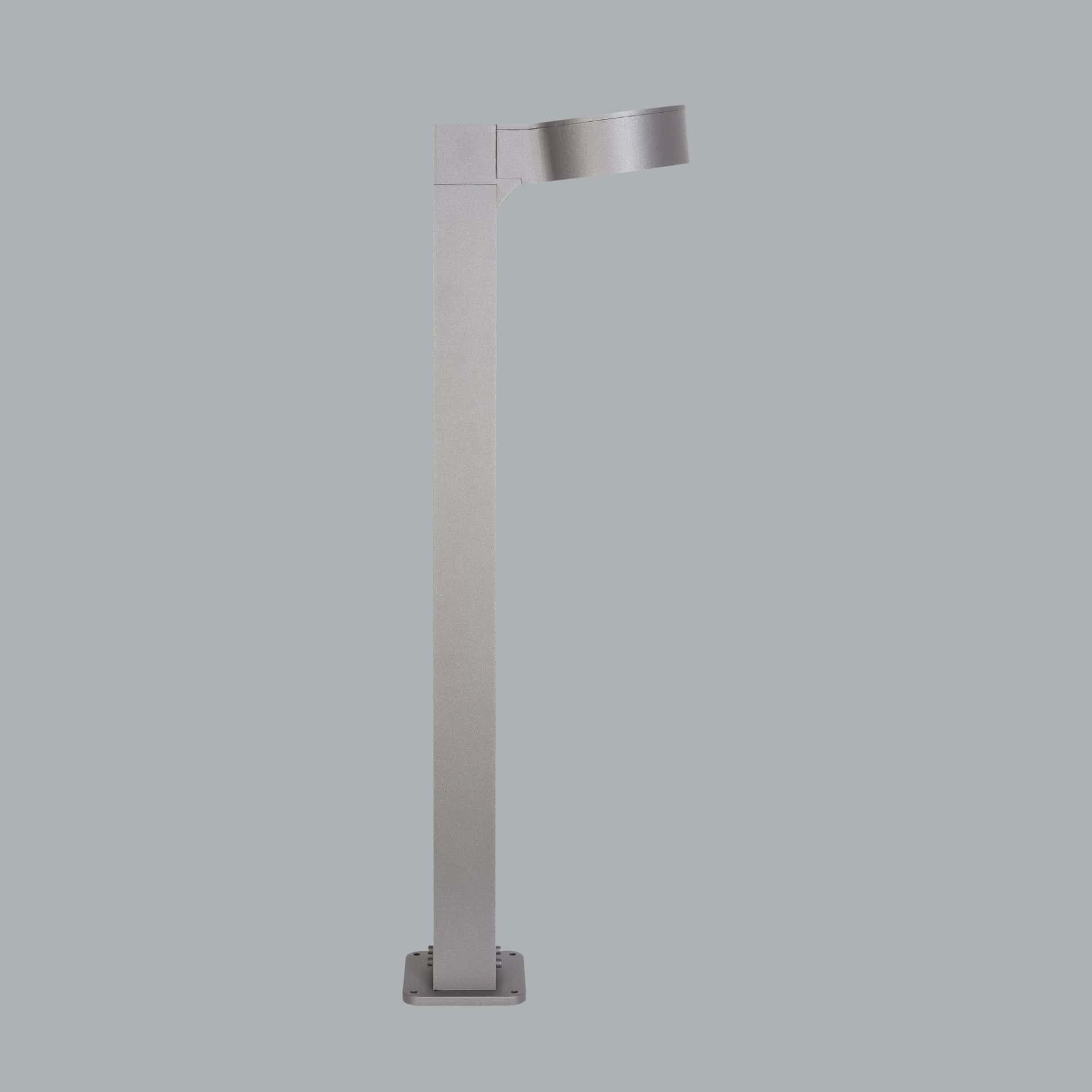

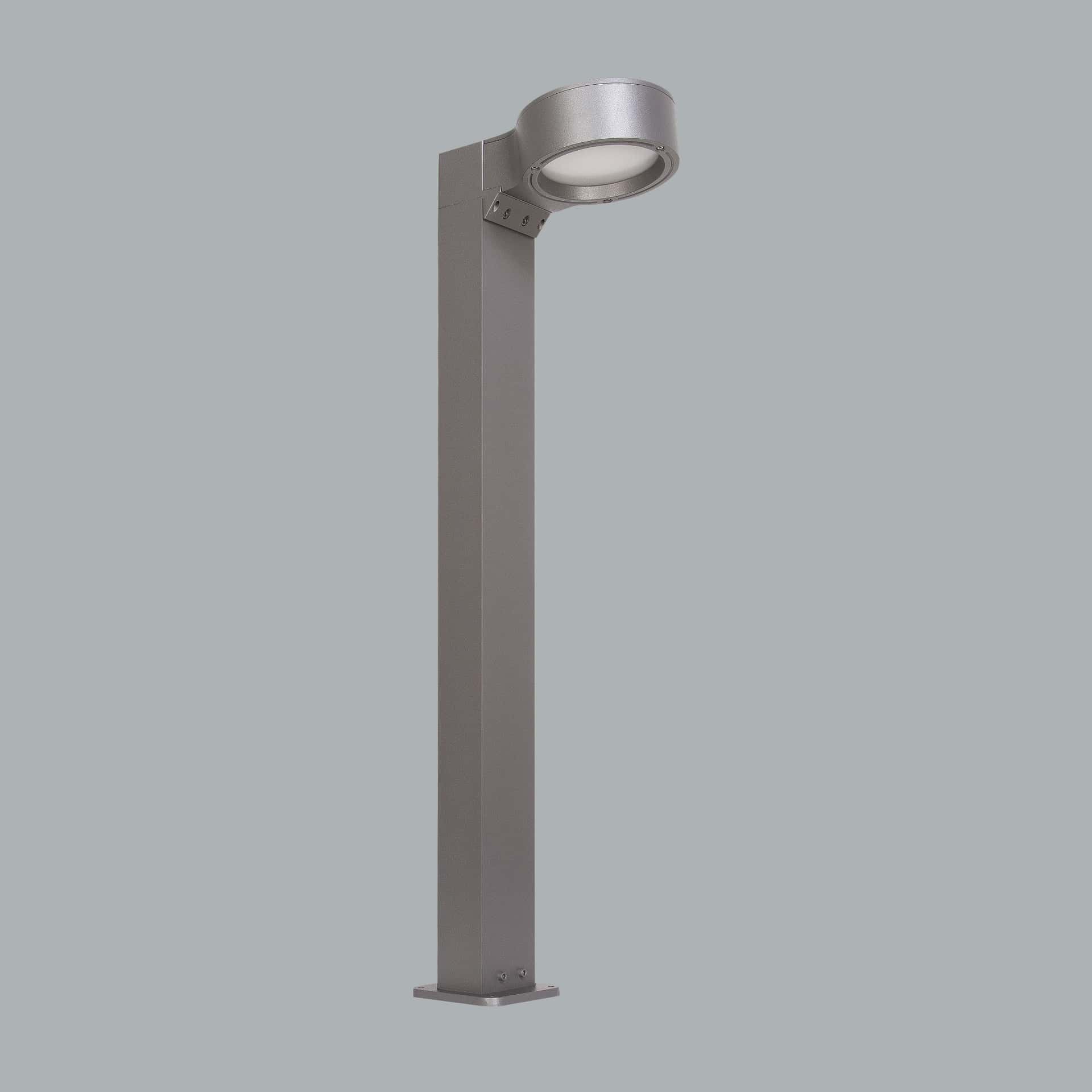

Detay is an AVOLUX LED lighting fixture in the Bollard Series category with a power of 20W and IP65 protection.
Product icons
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 20W |
| Protection Class | IP65 |
| Shape | bollard |
| Optical | diffuser |
DESCRIPTION
-- Corrosion resistant aluminum body.
-- 220-240V / 50-60Hz energy input.
-- The module is suitable for use with LED.
-- 2700K, 3000K, 3500K, 4000K and 5000K color temperature options
available.
-- Thermal shock resistant plexi glass.
-- Silicone gasket providing water resistance.
-- Ultraviolet resistant white, light grey, anthracite gray and black
electrostatic powder coated.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint
body.
-- All external bolts are stainless steel.
-- High LED color compatibility: <3 SDCM
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | O07.BL.07925 . (..) . (...) . (..) . (..) | 2700K | 1990 |
| 3000K | 2051 | |||
| 3500K | 2093 | |||
| 4000K | 2136 | |||
| 5000K | 2200 | |||
| 6500K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 827 | CRI>80 - 2700K |  | 01 | white | ||
| 830 | CRI>80 - 3000K |  | 02 | ral 9010 | ||||
| 835 | CRI>80 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||
 | 06 | special color |

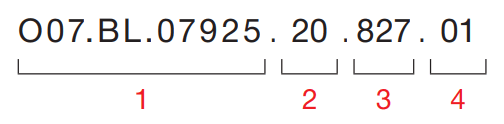

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
Frequently Asked Questions
What is the wattage of Detay?
Detay has a power of 20W.
What is the protection class of Detay?
The protection class of Detay is IP65.
Which certifications and standards does Detay have?
Detay carries the following certifications and standards: PBS, SASO, CB, LVD, EAC, CE, Protection class I, IK07, IP65.
What is the product code of Detay?
The product (stock) code of Detay is O07.BL.07925.
Where can I download the catalog or PDF of Detay?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/outdoor/656.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/Bollard/Detay.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/outdoor/O07.BL.07925.zip) buttons on this page.
