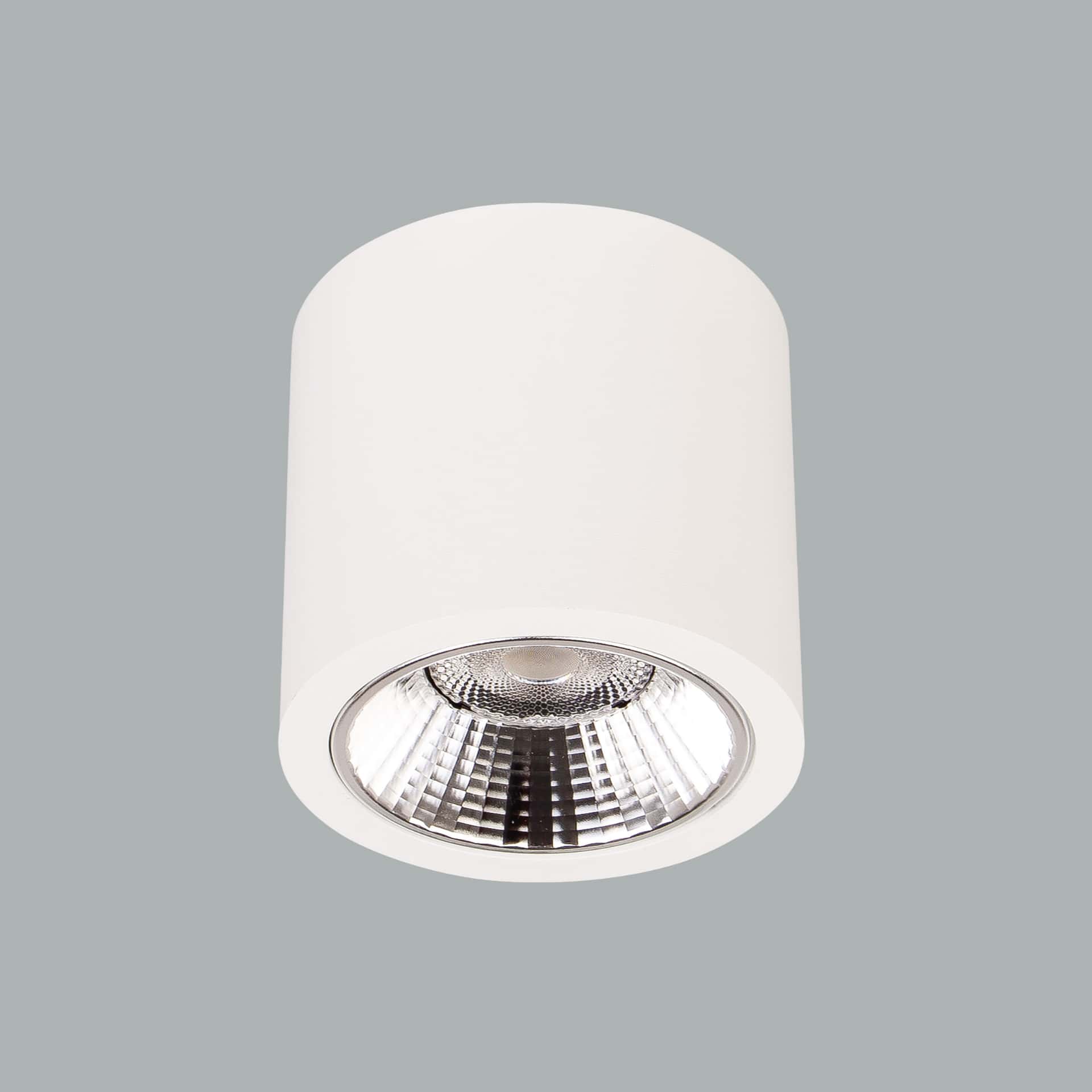

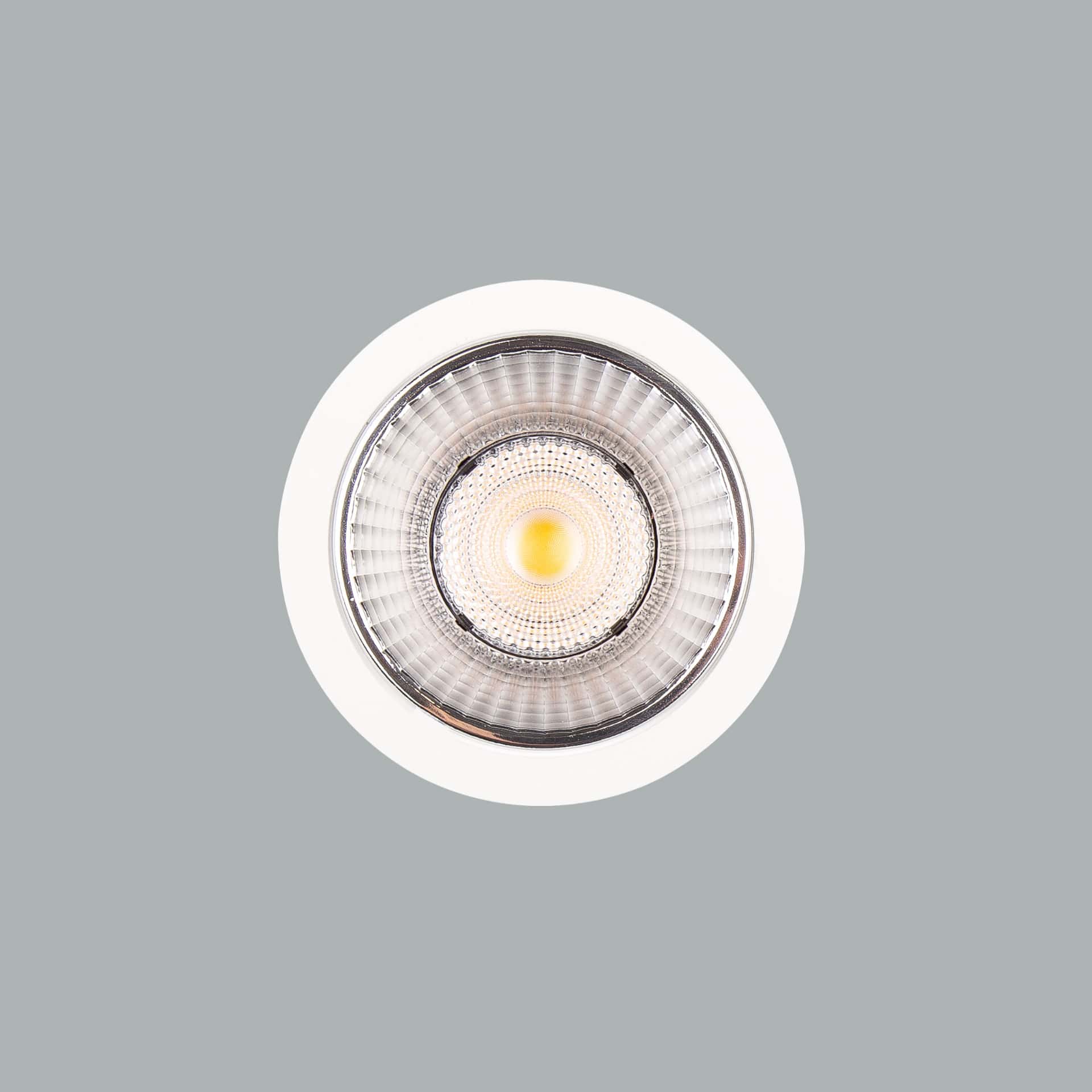

Ares Midi Surface
Ares Midi Surface is an AVOLUX LED lighting fixture in the COB Led Surface Mounted Series category with a power of 14W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 14W |
| Protection Class | IP44 |
| Shape | surface mounted |
| Optical | Lens |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 14W | CRI>80 | I01.MLS.50840 . (..) . (...) . (..) . (..) | 2700K | 1724 |
| 3000K | 1727 | |||
| 3500K | 1741 | |||
| 4000K | 1758 | |||
| 5000K | 1772 | |||
| CRI>90 | I01.MLS.50840 . (..) . (...) . (..) . (..) | 2700K | 1603 | |
| 3000K | 1618 | |||
| 3500K | 1623 | |||
| 4000K | 1641 | |||
| 5000K | X | |||
| CRI>98 | I01.MLS.50840 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |

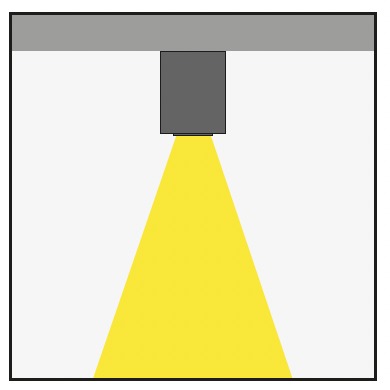

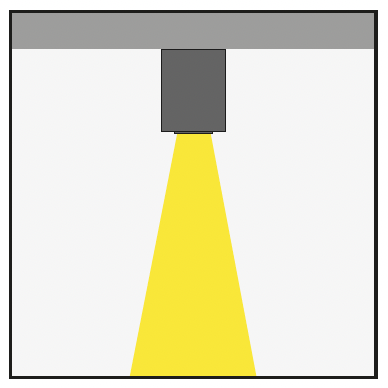

| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 14W - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SP | 17° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | M.E. | 23° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | FL | 34° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | W.F. | 55° - Wide Flood |  | 04 | gray | ||

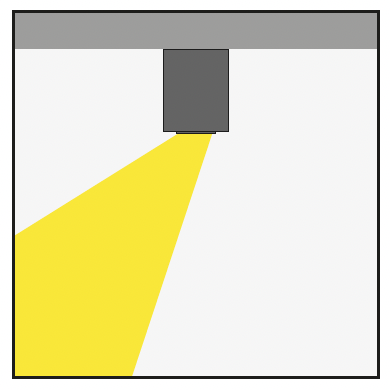

| 850 | CRI>80 - 5000K |  | H.F. | Half-Batwing |  | 05 | dark gray | ||||
 | 06 | special color |

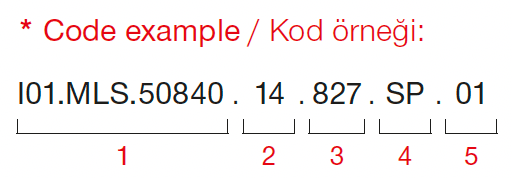

- Luminaire code
- Strength
- Kelvin

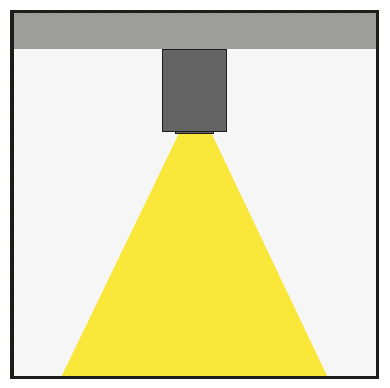

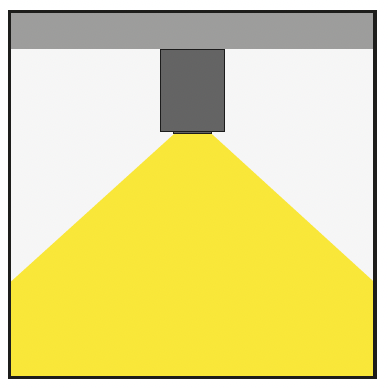

- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Ares Midi Surface?
Ares Midi Surface has a power of 14W.
What is the protection class of Ares Midi Surface?
The protection class of Ares Midi Surface is IP44.
Which certifications and standards does Ares Midi Surface have?
Ares Midi Surface carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP44.
What is the product code of Ares Midi Surface?
The product (stock) code of Ares Midi Surface is I01.MLS.50840.
Where can I download the catalog or PDF of Ares Midi Surface?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/541.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/surface/ARES%20Surface_yuvarlak.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/ARES%20M%C4%B0D%C4%B0%20SURFACE%2BI01.MLS.50840.rar) buttons on this page.
