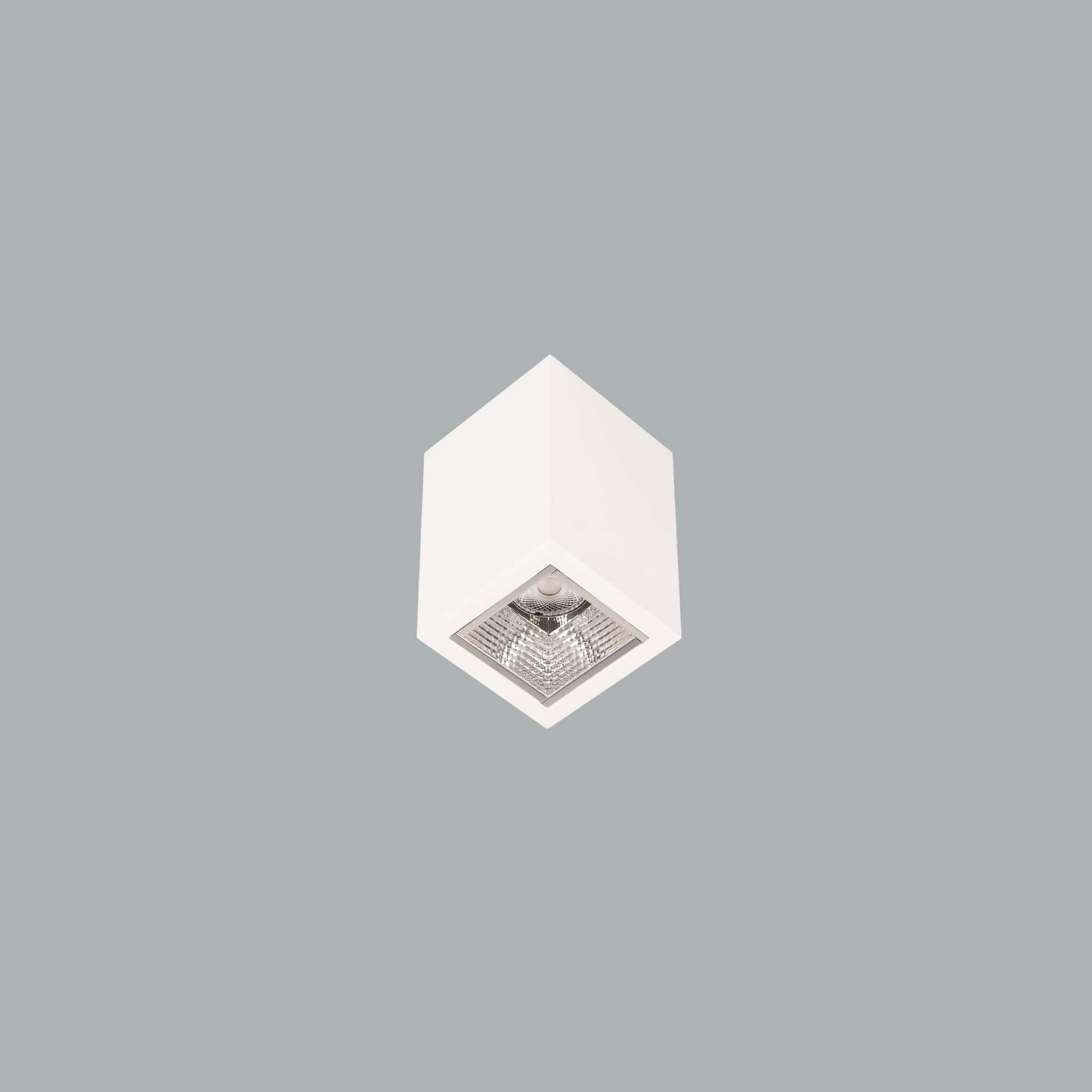

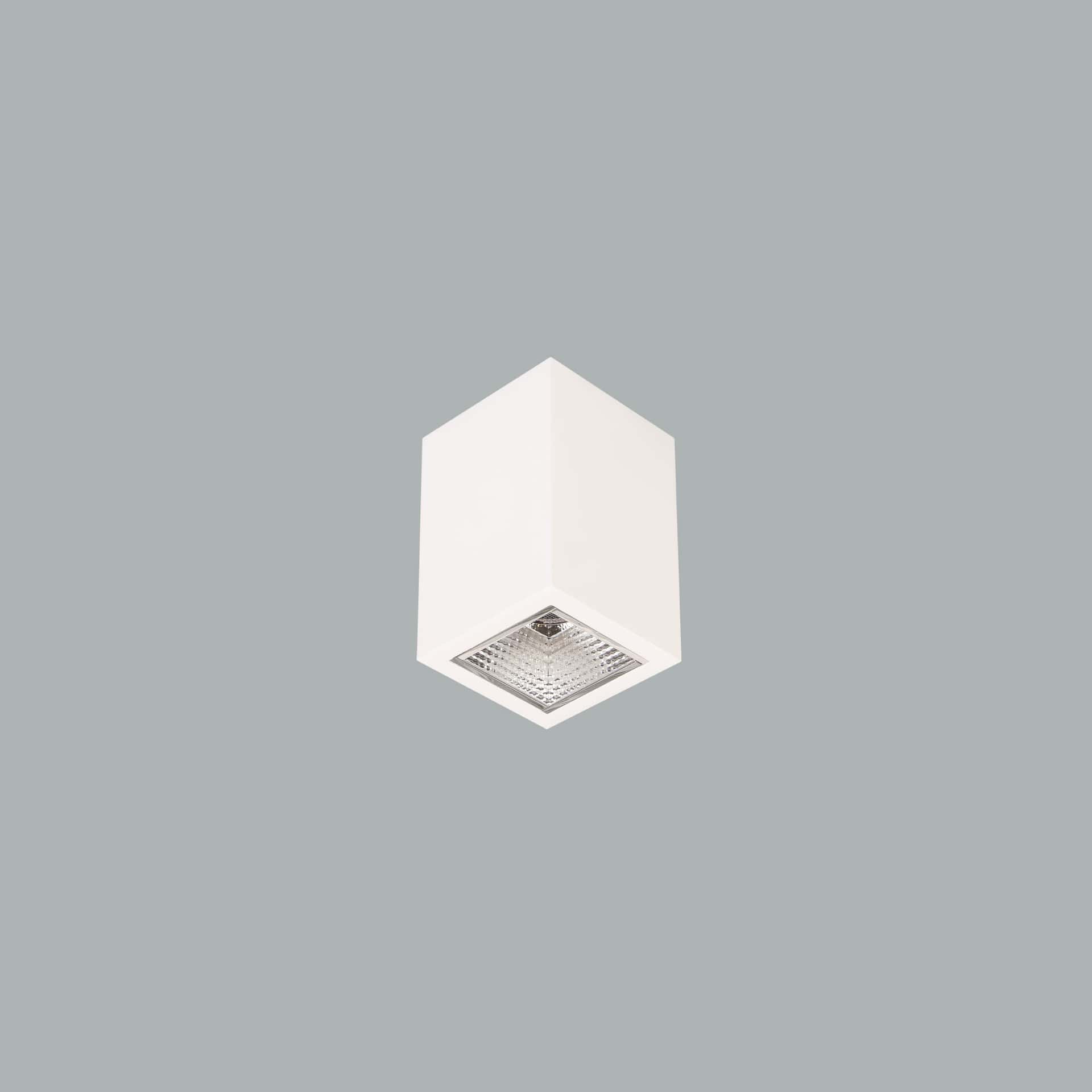

Ares Micro Surface
Ares Micro Surface is an AVOLUX LED lighting fixture in the COB Led Surface Mounted Series category with a power of 6W and IP44 protection.
| Input Voltage | 220-240V / 50-60Hz |
|---|---|
| Wattage | 6W |
| Protection Class | IP44 |
| Shape | surface mounted |
| Optical | Lens |
-- Aluminum injection body.
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 6W | CRI>80 | I01.MLS.50930 . (..) . (...) . (..) . (..) | 2700K | 1092 |
| 3000K | 1102 | |||
| 3500K | 1115 | |||
| 4000K | 1126 | |||
| 5000K | 1131 | |||
| CRI>90 | I01.MLS.50930 . (..) . (...) . (..) . (..) | 2700K | 1014 | |
| 3000K | 1025 | |||
| 3500K | 1039 | |||
| 4000K | 1051 | |||
| 5000K | X | |||
| CRI>98 | I01.MLS.50930 . (..) . (...) . (..) . (..) | 2700K | X | |
| 3000K | X | |||
| 4000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6W - 150mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | SP | 17° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | M.E. | 23° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | FL | 34° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | W.F. | 55° - Wide Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K |  | H.F. | Half-Batwing |  | 05 | dark gray | ||||
 | 06 | special color |

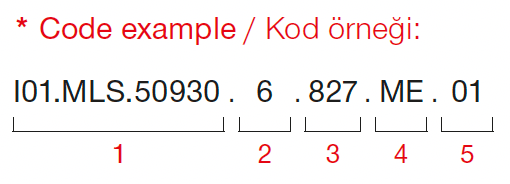

- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Frequently Asked Questions
What is the wattage of Ares Micro Surface?
Ares Micro Surface has a power of 6W.
What is the protection class of Ares Micro Surface?
The protection class of Ares Micro Surface is IP44.
Which certifications and standards does Ares Micro Surface have?
Ares Micro Surface carries the following certifications and standards: SASO, CB, LVD, EAC, CE, Protection class I, IP44.
What is the product code of Ares Micro Surface?
The product (stock) code of Ares Micro Surface is I01.MLS.50930.
Where can I download the catalog or PDF of Ares Micro Surface?
You can download it with the 'DOWNLOAD PRODUCT PDF' (https://avolux.com/media/pdf/549.pdf), 'DOWNLOAD PRODUCT FAMILY PDF' (https://avolux.com/media/downloads/surface/ARES%20Surface_kare.pdf), 'DOWNLOAD LDT' (https://avolux.com/media/downloads/LDT/indoor/ARES%20M%C4%B0CRO%20SURFACE%2BI01.MLS.50930.rar) buttons on this page.
