Shadow
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 3W |
| Protection Class | IP54 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
Shadow series provides excellent effect lighting.
Thanks to extra narrow and radial optic options, window
It is preferred in many points such as frames and building facades.
The body is made of aluminum injection and the mounting base is
Thanks to its easy application. All external screws are stainless.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 3W | CRI>80 | O07.WA.07910 . (..) . (...) . (..) . (..) | 2700K | 168 |
| 3000K | 172 | |||
| 3500K | 177 | |||
| 4000K | 180 | |||
| 5000K | 183 | |||
| 6500K | 185 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 8W | 827 | CRI>80 - 2700K |  | W.F. | Wide Flood |  | 01 | white | ||
| 3 | 3W | 830 | CRI>80 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K |  | 03 | black | |||||||
| 840 | CRI>80 - 4000K |  | 04 | gray | |||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

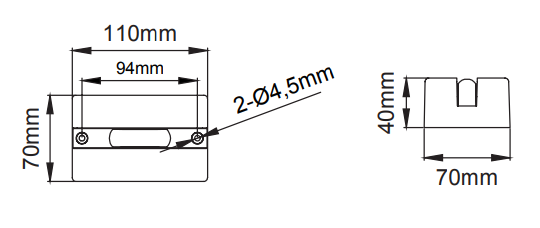

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
